Webbsi, Program – Emerson Process Management ControlWave XFC User Manual
Page 104

F-2 / Appendix F
CI-ControlWave XFC

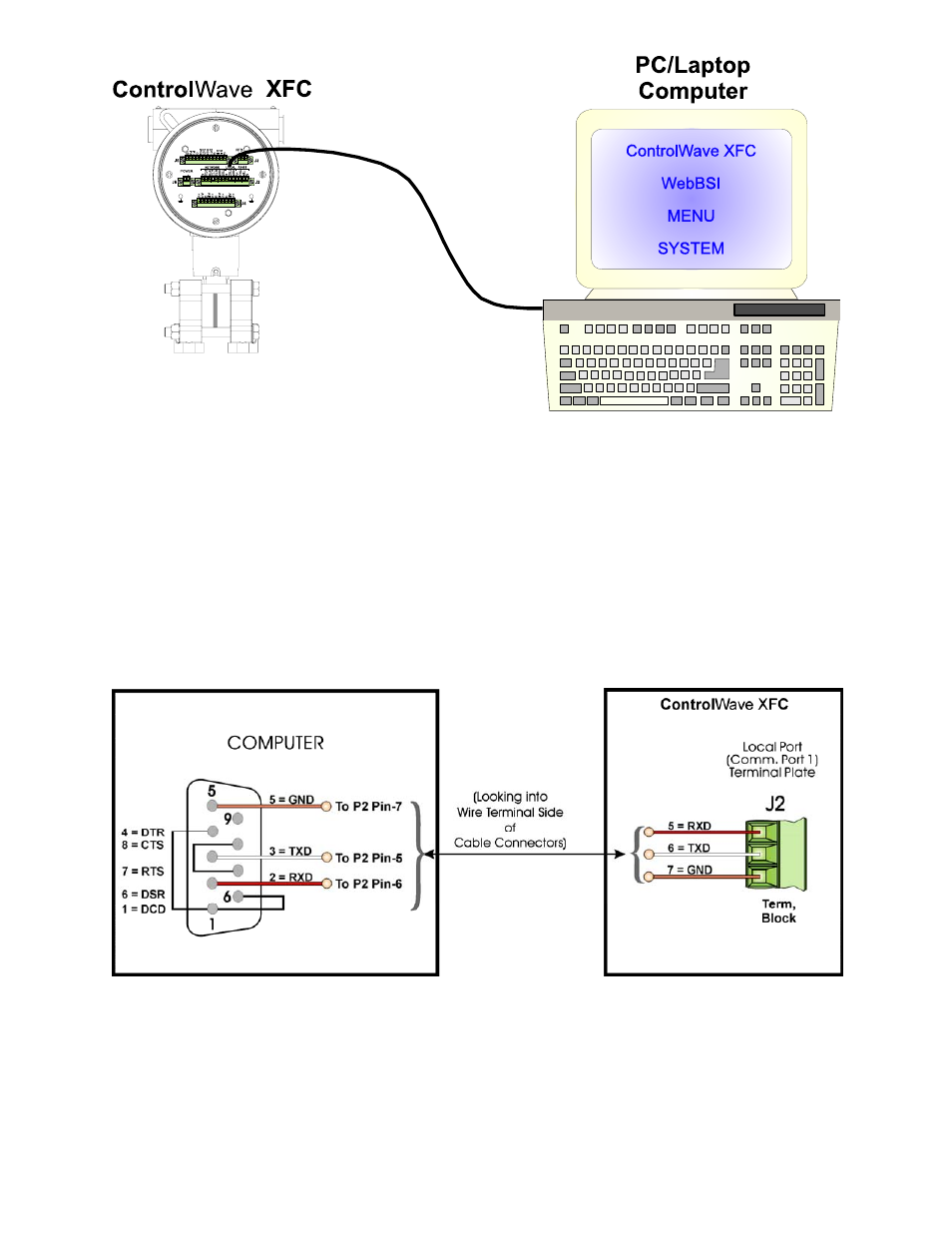

Figure F-1 - ControlWave XFC
Connected to PC via the Local Communications Cable
F.2.1 Communication Connections
The ControlWave XFC communicates with the PC through the Local Port as shown in
Figures F-1 & F-2 or through the Network if configured. The Local Port has been provided
specifically for installation/startup and on-site configuration and data collection.
Local communications between the ControlWave XFC and the PC is provided over a
standard ControlWave null-modem cable.
Figure F-2 - ControlWave XFC Pc to Local Port Cable Connection Diagram
Connector J2 on the ControlWave XFC Terminal Plate
F.3 WebBSI PROGRAM STARTUP
Ensure that the Local Communications Cable connections (at both the ControlWave XFC
& the PC) are secure.
