MotionWorks+™ Scope
51

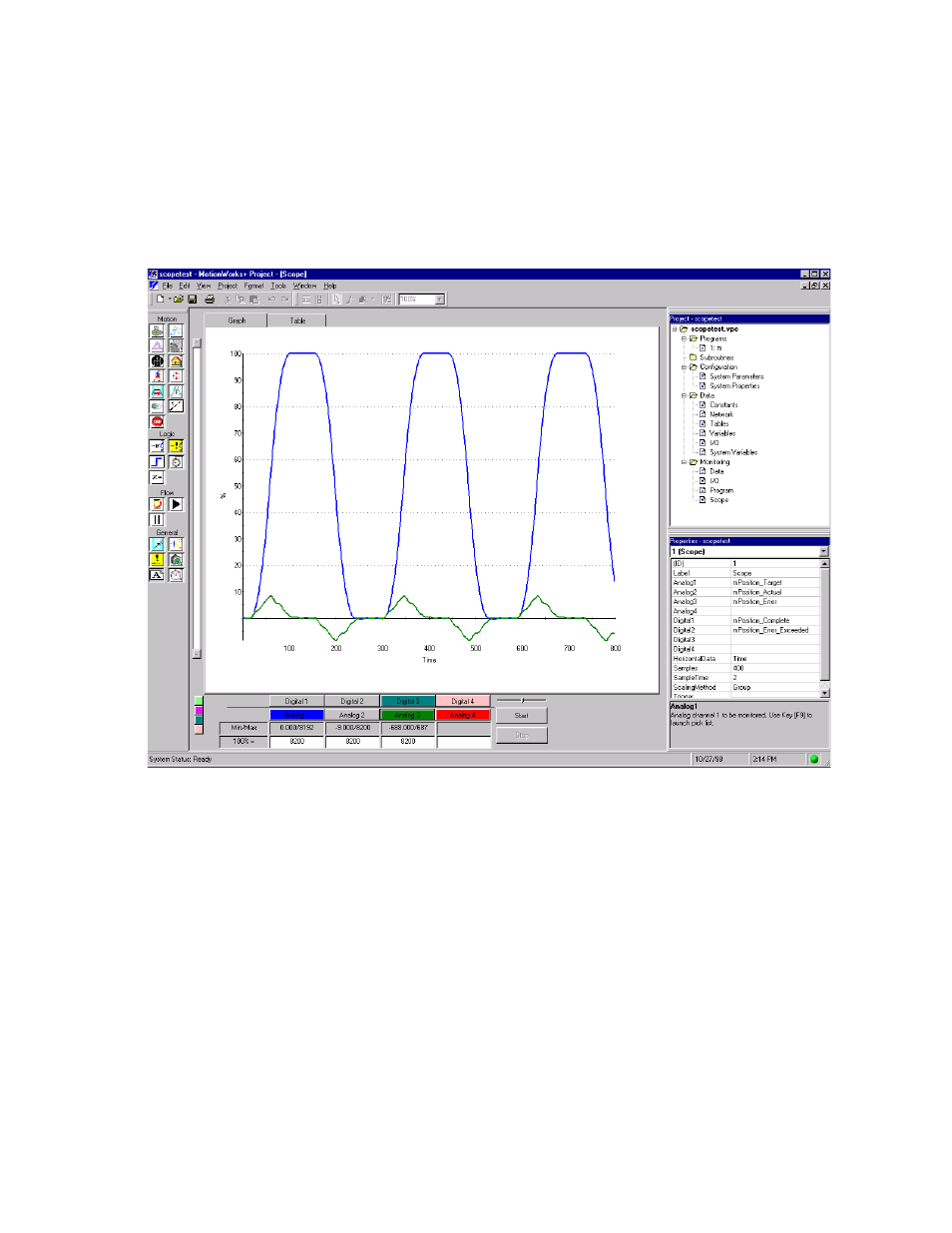

1.7 Scope
Accessibility
To view the scope display, select
• From the Main Menu > Project > Monitoring > Scope
• From the Project Explorer > Monitoring > Scope
The Scope displays recorded data. Choose data to be recorded and duration in the
properties window. The Scope has the capability to display up to eight separate data
elements.
There are tabs at the top of the graph that allow the user to switch between viewing data
graphically or in a table.
The following are the properties for the Scope. These properties are applied when the
user clicks on the start button.
