Programming: Data transfer from CAD files
7.1
CAD viewer and DXF converter screen layout
7
254
TNC 620 | User's Manual
HEIDENHAIN Conversational Programming | 2/2015
7.1
CAD viewer and DXF converter
screen layout
CAD viewer and DXF converter screen layout

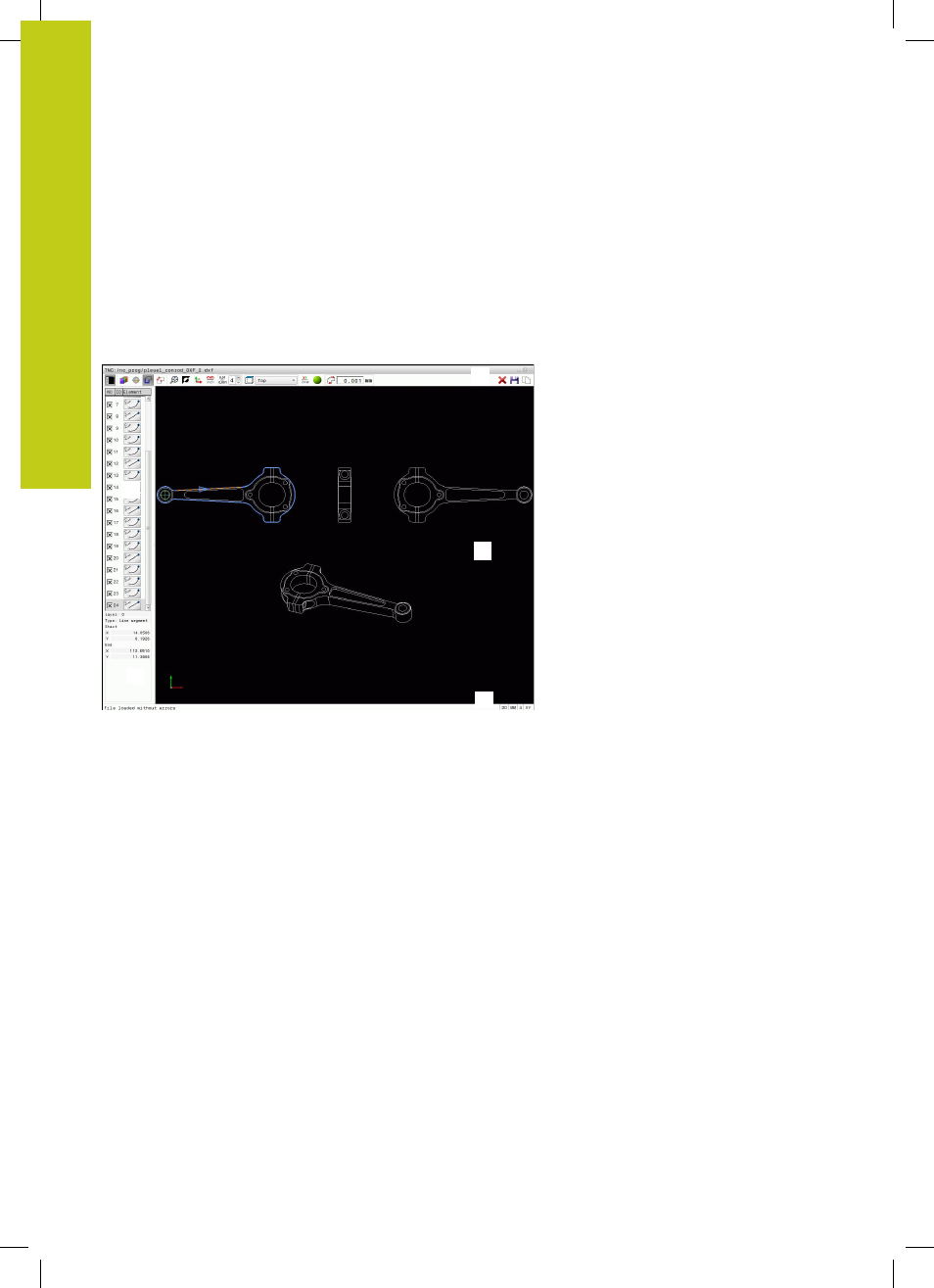

If you open the CAD viewer or DXF converter, the following screen
layout is displayed:
Screen display
1
2
5
4
3
1 Header
2 Graphics window
3 List view window
4 Element information window
5 Footer
