Power-down and connect proper Fibre Channel cabling
The Fibre Channel network interface uses a fiber optical connector located on the rear
panel as shown. Fiber optic cables are provided with your Profile XP system. If these
cables are not used, be sure to refer to Appendix B, “Connector Pin-outs”, for cabling
specifications.

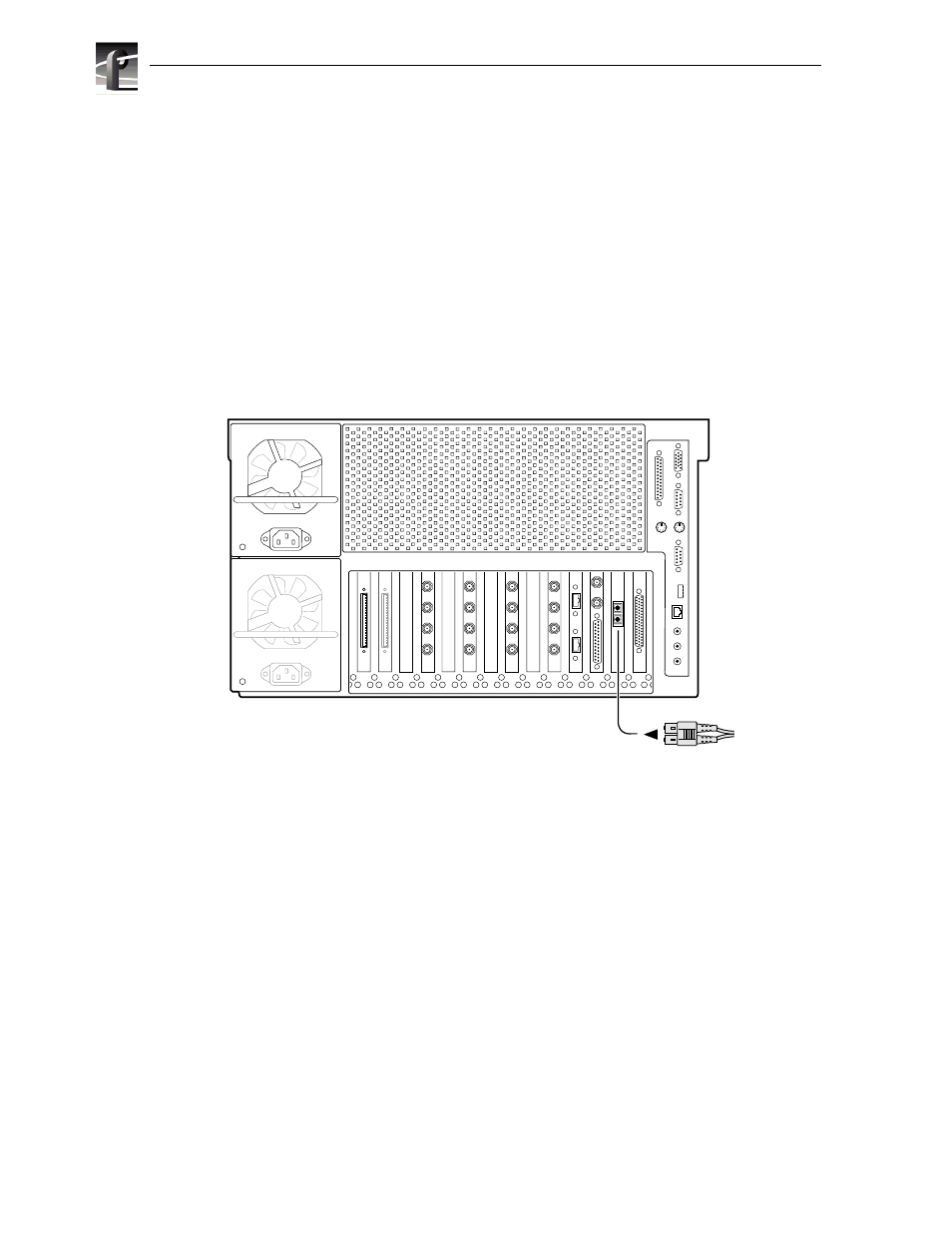

Connect the fiber optic cable between the Fibre Channel switch and the Profile XP
network connectors as shown.
NOTE: Do not force the fiber optic plug into the Fibre Channel board connector as
you may damage the connector, the plug, or both. Make certain the fiber surface is
clean, free of dust or debris, before inserting the connector into the Fibre Channel
board connector.
You can connect your Profile XP systems together using a Fibre Channel switch.
0624-28
Profile XP Media Platform
From Fibre
Channel network
hub or switch.
