Setting up RS-422 remote control in VdrPanel
23 July 2004
Profile XP System Guide
249
3. Choose
Controller | Configure

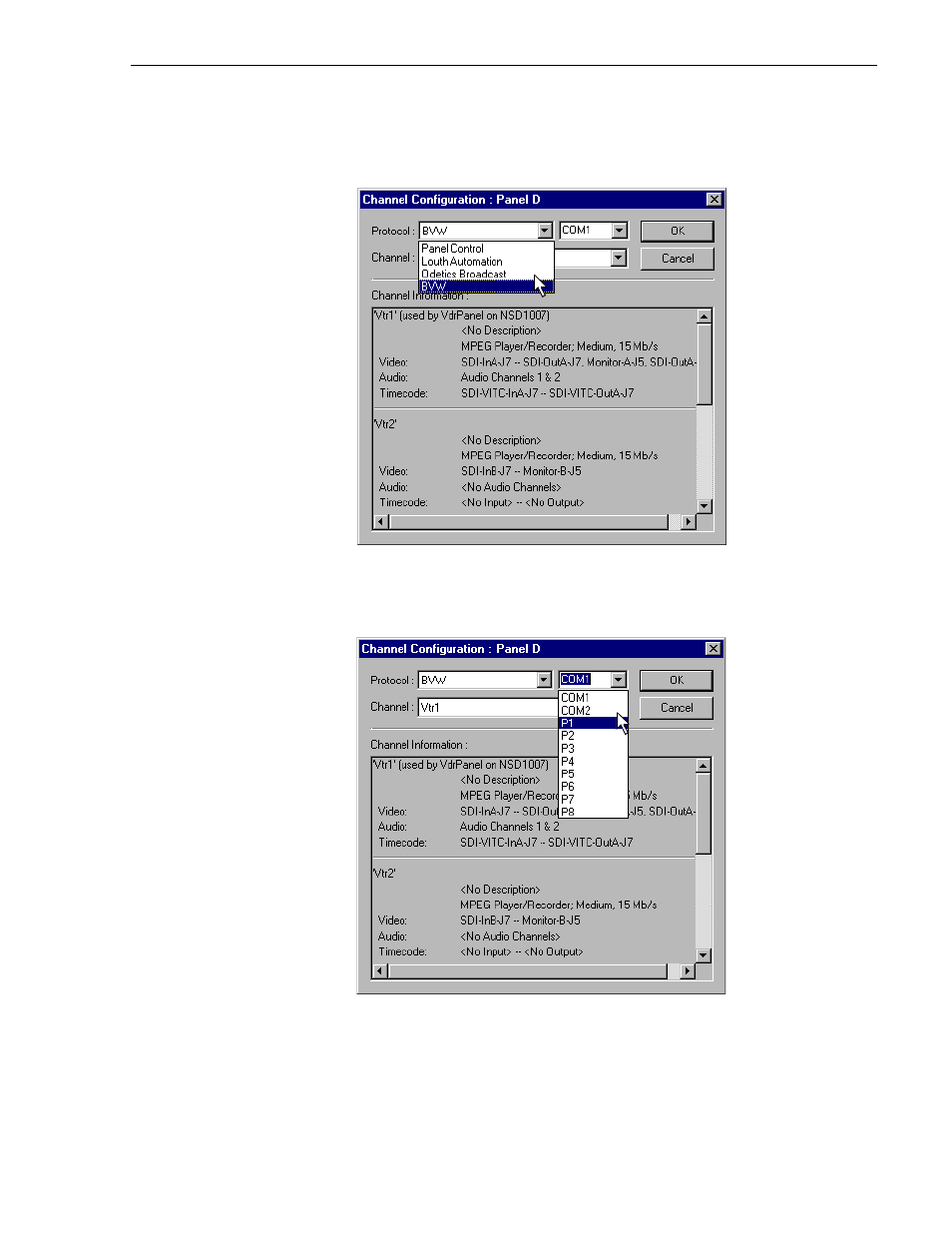

to open the Channel Configuration dialog box, then
select a control protocol using the
Protocol
drop-down list as shown.
4. Select a serial port using the port select drop-down list as shown. COM1 and
COM2 are RS-232 ports on the Profile XP rear panel. P1 through P8 are RS-422
ports on the I/O Panel.
