Select audio output format
23 July 2004 Profile XP System Guide 201
Select audio output format
There are no output routing selections to make if you are using Analog or AES/EBU
audio. These formats are selected automatically when the system sees the audio interface
attached.
If you are using embedded audio, you must make embedded audio selections as follows.
To select embedded audio output selections:
1. Click Audio Routing in the Configuration Manager window. The Audio Routing
dialog box appears.

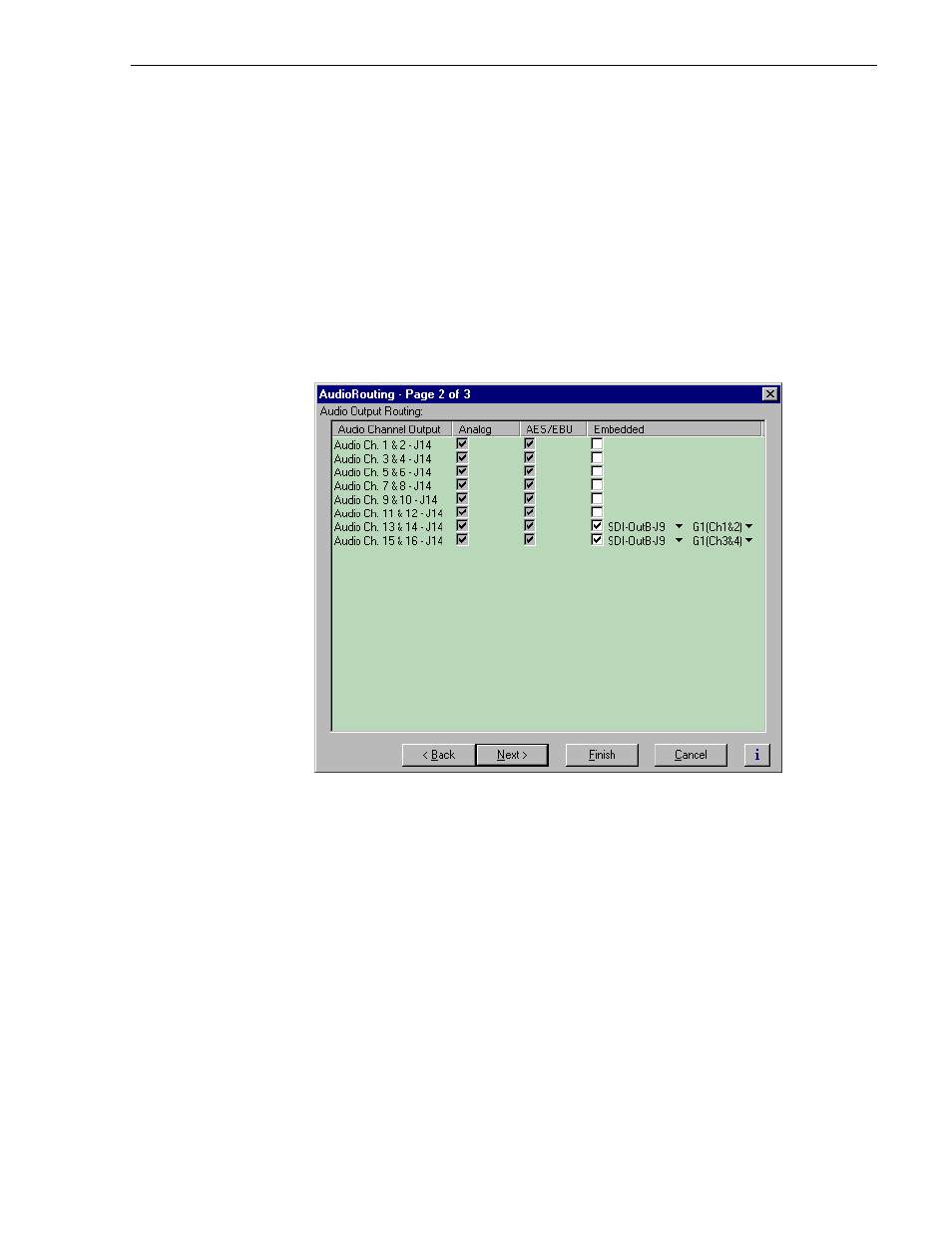

2. Click Next to navigate to Page 2 of the Audio Routing dialog box as shown.
3. Select the check box in the Embedded column for all Profile XP audio channels that
require embedded audio.
