Setting up the VITC reader on a Video Input
23 July 2004 Profile XP System Guide 221
Setting up the VITC reader on a Video Input
NOTE: This page appears only if the system reference source is Reference Black
and one or more standard definition SDI boards are installed. HD SDI inputs do
not appear in the VITC Setup list because VITC, as Ancillary Data, is not
line-specific.
The VITC reader has two detection modes: Automatic and Manual. When you select
automatic detection, you can set the range of vertical interval lines scanned to find the
VITC signal pair; lines 10 to 21 by default. Manual allows you to choose specific line
numbers to detect the VITC signals. Automatic detection is the default setting. Use
automatic detection unless there are two sets of VITC on the input signal.
To set up the video input VITC reader:

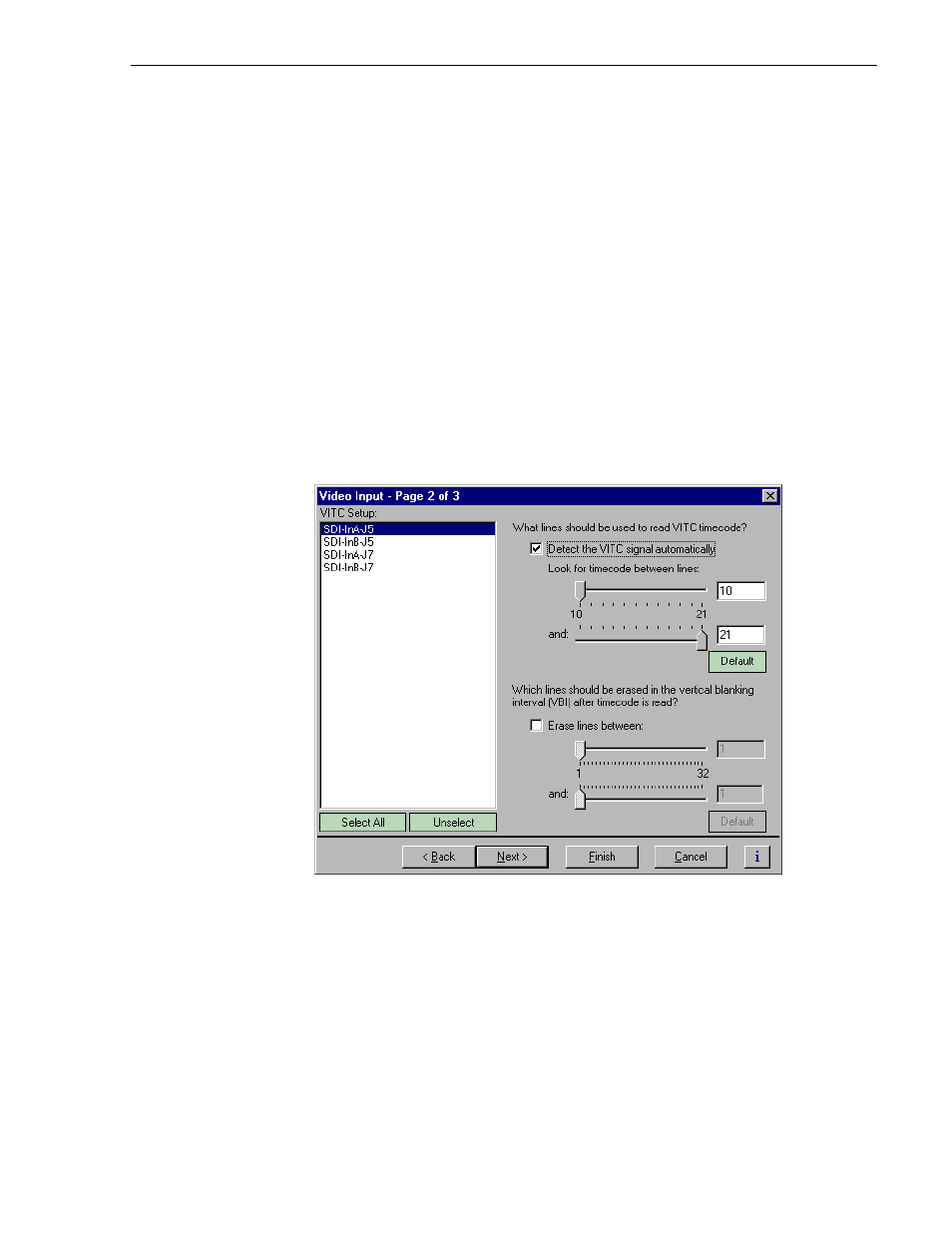

1. Select Video Input in the Configuration Manager window. The Video Input dialog
box appears.
2. Click Next to navigate to Video Input page 2 of 3.
3. Select a video input from the list or click Select All to configure all video inputs at
the same time.
