Recording VITC
23 July 2004 Profile XP System Guide 219
Recording VITC
The system reference input and all video inputs have VITC readers. To record VITC, you
must first select the reference input or a video input as a timecode source. For standard
definition inputs, you must then verify that the VITC reader for the input is set up
properly to read VITC.
Selecting a VITC input for a channel
To select VITC as the timecode source:

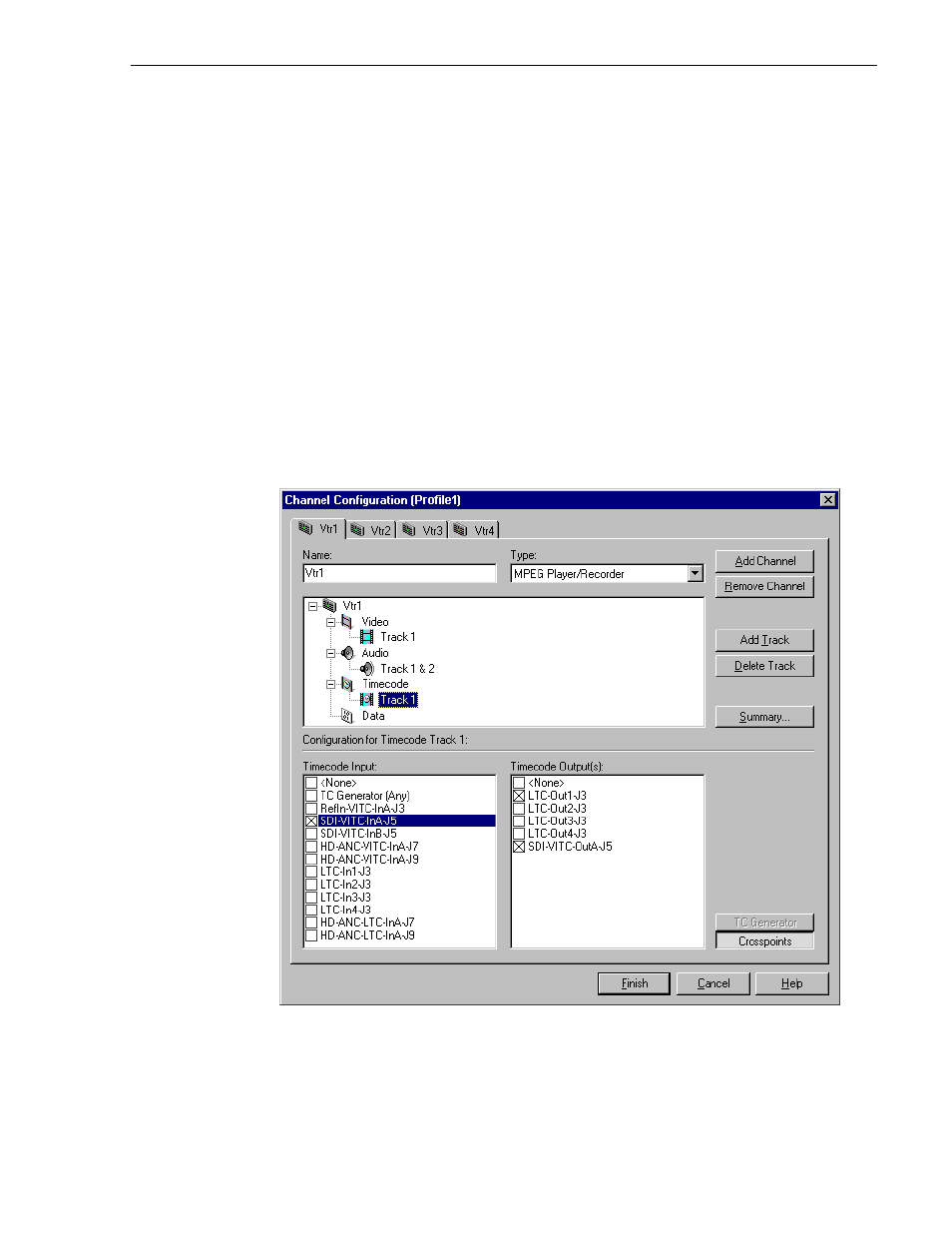

1. Select Channel Configuration in the Configuration Manager window.
2. Click the tab for the channel you want to configure.
3. Click on a timecode track in the configuration tree or click Add Track to add a new
one.
4. Click the Crosspoints button, then select the VITC source in the Timecode Input
list.
5. Click Finish to save your settings and close the Channel Configuration dialog box.
6. To set up the VITC reader for the VITC source you selected, refer to “Setting up
the VITC reader on a Video Input” on page 221, or “Setting up the VITC reader on
the Reference Input” on page 223.
