Welltech SIPPBX 6200 V.3.1.1 - Manual (Page 93)

Welltech Technology Co., Ltd.
SIPPBX 6200S, 6200GS, 6200N Release 3.1.1
User Guide
- 93 -

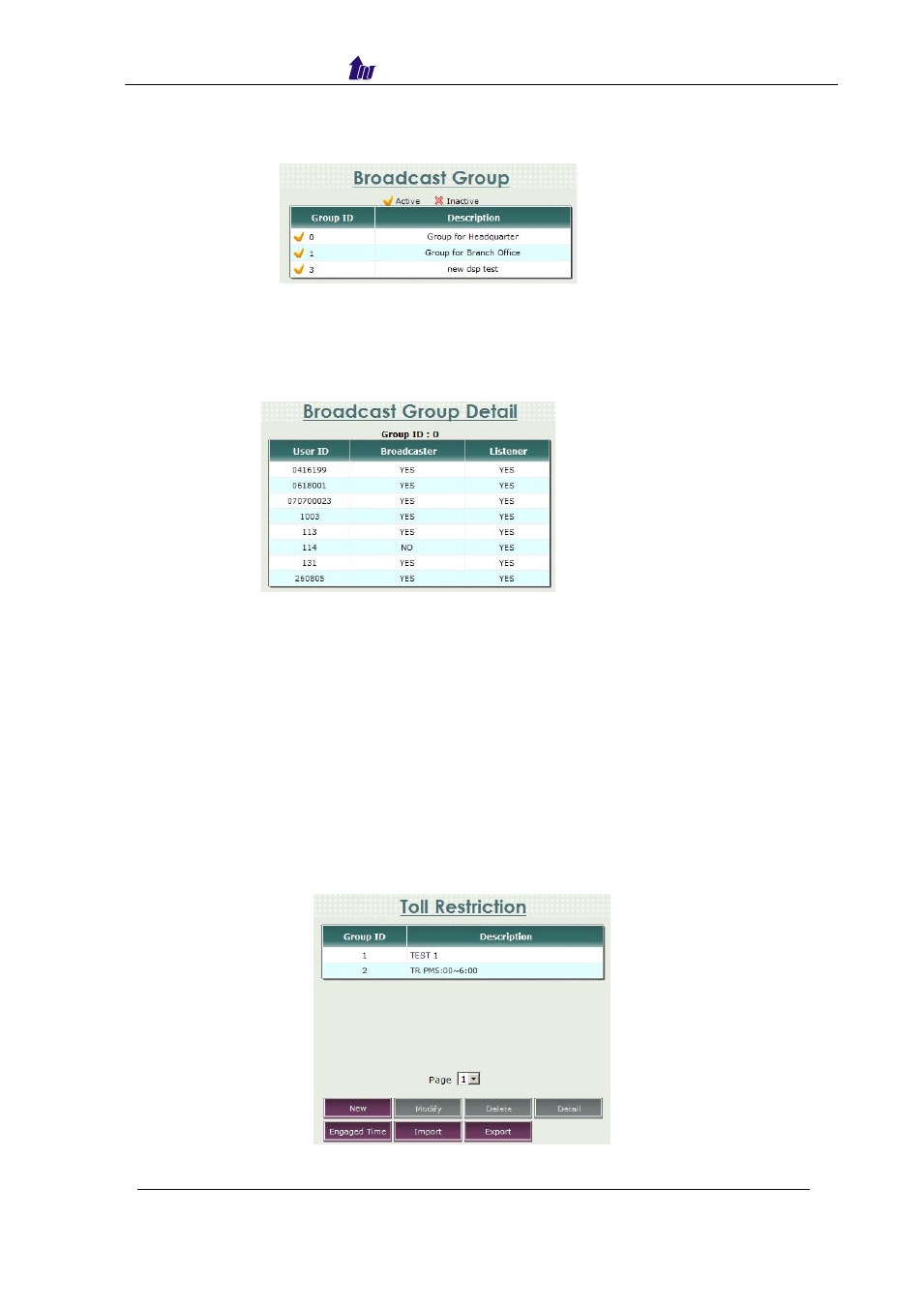

Start Path: Enhance Service > Broadcast Group
Figure 6.15-1
Parameter Description:
• Group ID: The broadcast group ID
• Description: The description
Click the Detail button:
Figure 6.15-2
Parameter Description:
• User ID: The user to be broadcasted.
• Broadcaster: Whether the user ID can initiate the broadcast or not.
• Listener: Whether the user ID is the listener or not.
Toll Restriction
Toll restriction can be used to restrict the called destination for an extension.
You can restrict calls such as international call prefix (e.g. 00), long distance
call (e.g. 0) and etc. Also it can be used to activate the call restriction only for a
certain time in a day based on a weekday. To activate the Toll Restriction, it is
required to specify the toll restriction group for an extension.
Start Path: Enhance Service > Toll Restriction, click Modify button
Figure 6.16-1
