Teac GigaPulse User Manual
Page 93
93
GigaPulse
™
User Guide
Gig
aP
uls
e-P
ro
Sig
na
l F
lo
w
GigaPulse-Pro Signal Flow
93

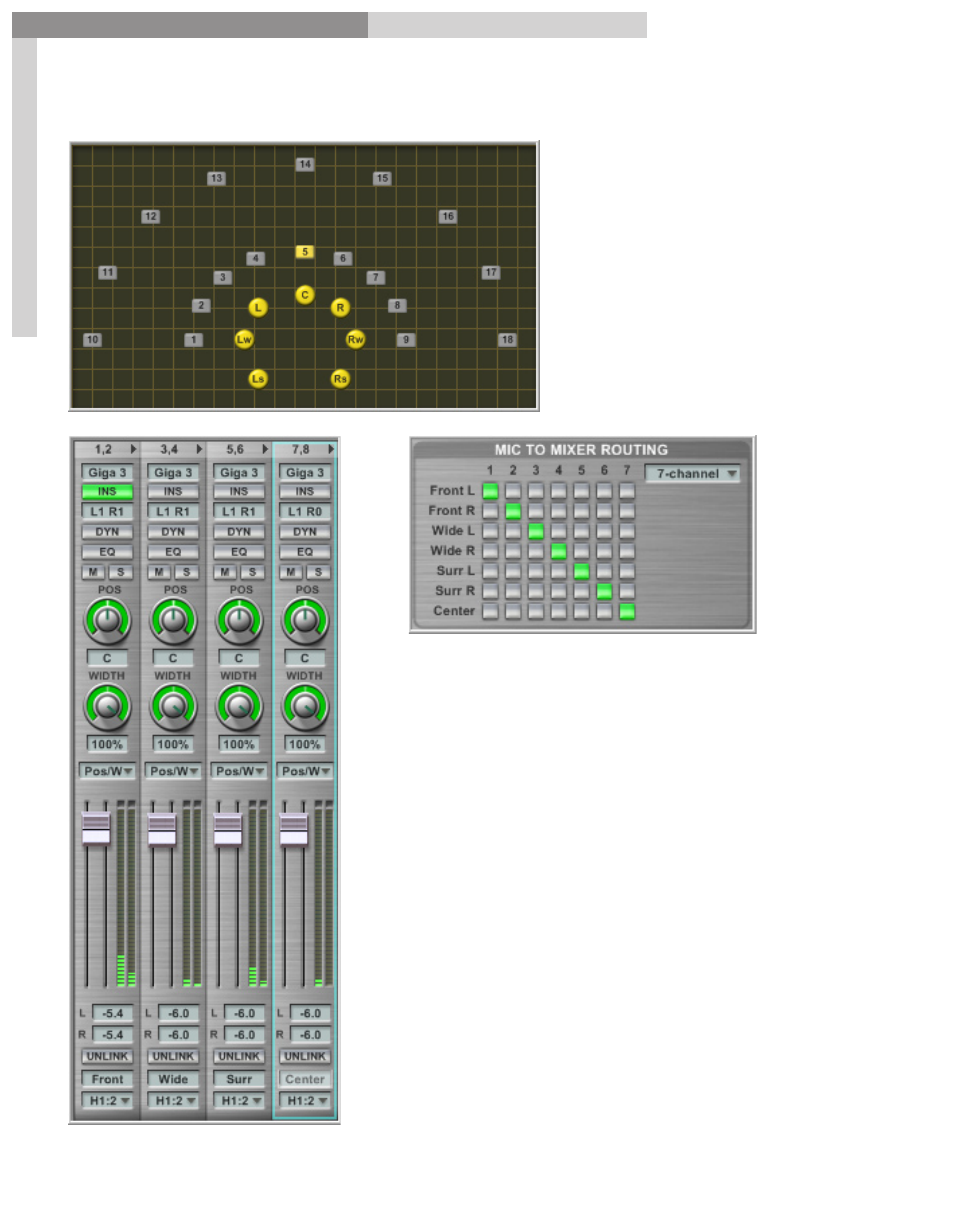

Next try enabling all of the microphone positions.
Now the meters in channels 1-8 light up.
1,2 is the Front L & Front R Mics
3,4 is the Wide L & Wide R Mics
5,6 is the Surr L & Surr R Mics
7 is the Center Channel Mic (Left side)
You can even label the mixer channels as we
have in this example.
At this point it is not recommended to assign
any audio through channels 3-8 since they
are occupied with audio routing.
Be sure to experiment with enabling &
disabling various mics and test out various
Mic to Mixer Routing settings and check the
results in the mixer meters.
