Impulse Builder-Mic Placement
151
Advanced: Elevation-Pitch-Roll-Yaw
These next few settings are for labeling purposes only and are completely optional.
They allow you if you wish to log the elevation & angles of the Microphone itself used
during the recording session.

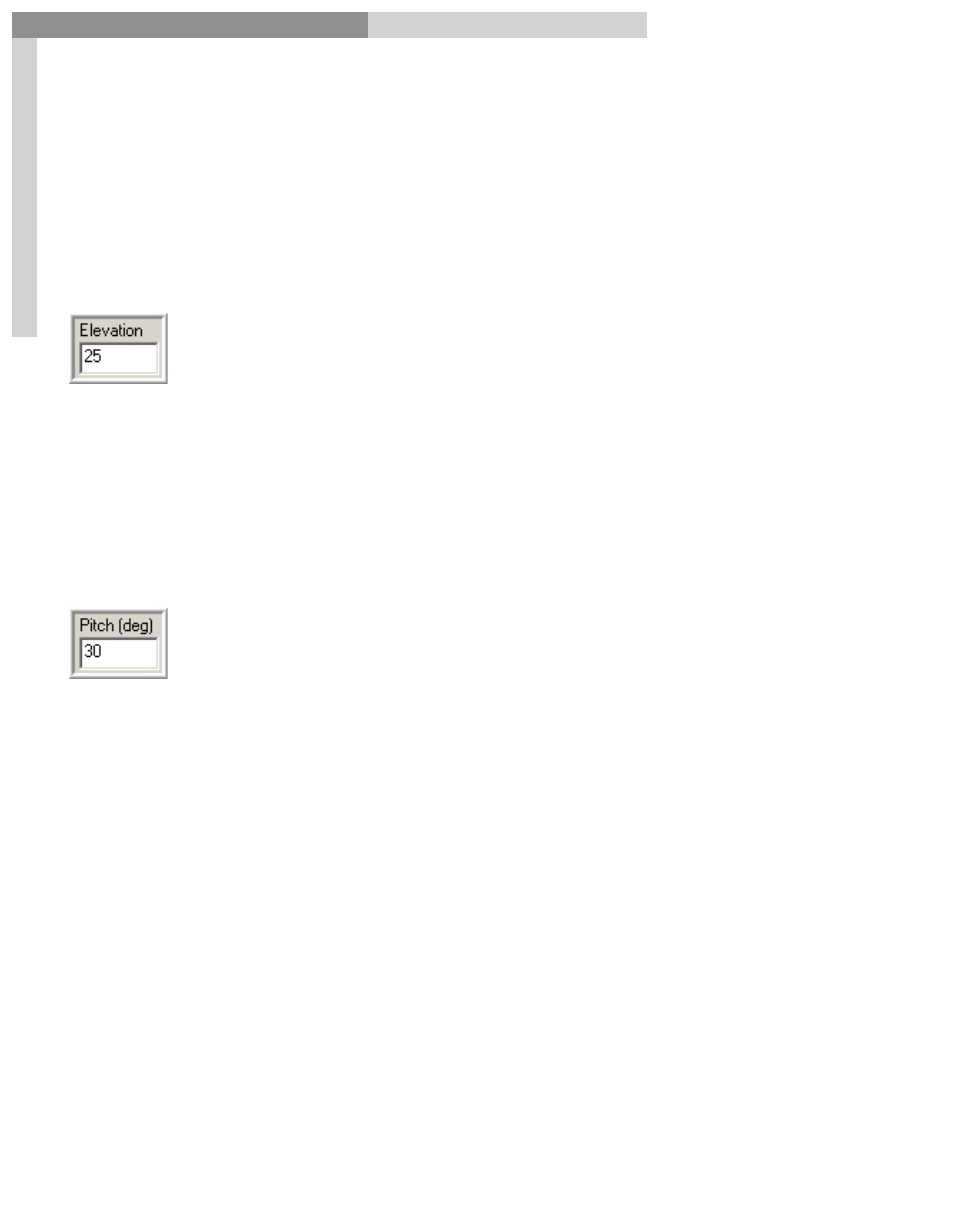

Elevation (advanced mode only):
Elevation: Distance Coordinate representing the height difference between the
microphone placement and origin. The Elevation assumes no unit of measure, other
than it is consistent between the Radii and Elevations of all source and microphone
placements. Any integer may be entered, assumes positive numbers are above the
origin, negative numbers are below.
Pitch (advanced mode only):
Pitch: Angular coordinate describing the forward/backward tilt of the Microphone’s
placement’s directional vector with respect to the origin, assuming a Yaw and Roll of
zero.
Pitch is measured in degrees. 0° refers to a directional vector passing through the
origin.
· A positive Pitch refers to a forward tilt, the directional vector passing below the
origin.
· A negative Pitch refers to a backward tilt, the directional vector passing above
the origin.
· Any integer may be entered, but will be resolved to a value between -179 to +180.
