The following fields can be set:
Parameter Description
Subnet Name This field allows the entry of a name
for the IP interface. The default IP
interface is named “System”.
IP Address This field allows the entry of an IP
address to be assigned to this IP
interface.
Subnet Mask This field allows the entry of a
subnet mask to be applied to this IP
interface.
VID This field allows the entry of the
VLAN ID number for the VLAN the IP
interface belongs to.
Active <Yes> This field is toggled between Yes and
No using the space bar. This entry
determines whether the interface will
be active or not.
Layer 3 IP Networking
To access the Layer 3 IP Networking menus, select Configure Layer 3 - IP Networking on the
Configuration menu.
If an IP Interface is created while RIP is enabled, the TX Mode default will be
V2 Only and the RX Mode default will be V1 and V2
Setup the Routing Information Protocol (RIP)
To access the RIP State window, select RIP State (Configuration − Configure Layer 3 – IP
Networking − RIP Settings − RIP State).

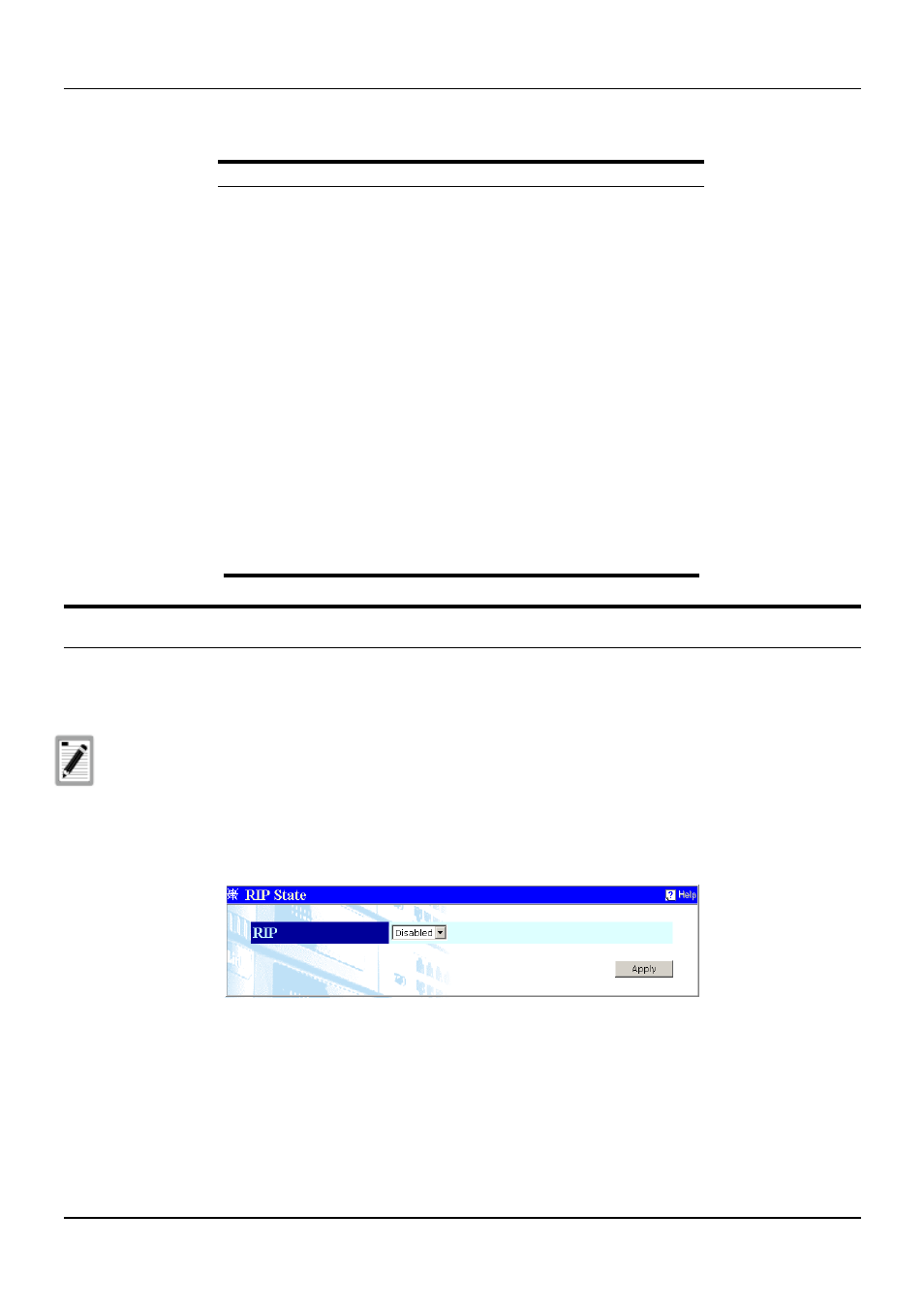

Figure 7-28. RIP State window
This window allows RIP to be globally enabled and disabled on the switch without changing its
configuration.
To configure RIP on the switch, highlight Setup RIP (Configuration → Configure Layer 3 – IP
Networking → RIP Settings → Setup RIP).
