DES-3326 Layer 3 Fast Ethernet Switch User’s Guide

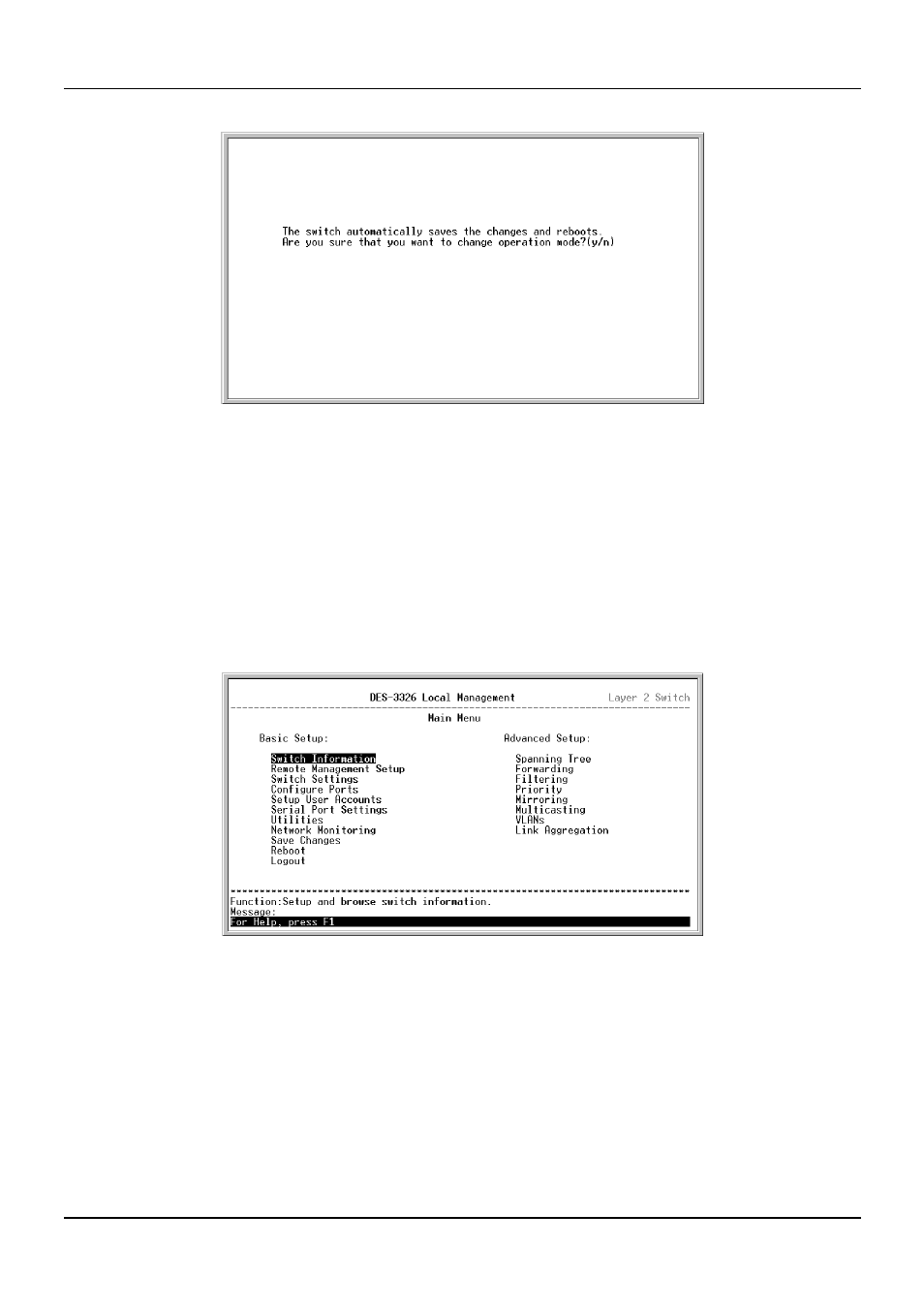

Figure 6-21. Change Mode Confirmation screen

Type y and press Enter. The switch will then save the changes made during the current session and
reboot. The switch must be rebooted to change the operation mode.

Menu Changes with Switch Operating Mode

Once the switch is configured for IP Routing (Layer 3 Switching), and rebooted, the Main Menu adds
some functions compared to the Layer 2 Only mode. These functions are reflected in additional
configuration menus (under the same Main Menu headings as in Layer 2 mode), and the addition of
the Layer 3 IP Networking entry. All of the console menus are listed, in order, in the Screen Hierarchy
below.

Figure 6-22. Main Menu – Layer 2 Switching Mode

This is the Main Menu when the switch is in Layer 2 mode.
