DES-3326 Layer 3 Fast Ethernet Switch User’s Guide
Setup Routing Information Protocol (RIP)
If an IP Interface is created while RIP is enabled, the TX Mode default will be V2 Only and
the RX Mode default will be V1 and V2.
To access the Setup RIP Configuration menu, highlight Setup RIP Configuration from the Setup
Layer 3 IP − Networking menu and press Enter.

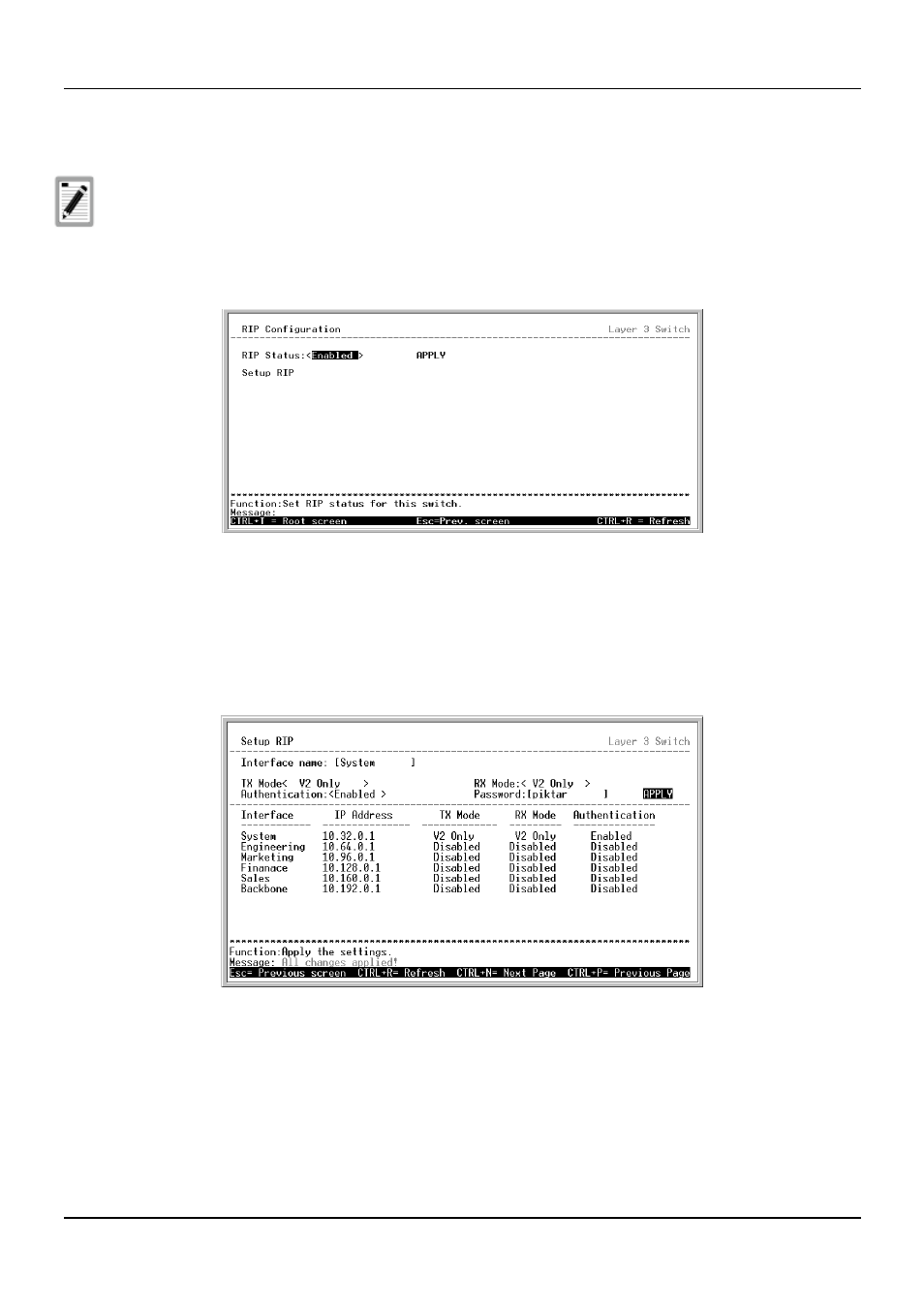

Figure 6-39. RIP Configuration menu
The RIP Configuration menu allows RIP to be globally enabled and disabled on the switch without
changing its configuration. Toggle the RIP Status field between Enabled and Disabled using the space
bar.
To configure RIP on the switch, highlight Setup RIP from the RIP Configuration menu and press
Enter.
Figure 6-40. Setup RIP screen
122
