DES-3326 Layer 3 Fast Ethernet Switch User’s Guide
GBIC Two-Port Module

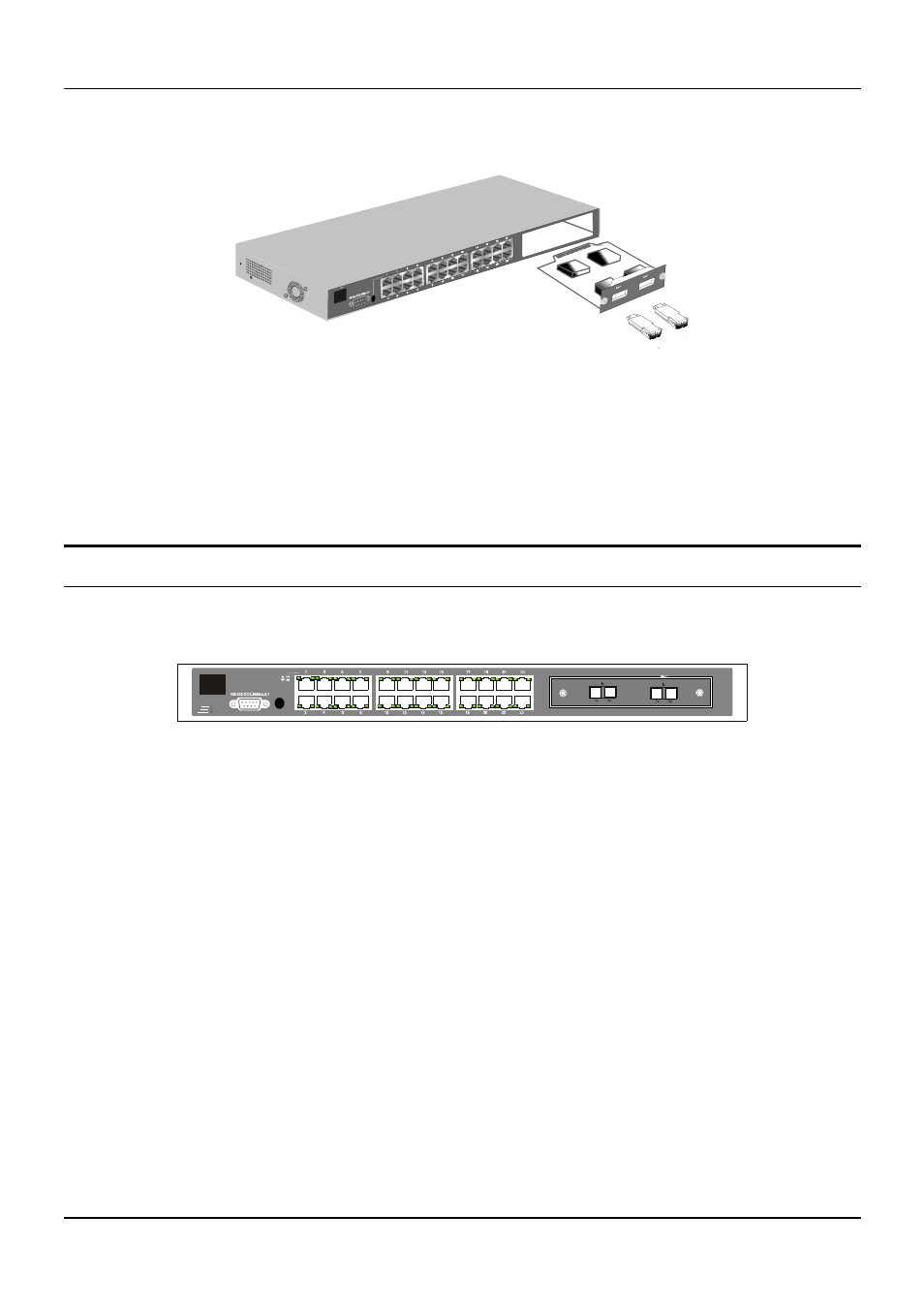

Figure 3-8. GBIC two-port module
♦ Front-panel module.
♦ Connects to GBIC devices at full duplex only.
♦ Allows multi-mode fiber optic connections of up to 550 m (SX and LX) and single-mode fiber optic
connections of up to 5 km (LX only). GBIC modules are available in –SX and –LX fiber optic media.
LED Indicators
The LED indicators of the Switch include Power, Console, and Link/Act. The following shows the LED
indicators for the Switch along with an explanation of each indicator.
Figure 3-9. The LED indicators
♦ Power This indicator on the front panel should be lit during the Power-On Self Test (POST). It will
light green approximately 2 seconds after the switch is powered on to indicate the ready state of
the device.
♦ Console This indicator is lit green when the switch is being managed via out-of-band/local
console management through the RS-232 console port using a straight-through serial cable.
♦ Link/Act These indicators are located to the left and right of each port. They are lit when there is
a secure connection (or link) to a device at any of the ports. The LEDs blink whenever there is
reception or transmission (i.e. Activity--Act) of data occurring at a port.
