7.
Hold the liner in place while turning the take-up reel in a counter-clockwise direction
to remove slack in the supply liner.
8.
Close the printhead assembly until you hear it click in to place.
9.
Close the printer’s cover.
10.
Close the exit cover.
11.
Press FEED to position the supply under the printhead.
Removing a Full Liner Take-Up Roll
Remove the liner take-up when the printer alerts you to a full roll. The liner take-up reel
holds half of a roll of supply. See “
Common Errors ” in Chapter 10 for more information.
1. Open the cover.
2.
Unlock the printhead assembly by turning the retaining latch.
3. Press down on the exit cover tabs to open the exit cover on the front of the printer.

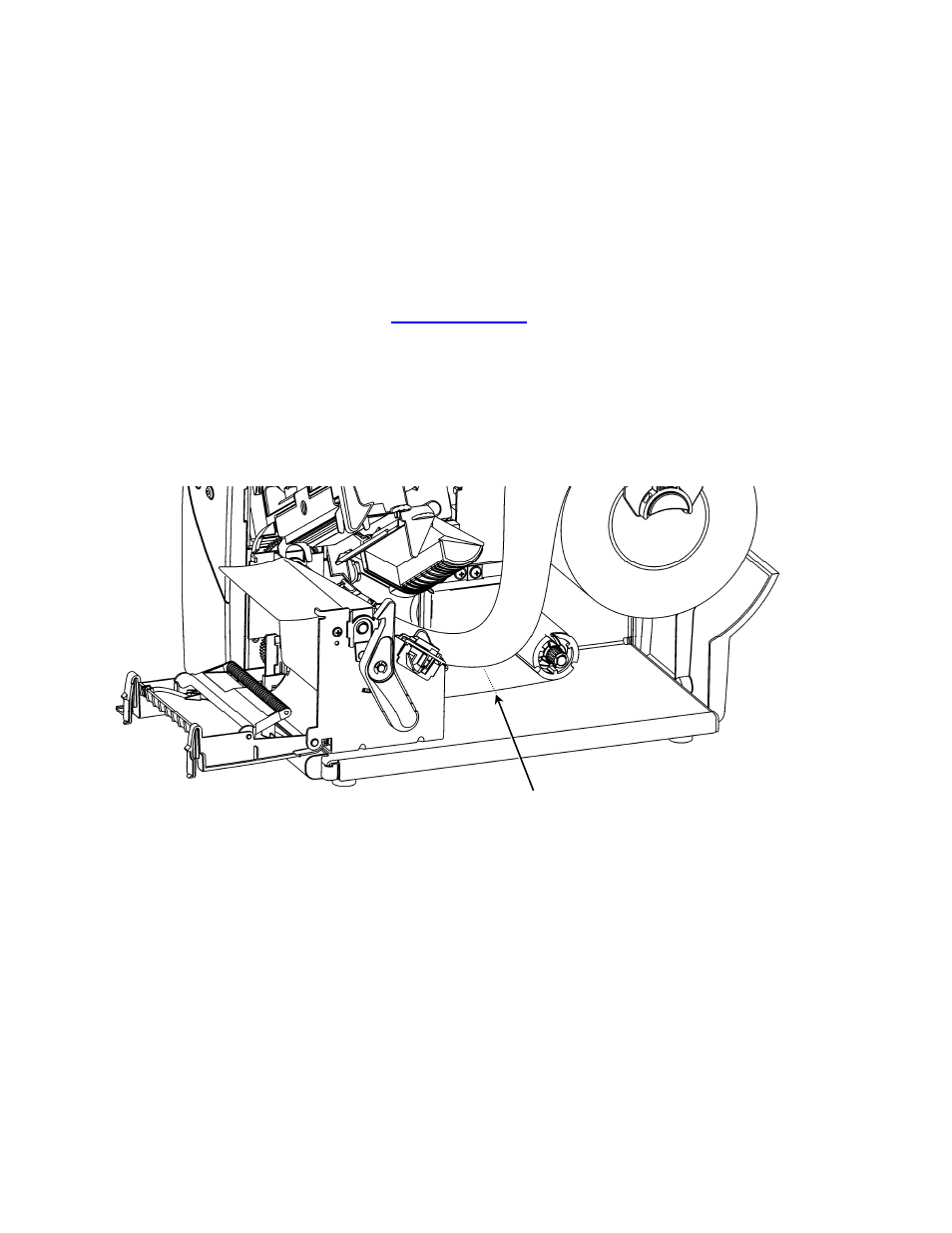

4. Use scissors to cut the liner in front of the take-up reel.
C u t L i ne r H ere

5. Gently pull the full liner take-up core off the reel.
Note: Place your fingers between the take-up core and printer wall. Gently push the
core off the reel. This eases removal and minimizes the liner telescoping from the
reel.
6. Remove the liner from the take-up core.
7. Reload supply and continue printing.
Loading Supplies 2-9
