6. Push down on the supply lever to unlock the supply guides.

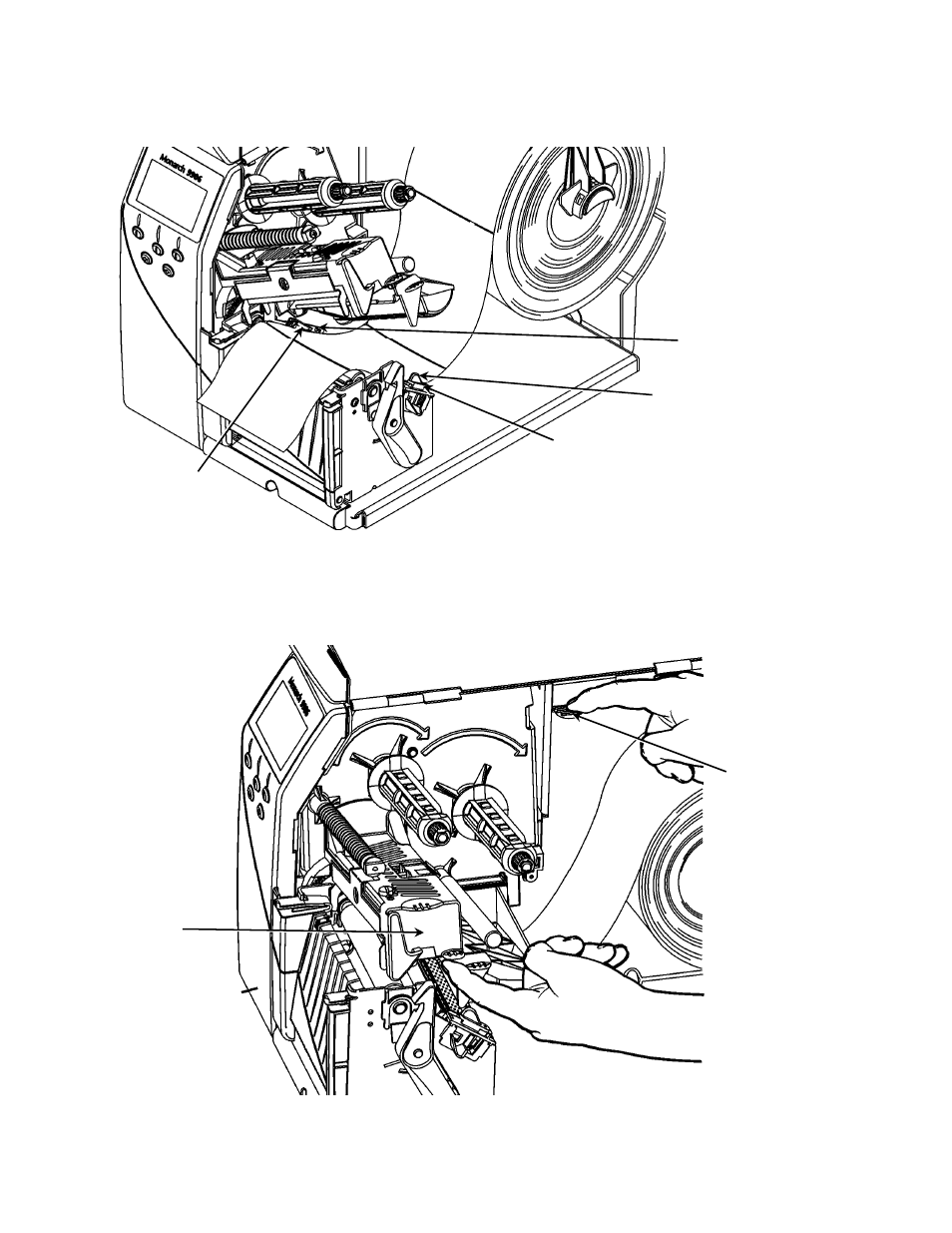

7. Lay the label strip across the supply guide so that a few inches extend past the front
of the printer. Tuck the supply under the nibs and supply sensor. Do not feed supply
between the supply roller and deflector.
N i b s
S u p p l y
S e n s or
S u p p l y G u i d e
S u p p l y L e ve r
8. Adjust the supply guide so it barely touches the supply. Push up on the supply lever
to lock the supply guide into place.
9. Hold the printhead assembly by the printhead tab while pushing the printhead release.
2-4 Operator's Handbook
P ri n t h ea d
As s e m b l y
P ri n t h ea d
R e l ea s e
