VOLT #12 120.0 CURR 10.00A
VSLEW #12 1e+06 PHASE(C) 120.0
FREQ #12 400.0 Power on Screens
FSLEW #12 10.00 #1 CAL. INST.
CIC674-1,Rev X.X
FUNC #12 0
PAUSE#12 0.0 #2 MODEL 4500LX
SERIAL #12345
CURR #12 20.0
PHASE#12 0.0 #3 Self test passed
DWELL #12 10.00
TTLT #12 ON
Table 4-1: Menu Tree
4.2.4 PROGRAM Menu

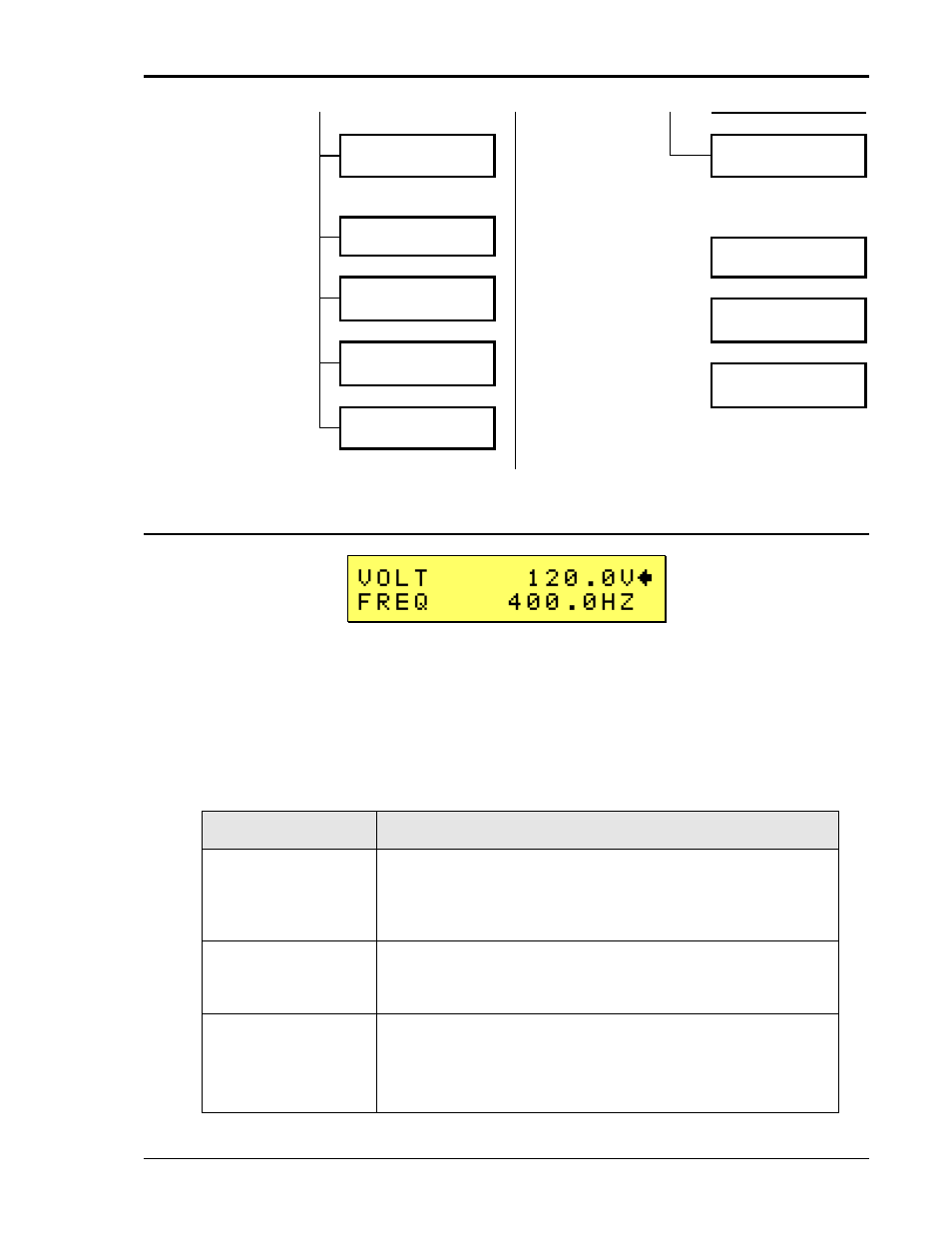

Figure 4-4: PROGRAM Menu
The PROGRAM menu is shown in Figure 4-4. It can be reached in one of two ways:
1. by selecting the Menu key, selecting the PROGRAM entry and pressing the Enter key.
2. by pressing the Set key.
The PROGRAM menu is used to change primary output parameters. Less frequently used
parameters are located in the CONTROL menu.
The following choices are available in the PROGRAM menus:
ENTRY DESCRIPTION
VOLTAGE Programs the output voltage in Vrms. The voltage can be
changed from 0 to its max range value as determined by the
configuration settings and the selected voltage range using the
Voltage shuttle.
FREQ Programs the output frequency The frequency can be changed
from its min to its max value as determined by the configuration
settings using the Frequency shuttle.
VRANGE Selects 150V or 300V voltage range (if available). The actual
range values may be different depending on the configuration.
The value of this field can be changed with either Voltage or
Frequency shuttle as long as the active pointer () points to the
VRANGE entry. If only one voltage range is available, this field
