1–4

Chapter 1: Overview

Handling the Board

Stratix III 3SL150 Development Board

May 2013

Altera Corporation

Reference Manual

Block Diagram

Figure 1–1

shows the functional block diagram of the Stratix III development board.

Handling the Board

When handling the board, it is important to observe the following precaution:

c

Static Discharge Precaution: Without proper anti-static handling, the board can be
damaged. Therefore, use anti-static handling precautions when touching the board.

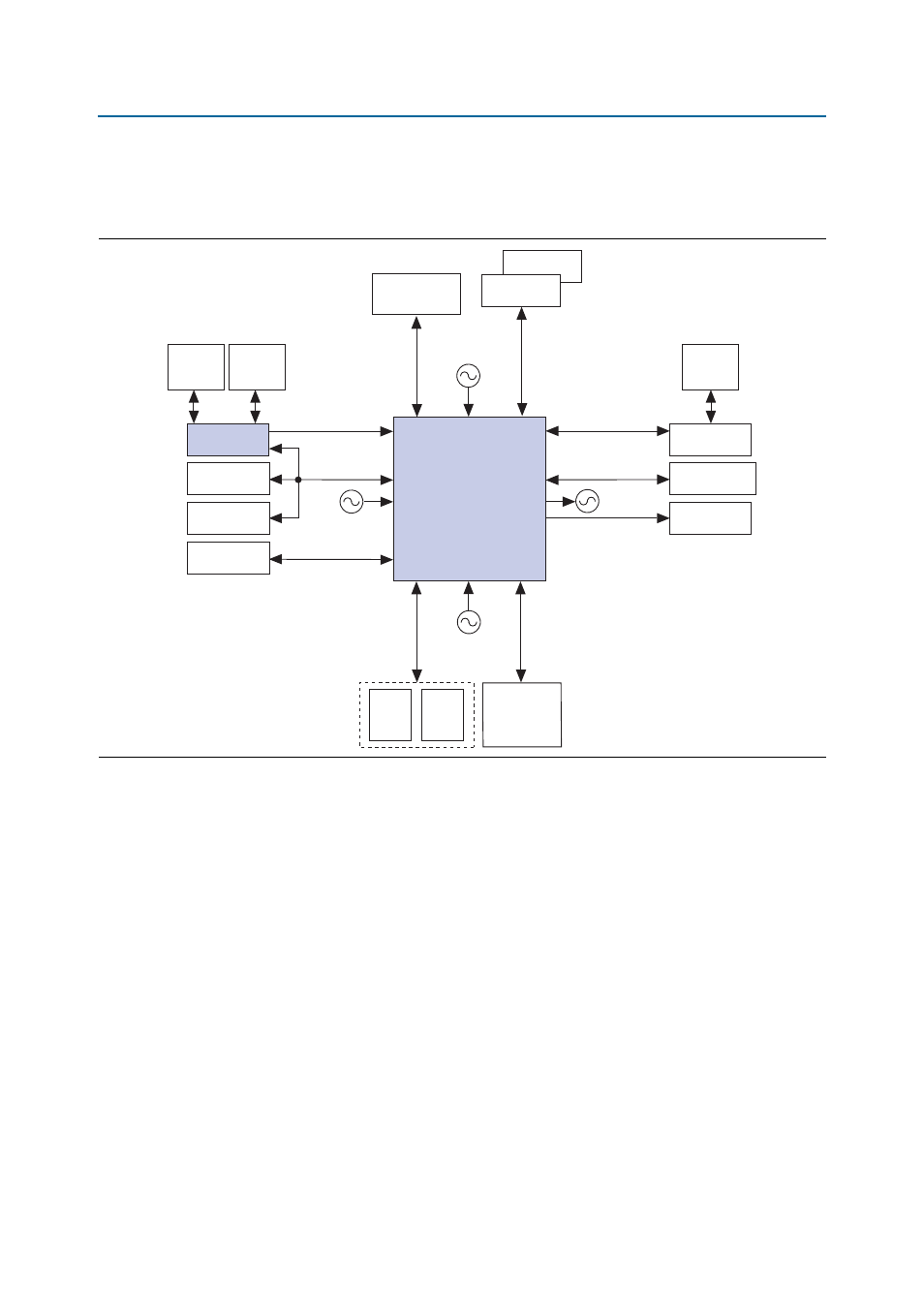

Figure 1–1. Stratix III Development Board Block Diagram

1.5-V HSTL

Statix III

EP3SL1501152

EP3SL340H1152

125-MHz

XTAL

MAX II

Device (x16)

2.5-V CMOS

1.8-V CMOS

Power

Measure/

Display

72-Mbit QDRII/+

18/18

CMOS + LVDS

4-MB SSRAM

(x32)

64-MB Flash

(x16)

1-GByte DDR2

(x72)

USB

2.0

1.8-V SSTL

50-MHz

XTAL

1.8-V CMOS

Quad 7-Seg/

User LEDs,

Buttons,

Switches

SMA Input

1.8-V SSTL

SMA Output

10/100/1000

Ethernet

CMOS + LVDS

2.5-V CMOS

RJ45

Jack

Graphics Display

Header

14-Pin LCD

Header

16-MB

DDR2

(x8)

16-MB

DDR2

(x8)

HSMC Port B

HSMC Port A
