Chapter 2: Board Components
Configuration, Status, and Setup Elements
Stratix V GX FPGA Development Board
October 2014
Altera Corporation
Reference Manual
JTAG Chain
The on-board USB-Blaster II is automatically disabled when you connect an external
USB-Blaster to the JTAG chain or when you enable JTAG from the PCI Express edge
connector.
illustrates the JTAG chain.
Each jumper shown in
is located in the JTAG DIP switch (SW3) on the back
of the board. To connect a device or interface in the chain, their corresponding switch
must be in the OFF position. Push all the switches in the ON position to only have the
FPGA in the chain. Note that the MAX V CPLD System Controller must be in the
chain to use some of the GUI interfaces.

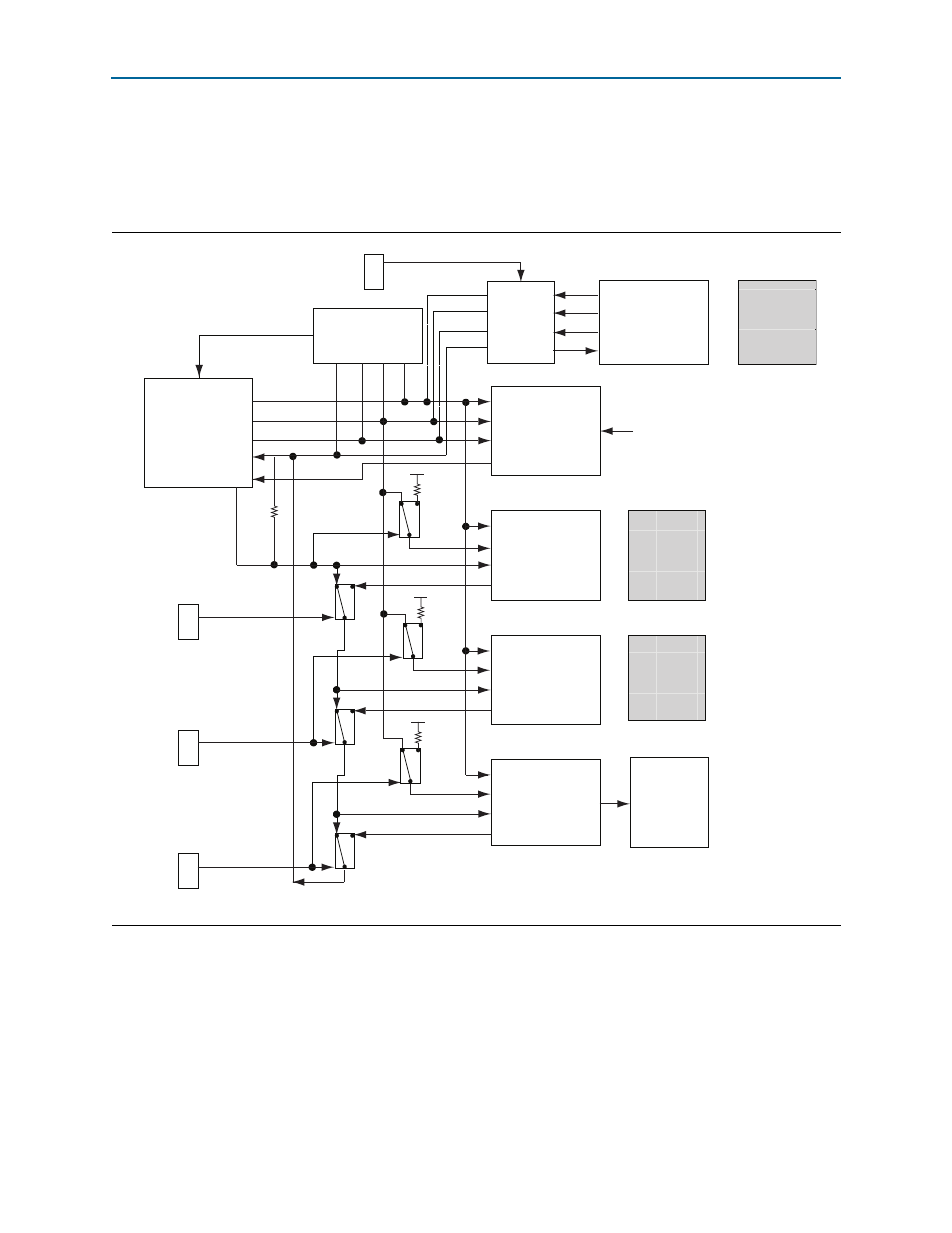

Figure 2–3. JTAG Chain
