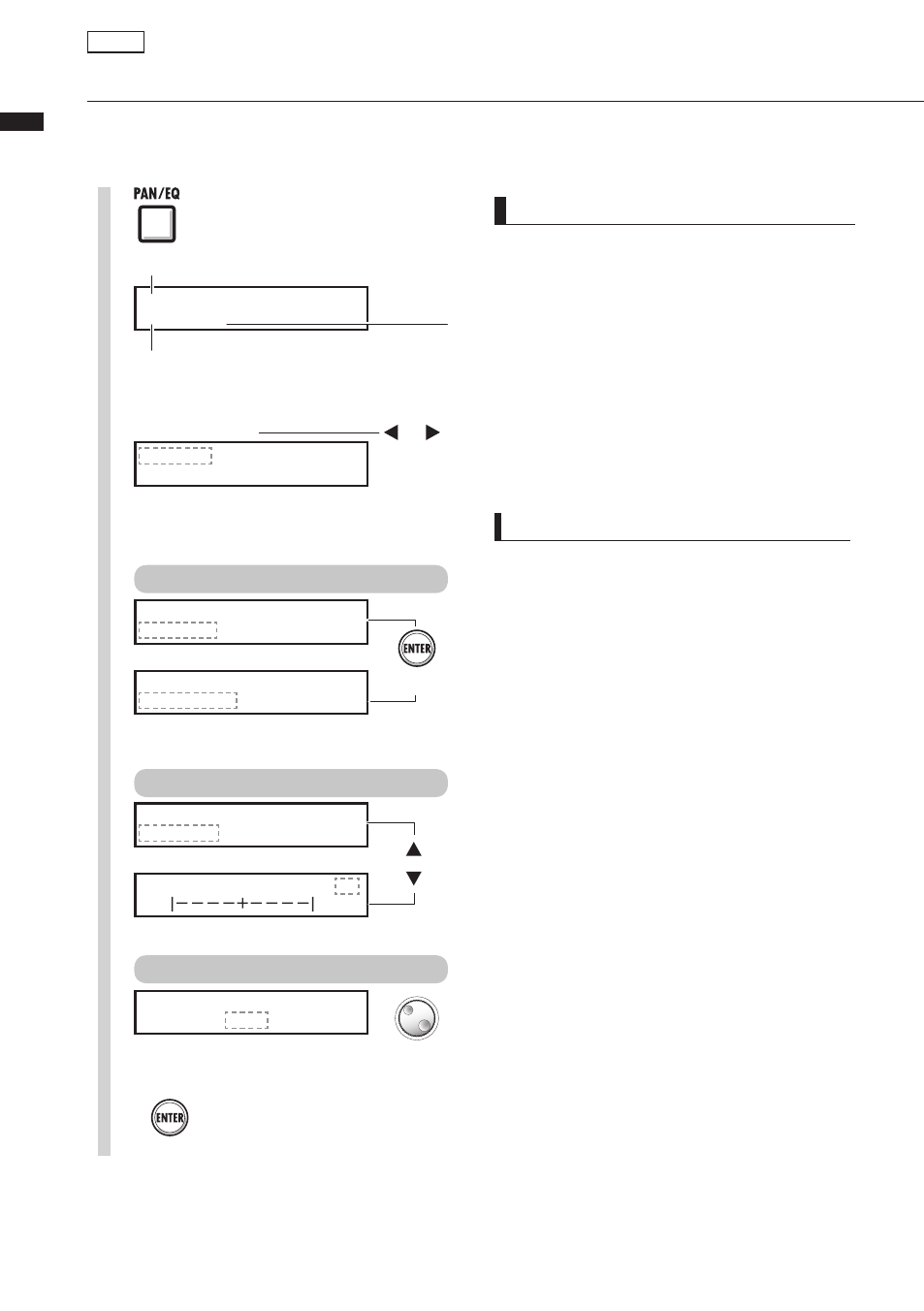

Track settings for EQ, pan and send-return level
This track mixer uses track parameters to adjust PAN (stereo position), EQ (equalizer) and SEND-
RETURN EFFECT of the recorder's audio tracks.
Press [ENTER] to confirm settings.
4
HINT
• Using the track mixer, you can adjust each track
element (track parameter), including PAN and
the SEND-RETURN EFFECT settings to change
the signal processing track by track.
• At step 2, tracks can be selected using track
status keys. Track indicators light orange when
the track is selected.
NOTE
• The parameters of the L/R channels in stereo
tracks are the same except the phase setting
(INVERT).
• The settings are stored with the project.
• The MASTER TRACK does not have any settings
except for volume control with its fader.
2
Select a track.
T r a c k 1
E Q H I G = 0 d B
3
Turn ON/OFF and select
types and values.
Turn setting off.
Change the parameter type.
T r a c k 3
E Q H I G = 0 d B
1
Press [PAN/EQ].
T r a c k 1
E Q H I G = 0 d B
Type (EQ is on)
Adjust the value
of the parameter.
Change track number
Mixing
Track
Parameter
Adjust the value of the parameter.
T r a c k 3
E Q H I G = 0 d B
T r a c k 3
E Q H I O f f
EQ is OFF.
T r a c k 3
E Q H I G = 0 d B
T r a c k 3 P A N = R 2
Parameter ON/
OFF.
Press [ENTER].
EQ is ON
Change the
parameter type.
