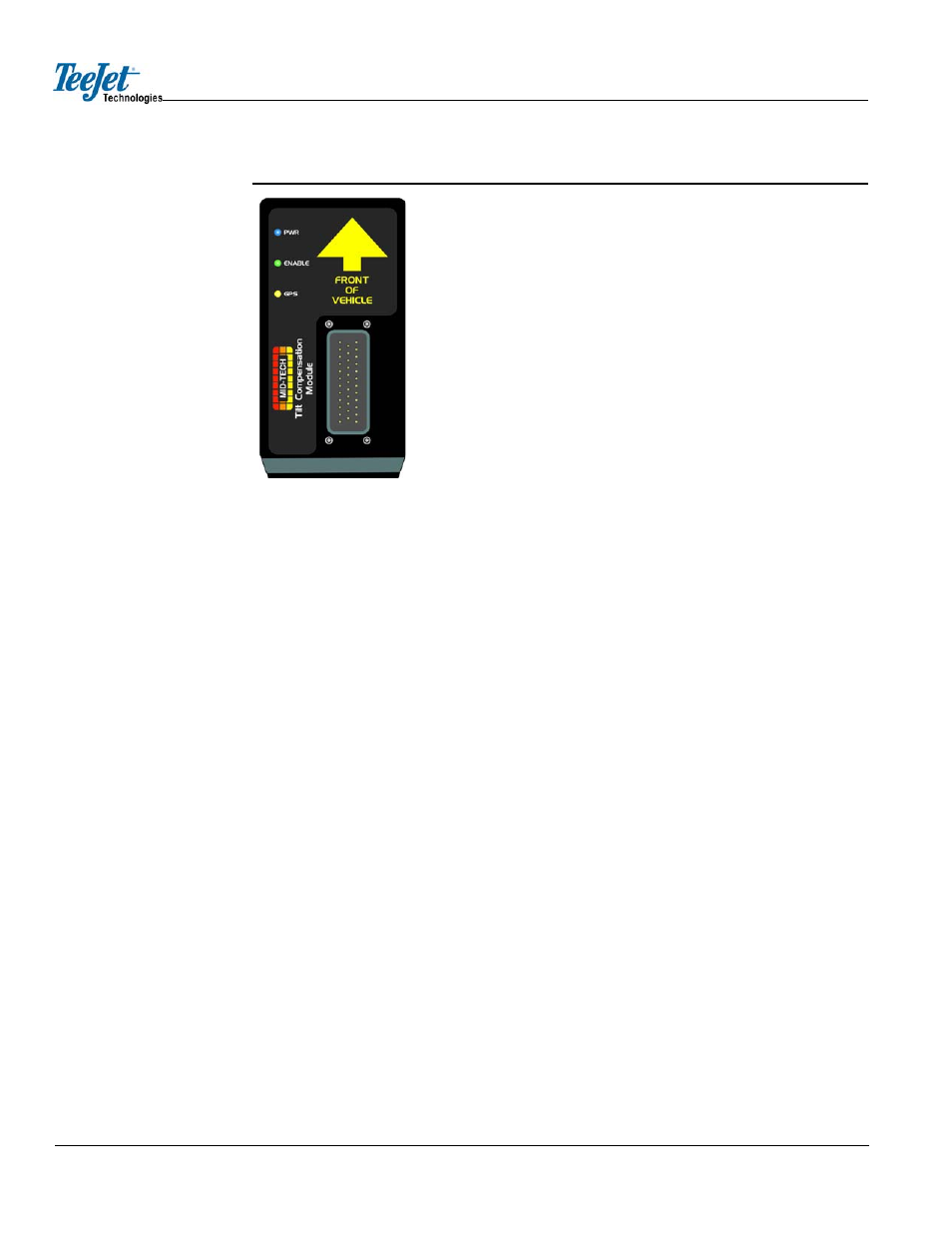

Figure 3-20: Tilt Compensation Module
Tilt Compensation Module Installation
• Mount the Tilt Compensation module as close to the center of the vehicle side as possible.
• Mount the module on a plain parallel to the GPS antenna so that both the antenna and the
sensor tilt the same degree.
• Mount the module so the sensor is level and the connector is pointing upward.
• The module should be mounted rigidly to minimize vibration. Vibration will degrade the abil-
ity to sense tilt.
• It is recommended that nuts and bolts be used or self-tapping screws be used through the
two mounting holes on each end of the module.
• The arrow on the module decal must be pointing toward the front of the vehicle.
• DO NOT mount the module near extreme temperatures, upside down, or on its side.
