TeeJet CenterLine User Guide v2.02 - Manual (Page 44)

40 Chapter 3 - Operation

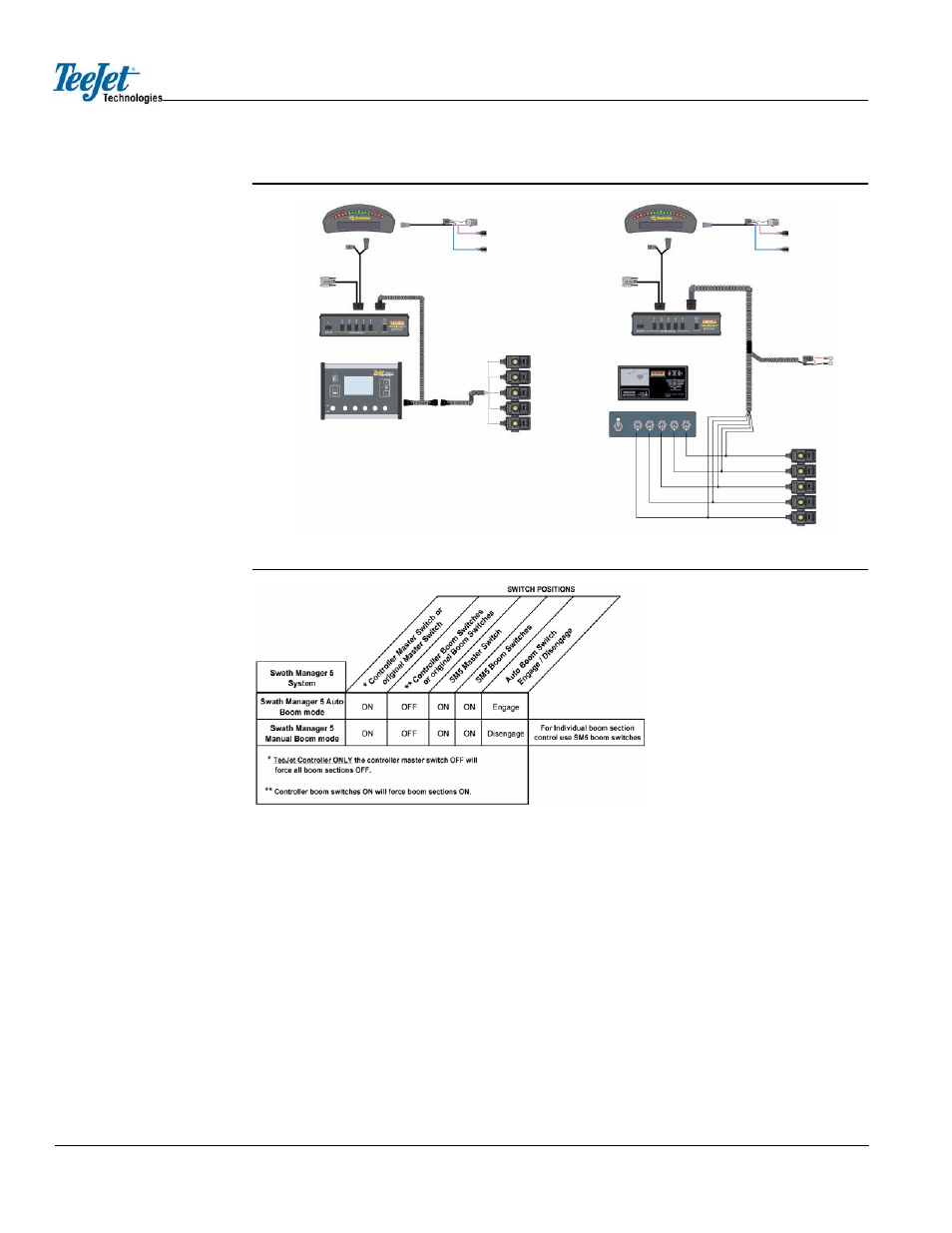

Figure 3-16: Installation of Swath Manager 5
Figure 3-17: Swath Manager 5 Switch Configuration
Lightbar
78-50111
Power Cable
45-05324
Cable SM5 to CenterLine
45-05461
GPS In
Not used
Swath Manager 5
78-08065
Rate Controller
SM5 Controller Harness
TeeJet - 45-05462
Raven - 45-05463
Valves
Existing controller
harness
Lightbar
78-50111 Power Cable
45-05324
IGN Sense
Status Detect
(not used)
IGN Sense
Status Detect
(not used)
GPS In
Not used
Cable SM5 to CenterLine
45-05461
Swath Manager 5
78-08065
SM5 Controller Harness
TeeJet - 45-05462
Raven - 45-05463
Existing switches or switchbox
Wire Splice 50-10097
Valves
To accessory
power or battery
