12 Chapter 2 - Setup

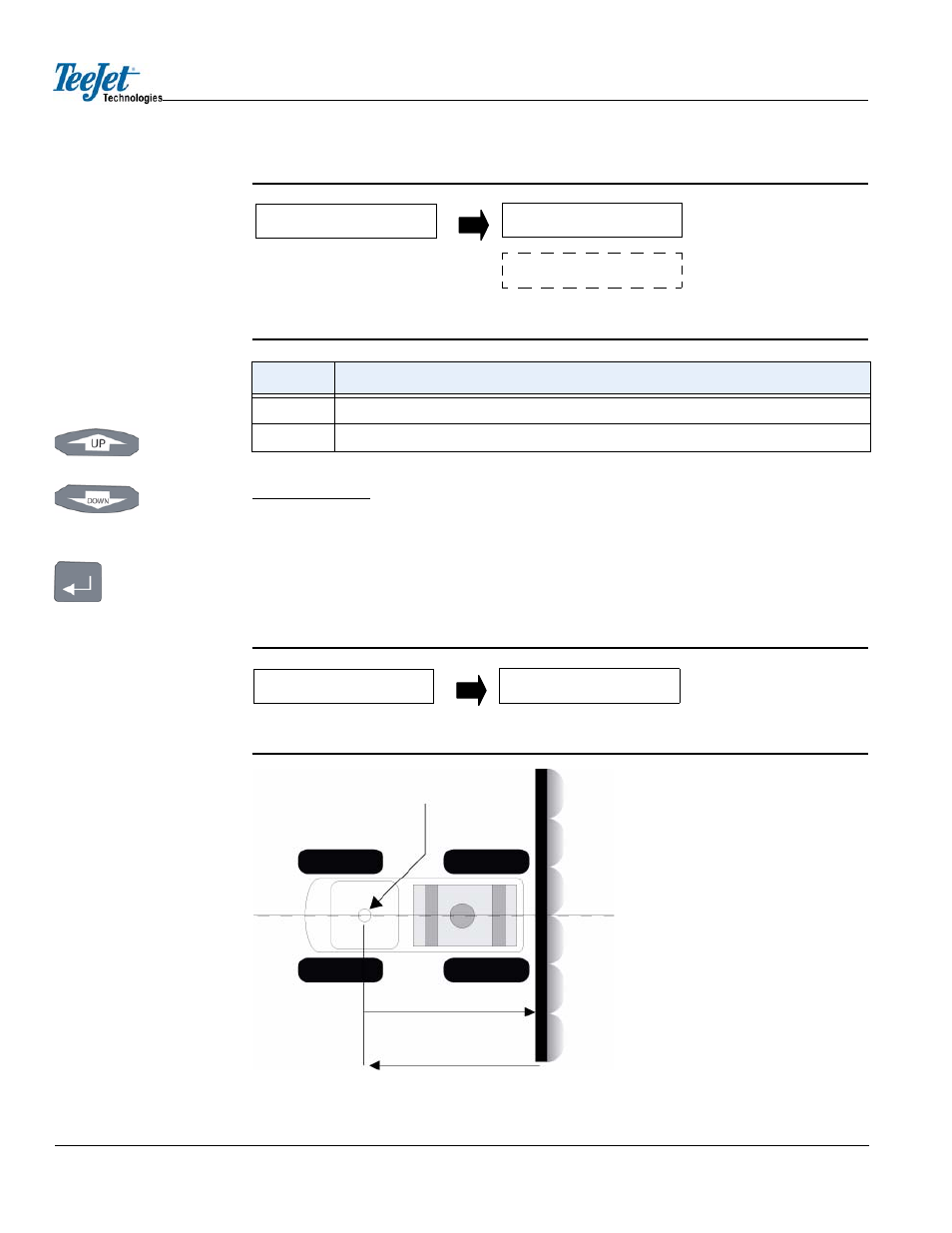

Figure 2-14: Establishing Direction to Swath
Table 2-3: Swath Settings
Antenna - Distance
The Distance setting defines the distance from the GPS antenna to the swath or delivery location
(refer to Figure 2-16). To adjust the Distance setting, navigate to , use the
Arrow buttons until is displayed, and press the Enter button. Use the Arrow buttons to
select and press the Enter button. Use the Up Arrow button to increase distance; use
the Down Arrow button to decrease distance. Press the Enter button once the appropriate distance
is displayed to save the settings and return to the Guidance setup menu.
Figure 2-15: Establishing Antenna Distance
Figure 2-16: Direction and Distance to Swath from DGPS Receiver
Setting Description
Back GPS receiver is behind the swath or delivery point on the vehicle along the center line.
Forward GPS receiver is in front of the swath or delivery point on the vehicle along the center line.
Direction Back
Forward
Distance 22.5
GPS Antenna
Center Line of
Vehicle
Distance To Swath
Direction From Swath
(Forward)
Arrow buttons
Enter button
