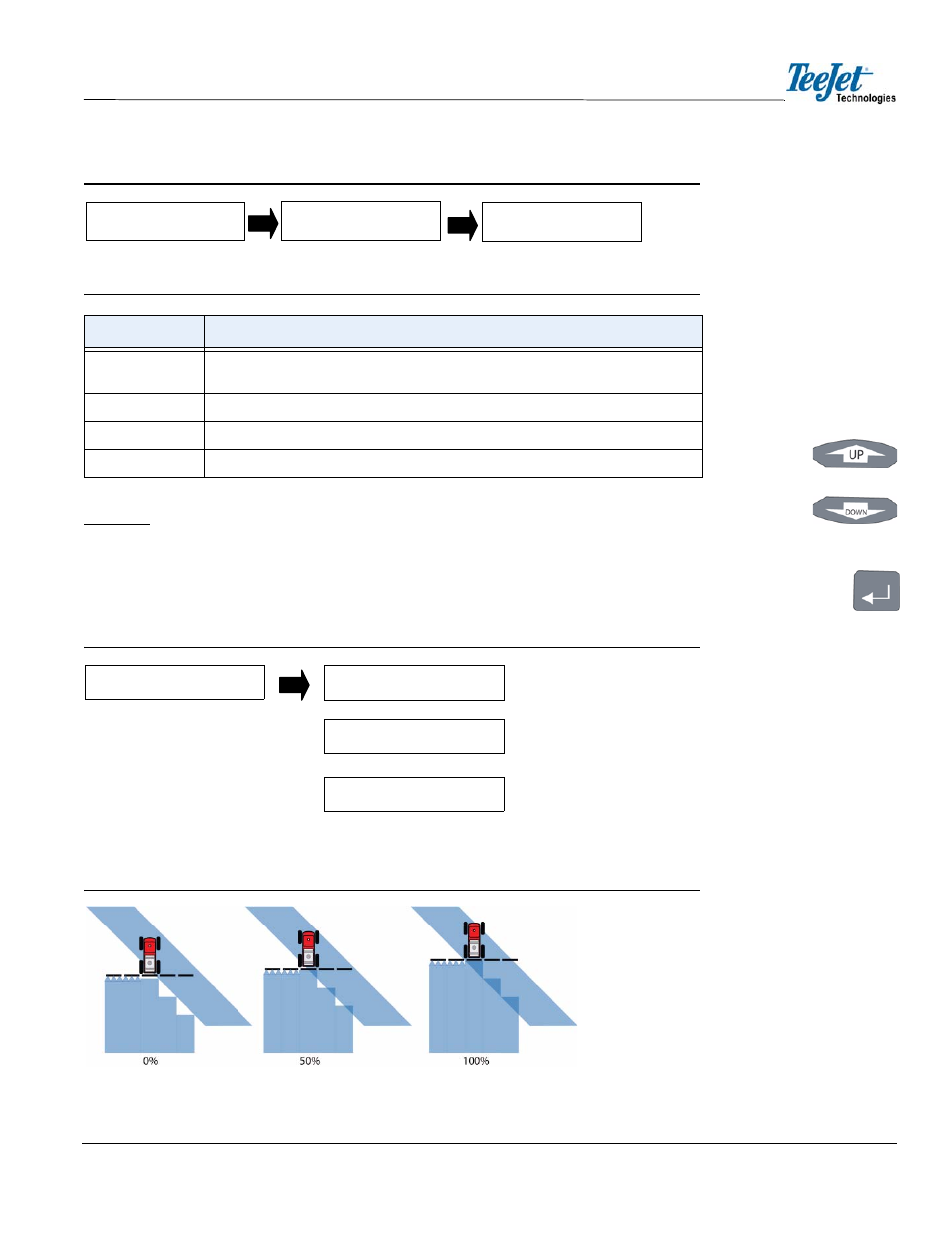

Figure 2-5: Swath Manager 5 Setup
Table 2-2: Swath Manager Settings
% Overlap
%Overlap determines the amount of overlap allowance to eliminate skips in application. Enter the
appropriate pattern by using the Arrow buttons to select 0%, 50%, or 100% and press the
Enter button to accept the setting.
Figure 2-6: % Overlap Settings
Figure 2-7: % Overlap Illustration
Setting Description
% Overlap Boom sections are activated and deactivated based on the percentage of boom overlap
setting (0%, 50%, and 100%)
Sections The number of sections (1-5) active on the system.
Width 1-5 The width for each boom 1-5.
Delay The delay in seconds to turn the booms on and off when entering/exiting applied zones.
Setup Swath Man Guidance
% Overlap 0%
50%
100%
Arrow buttons
Enter button
