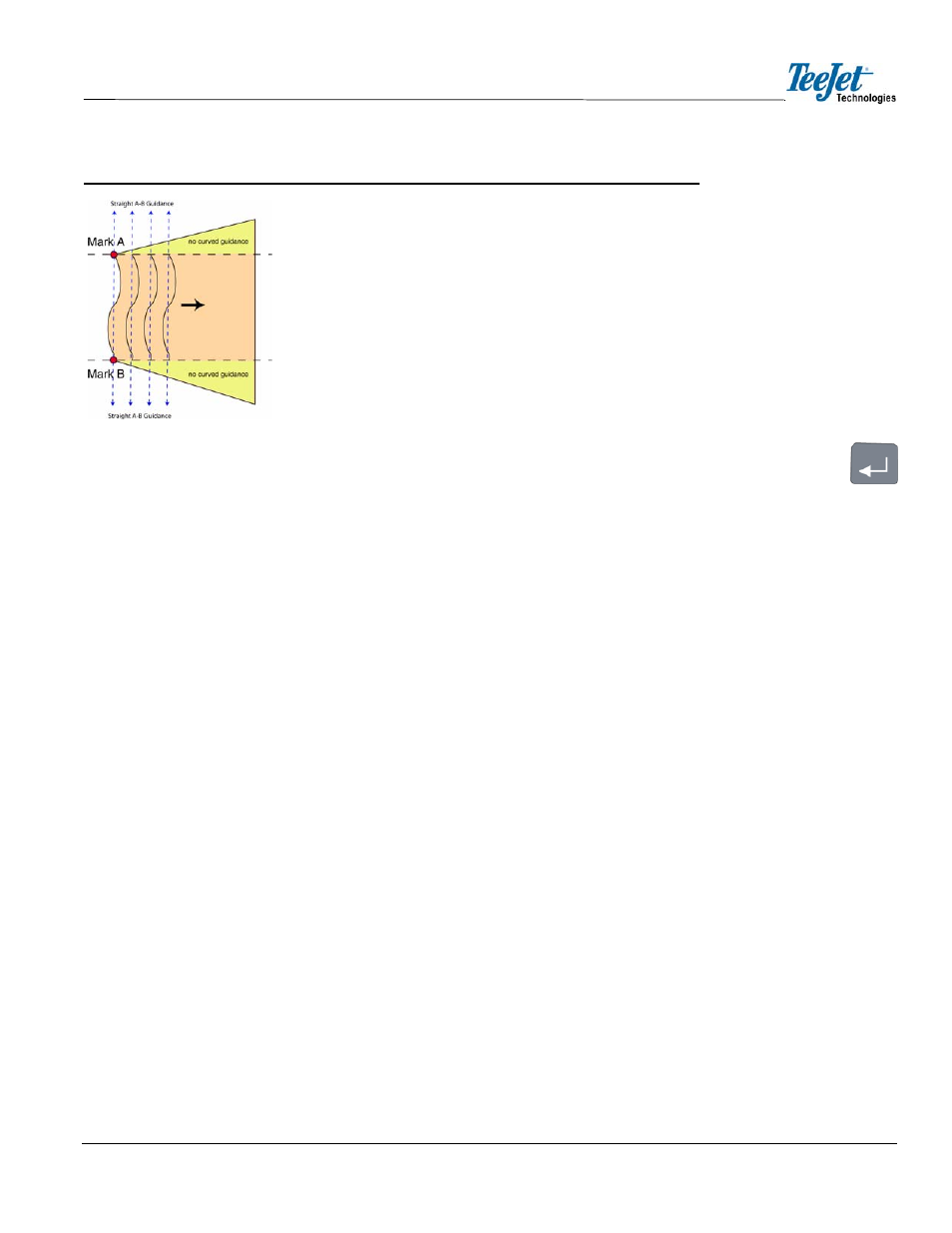

Figure 3-13: Curved A-B Guidance
The lightbar will immediately display . To establish Point B, press the Enter button once
the vehicle travels over the desired Point B location. The reference line is now established. The light-
bar will begin displaying X-Track guidance information as well as user-selected messages that were
defined during Lightbar Setup (refer to CHAPTER 2 - LIGHTBAR for additional information).
Once the reference guideline has been established, the operator can begin Curved AB Guidance.
The CenterLine software detects which guideline is the closest to the center line of the vehicle and
provides guidance information with respect to that line. As the vehicle travels across the field, new
guidelines parallel to the reference guideline are established based on the swath width value
entered during guidance setup. When navigating a turn at the end of the field, the lightbar will display
the distance to the next swath as illustrated in Figure 3-12.
APPLIED AREA DETECTION
CenterLine allows for the detection of a previously applied area. To use applied area detection, the
Lightbar Setup - Alarm menu field must be established prior to beginning guidance. Refer to CHAP-
TER 2 - ALARM for additional information on establishing the settings.
Applied Area Detection
Figure 3-14 illustrates how previously applied area detection is implemented. As the vehicle enters
an applied area, the lightbar will display , even if application is turned off. When the vehi-
cle exits the applied area, will no longer be displayed on the lightbar.
