CenterLine 2.02
98-05054 R6
29

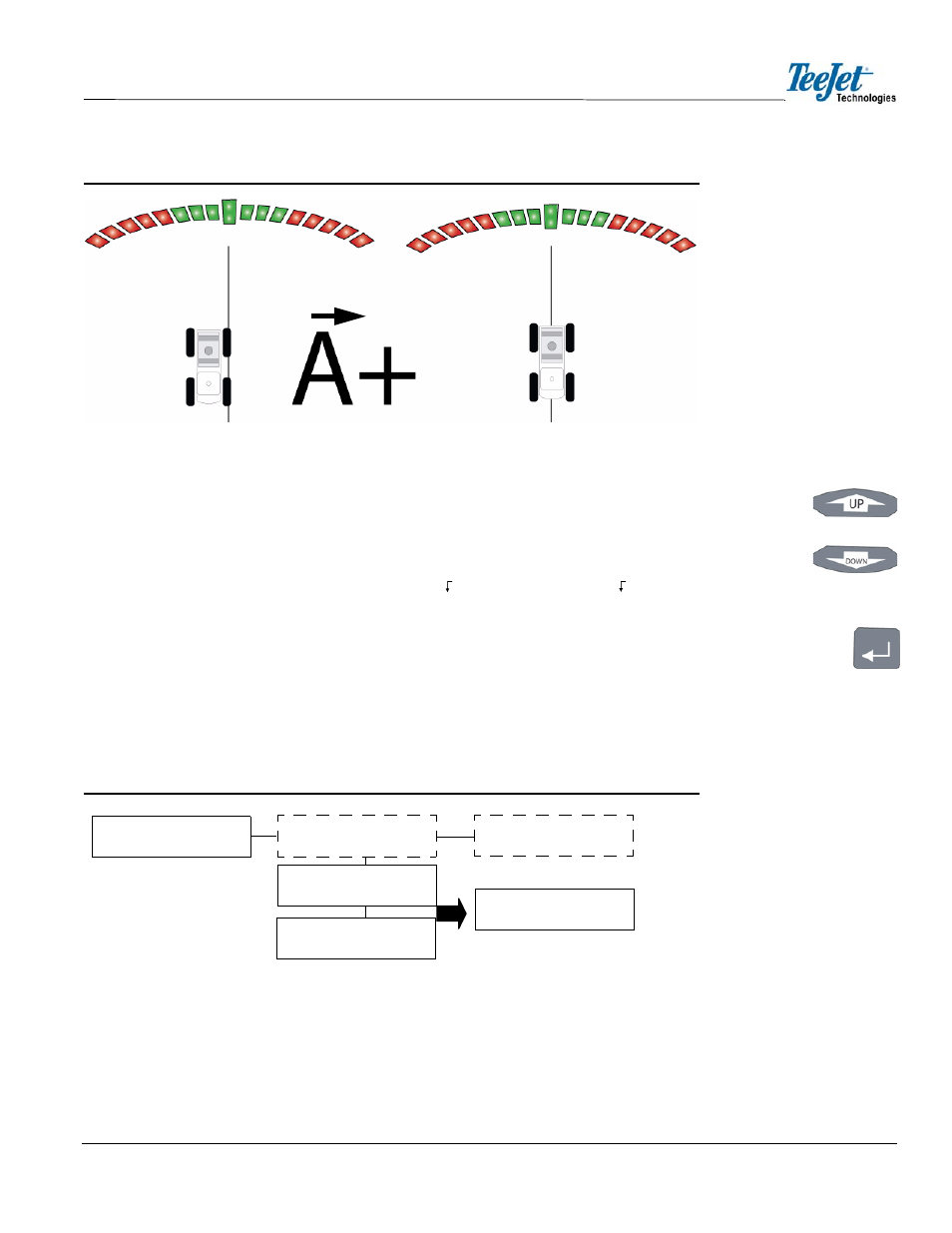

Figure 3-3: A+ Feature
Area Determination
The area of the current job or field is important. CenterLine allows the determination of the area of a
field by driving the perimeter. This can be accomplished while driving the first headland circuit during
Headland Guidance.
To determine the area of the field, use the Arrow buttons on the operation menu to locate .
Press the Enter button. The lightbar will display or . Use the Arrow buttons to
select the side of the swath or implement that is the closest to the field boundary. Press the Enter
button to begin area calculation. The lightbar will display < MAP BND> or . Once the
boundary is ready to be closed, scroll through the operation menu using the Arrow button until
is displayed. Press the Enter button to close the boundary and determine the area.
Pressing Enter at will insert a line between the starting location and the current location
and will use the shape to determine the area.
The area will automatically be determined when the vehicle drives within 15 feet / 4.5 meters of the
starting point. The bounded area is displayed on the lightbar as a part of the guidance message
stream for three minutes when stopped in an “applied” area. If a bounded area has already been
determined, the menu item will be available. Pressing the Enter button at the
option will display the current bounded area value.
Figure 3-4: Area Determination Flow
Boundary View 78.6 Ac
Close
Right
Left
Arrow buttons
Enter button
