CenterLine 2.02
98-05054 R6
37

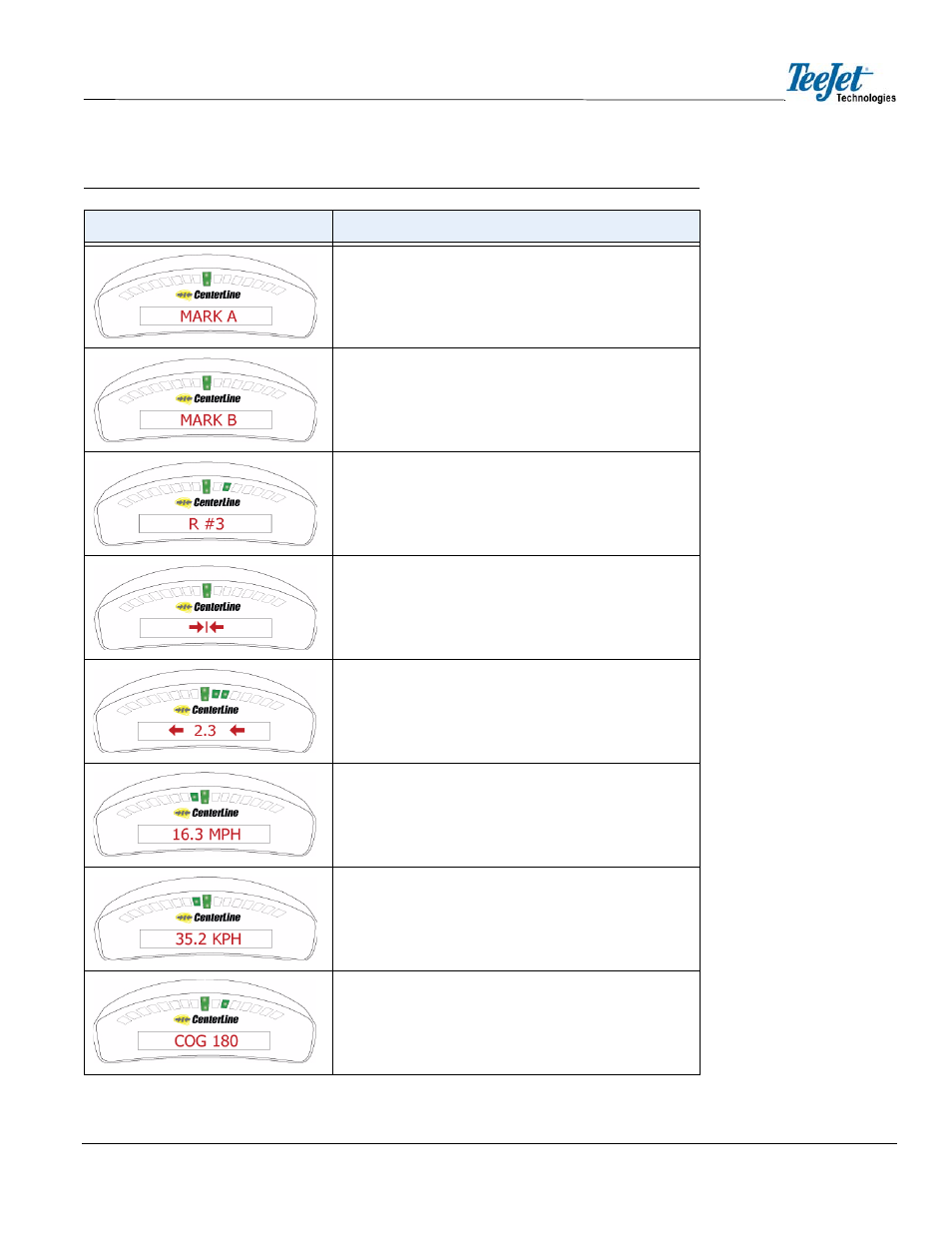

Table 3-1: Lightbar Index
Lightbar Description
Mark A. Displayed when establishing Point A of the reference
guideline.
Mark B. Displayed when establishing Point B of the reference
guideline.
Swath #. A user-selected lightbar message. When not on the
initial guideline, the first character is either L (left) or R (right) of
the initial guideline. The number identifies how many lines left
or right of the initial guideline.
X-Track. A user-defined lightbar message. This cross track
message is displayed when the vehicle is on the guideline and
there is no error.
X-Track Error. A user-defined lightbar message. In this exam-
ple, the operator should steer to the left 2.3 feet (assuming that
system units are established in US and the lightbar is set to
“Swath Mode”).
Ground Speed. A user-defined lightbar message indicating the
vehicle speed in miles per hour (MPH). The system units are
set to US.
Ground Speed. A user-defined lightbar message indicating the
vehicle speed in kilometers per hour (KPH). The system units
are set to Metric.
Course on Ground (COG). A user-defined lightbar message
indicating the vehicle’s heading in degrees 0 to 359. The exam-
ple to the left indicates the vehicle’s course on the ground is
due South (180 degrees).
