6 Chapter 2 - Setup

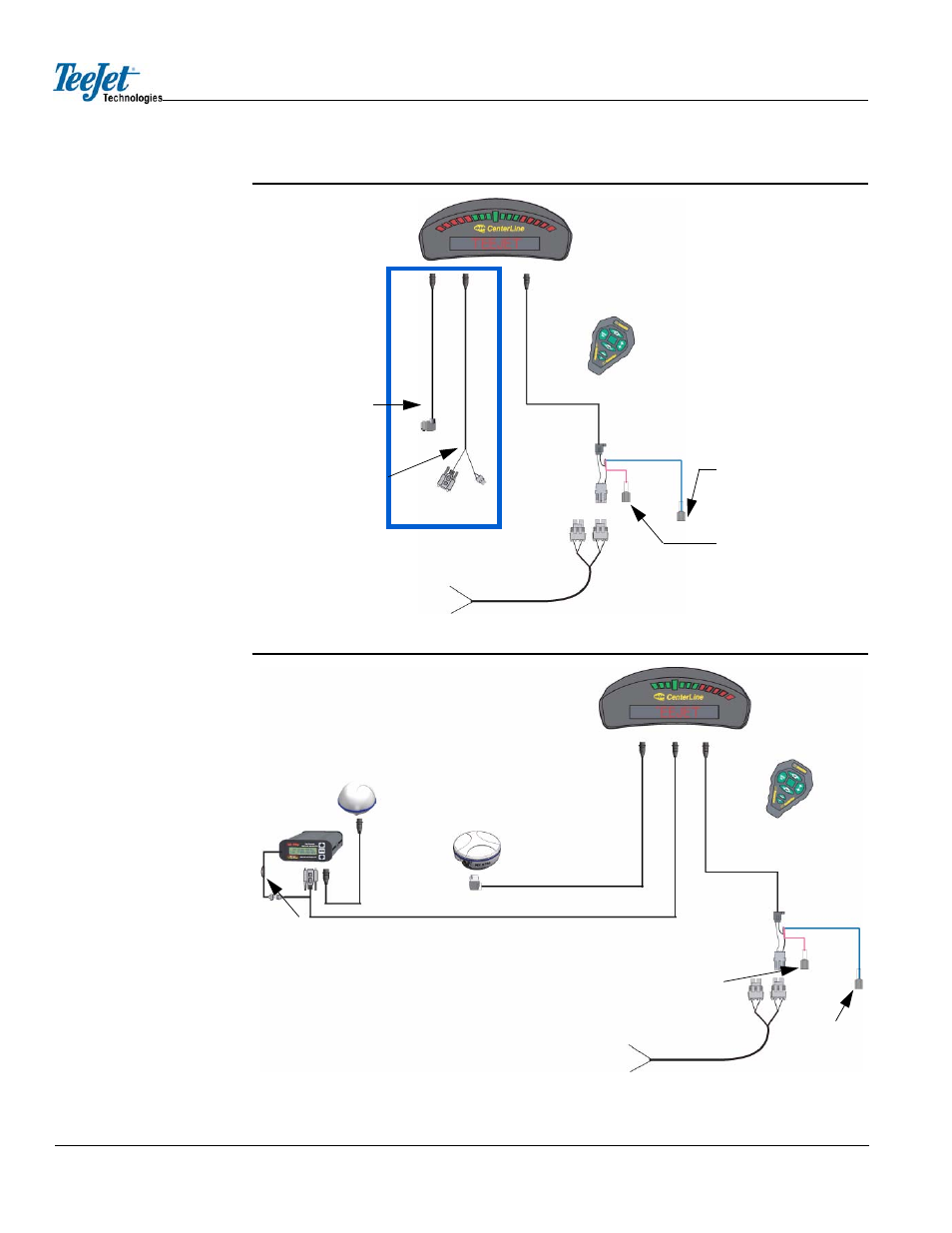

Figure 2-1: CenterLine Without DGPS Receiver
Figure 2-2: CenterLine With DGPS Receiver
Lightbar
78-50112
Wireless Remote
78-50107
CenterLine Power Cable
12’ / 4 m 45-05324
Power Cable
12’ / 4 m 45-05298
A GPS data cable is
required but not pro-
vided in the kit.
GPS Data Cable
15’ / 5 m
45-05337
Adapter Cable
15’ / 5 m
45-05338
Boom Sense +12V when
booms are ON
Ignition Sense +12V
when ignition is ON
5 Amp
to battery
Lightbar
78-50112
Wireless Remote
78-50107
CenterLine Power Cable
12’ / 4 m 45-05324
GPS Data Cable 15’ / 5 m
45-05337
GPS Data Cable 15’ / 5 m
45-05338
RX400P
78-50062
RX370P
78-50148
Power Cable
12’ / 4 m 45-05298
5 Amp
Ignition Sense +12V
when ignition is ON
Boom Sense
+12V when
booms are ON
Inline fuse
to battery
