Appendices ~ Appendix C: Control Panel 90
Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760
VOLUME CONTROL PANEL 910-155-051
FLAT HEAD SCREWS (2)
INCLUDED WITH FACEPLATE
460-155-001 FACEPLATE
740-155-051 FACIA PLATE
915-155-051 ASSEMBLY, VOLUME CONTROL PANEL INCLUDES:
820-155-051 VOLUME CONTROL PANEL PCB ASSEMBLY W/TWO FOUR-PIN PHOENIX CONNECTORS
740-155-052 CONTROL PANEL MOUNTING BRACKET
625-100-006 ELASTOMER CONDUCTIVE RUBBER SWITCH PADS (3 EACH)
460-155-002 WALL ENCLOSURE 2.25 X 3.25
681-010-616 SCREWS
(2) 6-32 X 1 INCH PPH
673-016-104
CONN TERM BLOCK/
F EURO 4 P
(2 EACH)

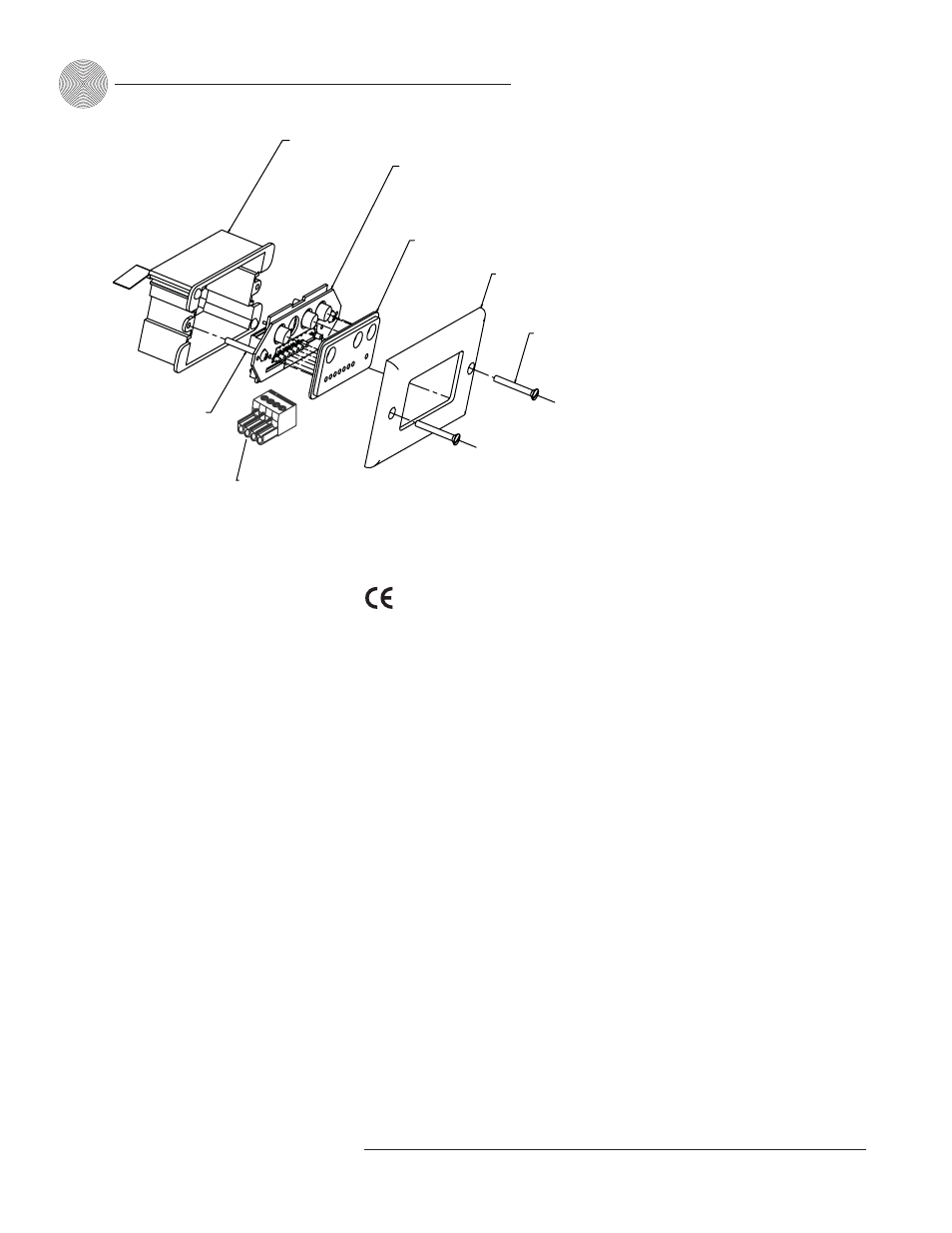

Figure C.6. Volume Control Panel Assembly
