6.

Connect one connector terminator block to the Remote Panel on the

XAP/PSR unit. Route the other end of the cable through the back of the

electrical wall box and connect the terminator block to the Control Panel.

7.

To use a second Control Panel, connect it to the unused Remote Panel

connector on the XAP/PSR unit or the unused connector on the first Control

Panel. You can daisy-chain up to six Control Panels to each Remote Panel

connector. Total cable run depends on the number of Control Panels used.

The distance information in the table at left is based on Cat. 5 cable with a

nominal resistance of 27ž per 1,000 feet (305 meters). All distances refer to

total cable runs from a single Remote Panel connector. For information

about extending beyond 800 feet (244 meters) total with six Control Panels,

call Technical Support at 1-800-283-5936.

8.

As shown in Figures C.5 and C.6, use the supplied pan-head screws to install

the Control Panel PCB assembly to the electrical wall box.

9.

To install the facia plate, position it over the conductive rubber switch pads

on the PCB assembly, as shown in Figures C.5 and C.6.

10. Mount the faceplate over the rubber switch pads, using the two flat HD

screws.

# of Control Panels

Maximum Distance

1 3,000

ft/914

meters

2 2,500

ft/762

meters

3 1,600

ft/488

meters

4 1,200

ft/366

meters

5 1,000

ft/305

meters

6 800

ft/244

meters

Figure C.4. Control panel distance chart

Control Panel Assembly

Dimensions (both

versions): 1.8"/4.6cm W

x 4.125" /10.5cm L (not including

faceplate or electrical box).

-

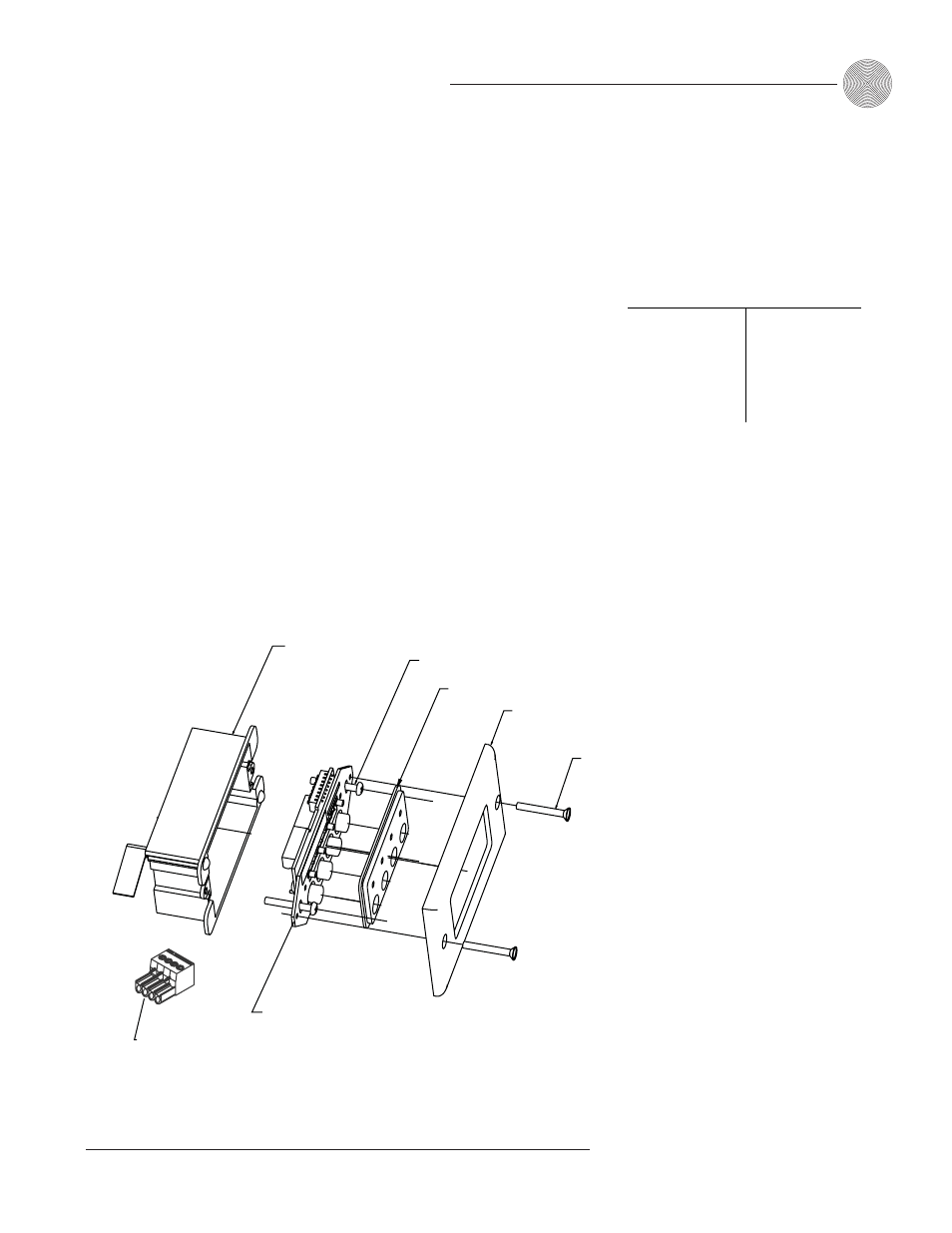

915-155-050 ASSEMBLY, SELECT CONTROL PANEL INCLUDES:

820-155-050 CONTROL PANEL PCB ASSEMBLY W/TWO FOUR-PIN PHOENIX CONNECTORS

740-155-052 CONTROL PANEL MOUNTING BRACKET

625-100-006 ELASTOMER CONDUCTIVE RUBBER SWITCH PADS (4 EACH)

SELECT CONTROL PANEL 910-155-050

460-155-002 WALL ENCLOSURE 2.25 X 3.25 INCHES

681-010-616 SCREWS (2) 6-32 X 1 INCH PPH

740-155-050 FACIA PLATE

460-155-001 FACEPLATE

FLAT HEAD SCREWS (2)

INCLUDED WITH FACEPLATE

673-016-104

CONN TERM BLOCK/

F EURO 4 P

(2 EACH)

Figure C.5. Select Control Panel Assembly
