To program the Volume panel

1. Select

ID number for the remote from the Select Remote ID list.

Click

Change Name to create a more descriptive name (limit 20

characters) for the remote which is displayed in addition to the remote

number in the Select Remote ID list. The name is also updated on the

graphic label.

From the Remote Type list, select

Volume. The Control Panel graphic will

change to match your selection.

Select the button or LED you want to program from the

Button/LED

Selection list. You can also select the button or LED by clicking directly on

the picture of the Volume panel.

The default numbers on the left of the Volume panel LEDs represent gain

levels in decibels. To change a level, click on the LED and then select the

level from the Gain list at the bottom of the window. You can also set the

upper and lower limits of gain on LEDs L2 and L8 and then click Auto

Scale, which automatically assigns values to LEDs L3-L7 on a distributed

scale.

5. Click

the

Active Command or Inactive Command button to set the

command for operation when the button is active or inactive.

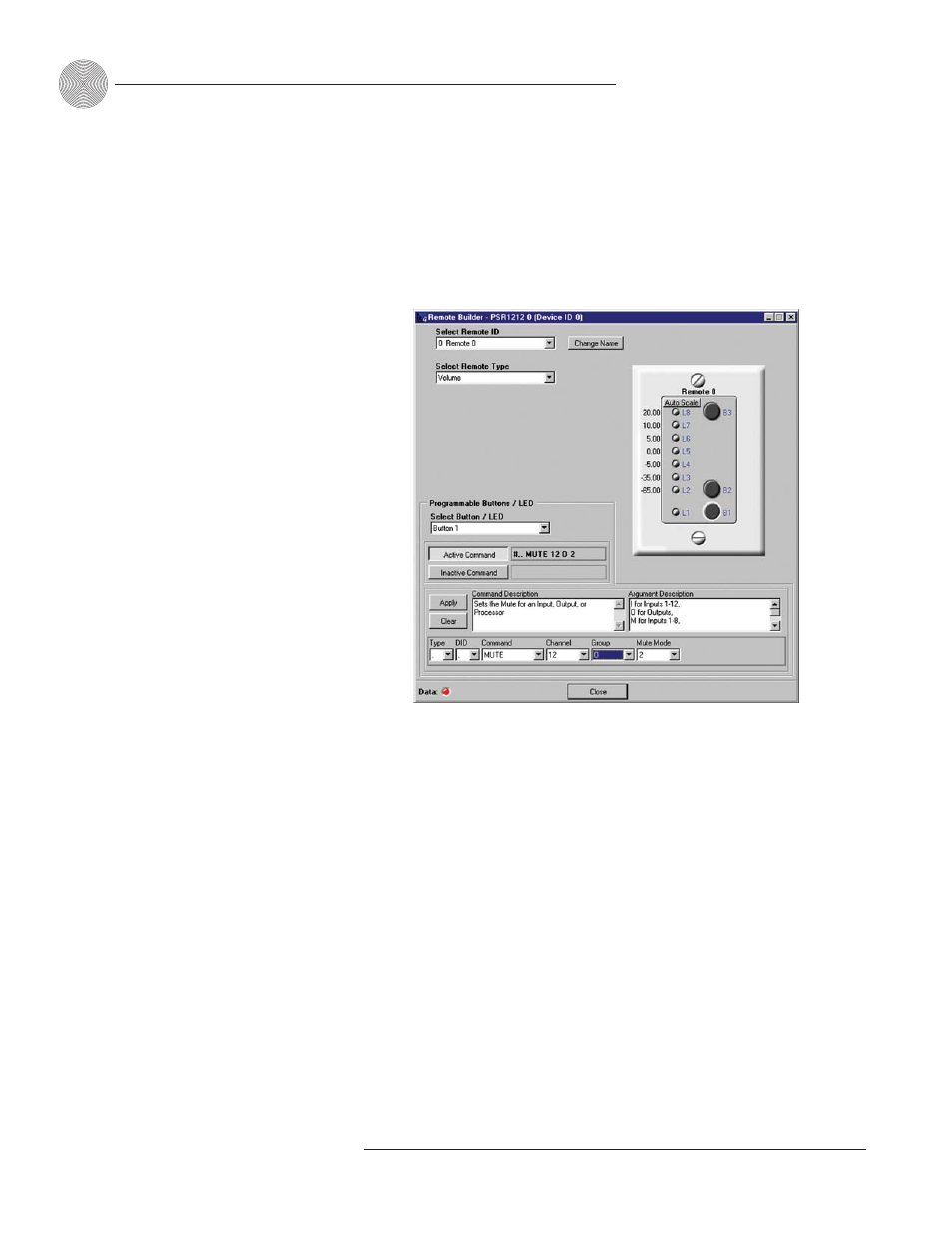

Figure 6.5. Volume Panel selected in the Remote Builder

Each Control Panel

button can be

programmed to respond

like a momentary or latching

button. A command can be

programmed to activate or

deactivate a particular function.

If you want to program

different button assign-

ments for use in a preset,

you will need to open the Remote

Builder from the Preset

Configuration pane (see page 55)

and select Use in Preset.

Up to six control panels

(or five control panels

and one IR remote) can

be connected to each of the RS-

485 ports. In addition to

selecting the ID number in the

software, you will also need to

use the DIP switches on the

control panel to assign the Device

ID. See Appendix C: Control
