Appendices ~ Appendix E: Serial Commands 102
Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760
FILTER - Filter Adjust
This command selects/reports the setting of filters.
Command form: DEVICE FILTER [Type]
[Frequency] [Gain] [Bandwidth]
Argument details
Name Description

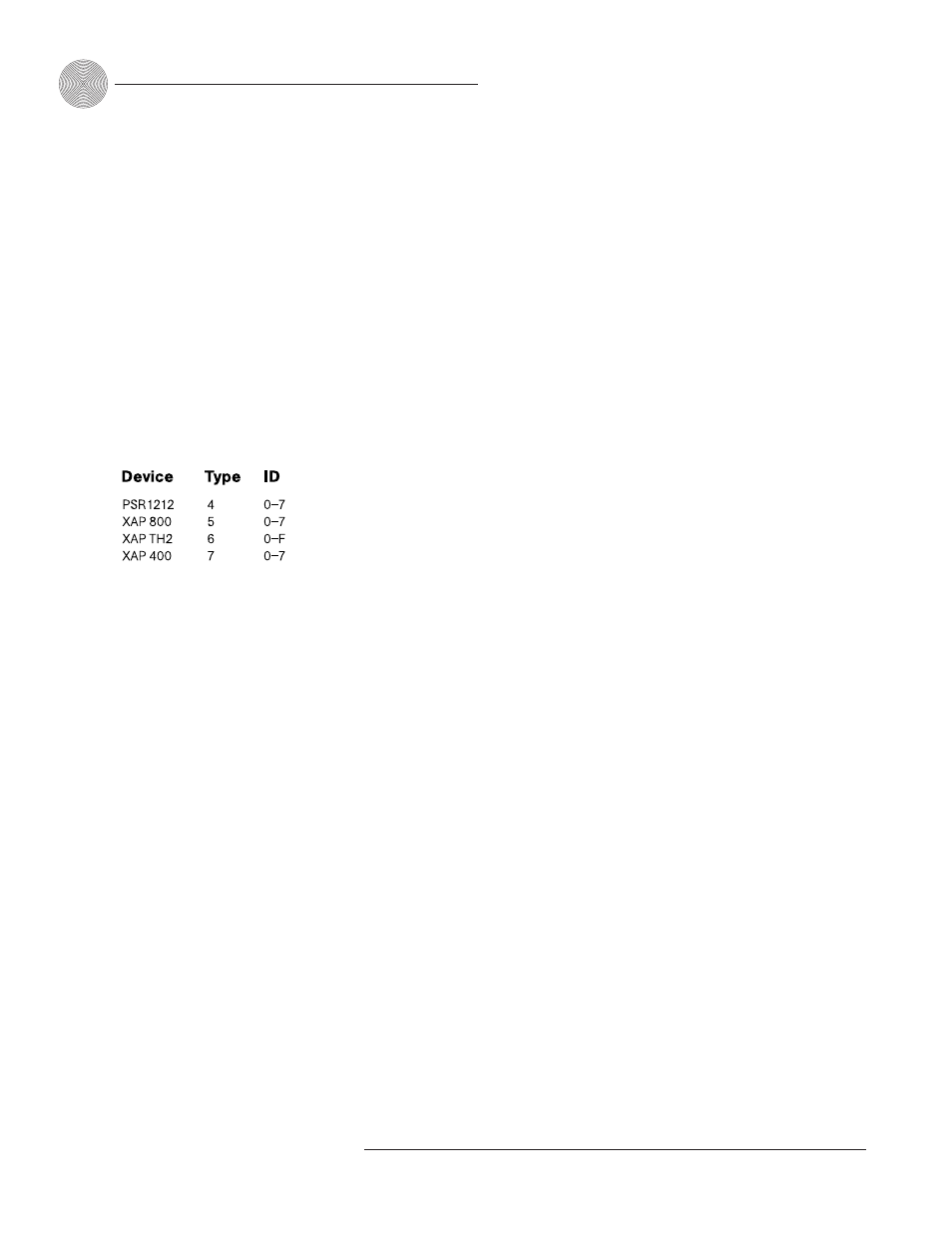

Device 0–7 or * to select all units
FILTER Command form
Channel See Groups and Channels, page 93
Group See Groups and Channels, page 93
Node 1–4 (selects mic input filter)
1–15 (selects processing channel filter)
Name Description Units
Type 0 = None, 1 = All Pass, 2 = Low Pass,
3 = High Pass, 4 = Low Shelving,
5 = High Shelving, 6 = Parametric Equalizer,
7 = CD Horn, 8 = Bessel Crossover,
9 = Butterworth Crossover,
10 = Linkwitz-Riley Crossover, 11 = Notch,
Null to return the current mode
Frequency 0 for Null (Type 0) Hz
20 to 20,000 (Type 1–6, 8–11) Hz
500 to 5,000 (Type 7) Hz
Gain 0 for Null (Type 0–3, 7, 11) dB
-15.00 to 15.00 (Type 4–6) dB per octave
12, 18, 24 (Type 8–9) dB per octave
12, 24 (Type 10) dB per octave
-80 nonadjustable (Type 11)
Bandwidth 0 to Null (Type 0–5, 7)
.05–5.00 (Type 6, 11)
2 = low pass, 3 = high pass (Type 8–10)
Examples
#40 FILTER 1 M 3 2 200 On PSR1212 unit 0 (#40) the filter (FILTER) for mic
( M) channel 1, node 3 is set as a low-pass filter (2) at 200Hz.
#41 FILTER B P 2 4 3000 -10 On PSR1212 unit 1 (#41) the filter (FILTER)
for processing ( P) channel B, node 2, is set as a low shelving (4) filter at 3000Hz
and a gain of -10dB.
#42 FILTER 3 M 2 6 5000 -15 1.00 On PSR1212 unit 2 (#42), the filter
( FILTER) for mic (M) channel 3, node 2, is set as a PEQ (6) with a center
frequency of 5000Hz, a bandwidth of 1.00, and a gain of -15dB.
#43 FILTER B P 2 7 4000 On PSR1212 unit 3 (#43), the filter (FILTER) for
processing ( P) channel B, node 2, is set as a CD Horn (7) at a frequency of
4000Hz.
