Outputs 1–12
The PSR1212 has 12 line level outputs for sending audio to recorders or amplifiers.
To open the Outputs 1–12 configuration window, click the Outputs 1–12 button on
the Flow Screen. The Outputs 1–12 button on the Matrix Screen will also open this
window.
These line level outputs are balanced. The nominal output level is 0dBu. The
outputs can adjust from -65 to 20dBu.
To select an output channel, click a blank area in the output pane. If you click
on the output label, a secondary window will open allowing you to rename the
output. The background color for the selected output channel will be light gray.
The configurable properties of these outputs are defined in this section.
Mute
Mute mutes the output channel. The light on the button illuminates red when Mute is
activated. Default is off (unmuted).
NOM
NOM (constant gain) maintains a constant output level as inputs routed to the output
are gated on and off. The PSR1212 reduces the output gain (at the output) for mics
based on the number of mics gated on and routed to that output. When using NOM
over the expansion bus, only the first four audio channels (O, P, Q, and R) support

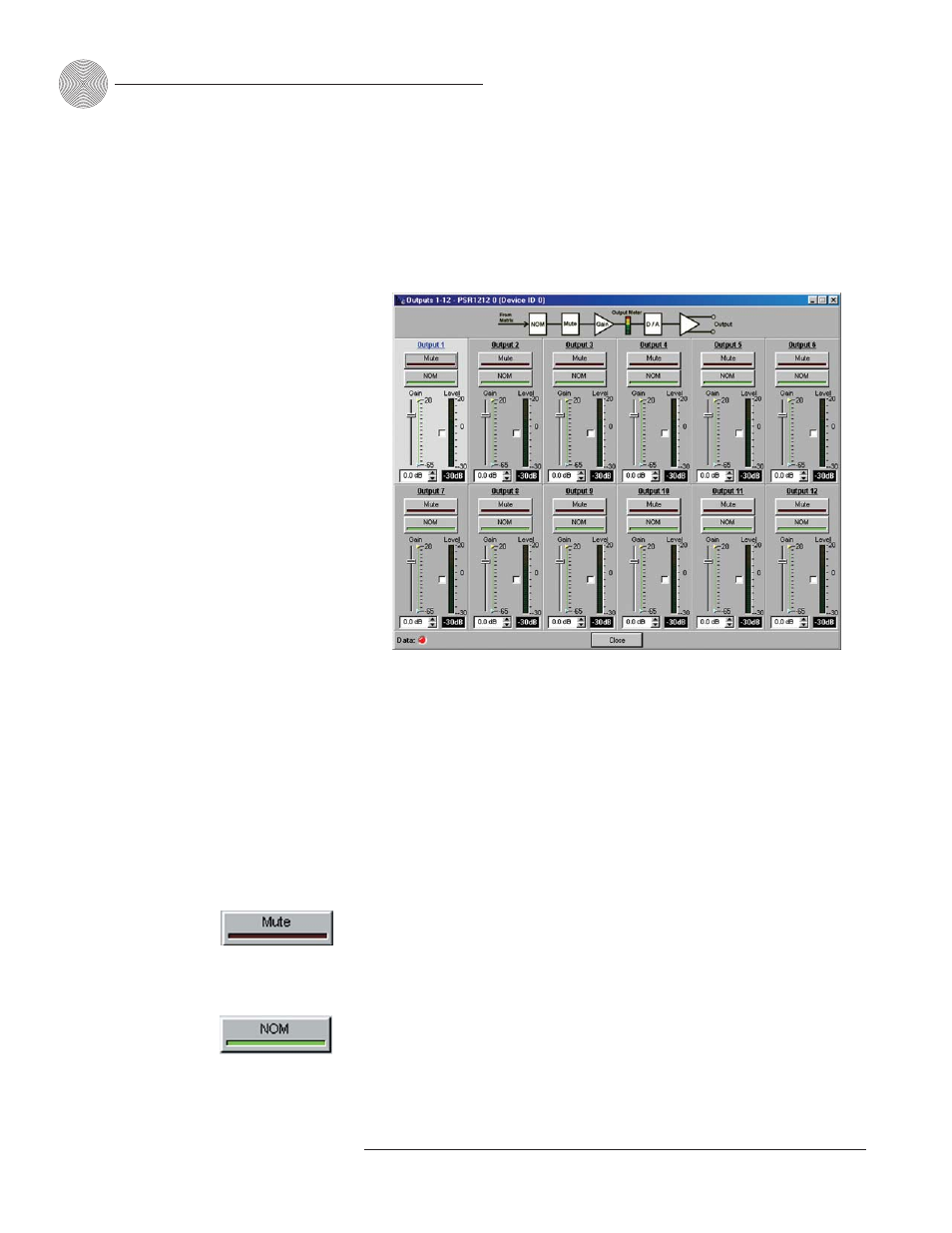

Figure 3.41. Outputs 1-12 configuration window
