The PSR1212’s front panel is intuitive to operate, thanks to its simple interface: a
2x16 character LCD, menu buttons, and a peak-level LED bar meter. Although most
of the PSR1212’s features are programmed with G-Ware software (see page 23),
the front panel can be used for simple adjustments and meter monitoring.
When power is applied to the PSR1212, the LCD panel will first read
INITIALIZING. If an error is displayed, contact technical support. When
initialization is complete, “PSR1212” is displayed on the top line and “Unit 0” is
displayed on the bottom line.
LCD menu tree
The menu tree features five main menus, each with submenus. These branches
typically end when an adjustable parameter or viewable value is reached. The
diagram below shows the LCD menu tree.
LCD Programming
Pressing Esc at the top
of the tree does nothing.
G-Ware software is
required to complete
system setup.
-
-

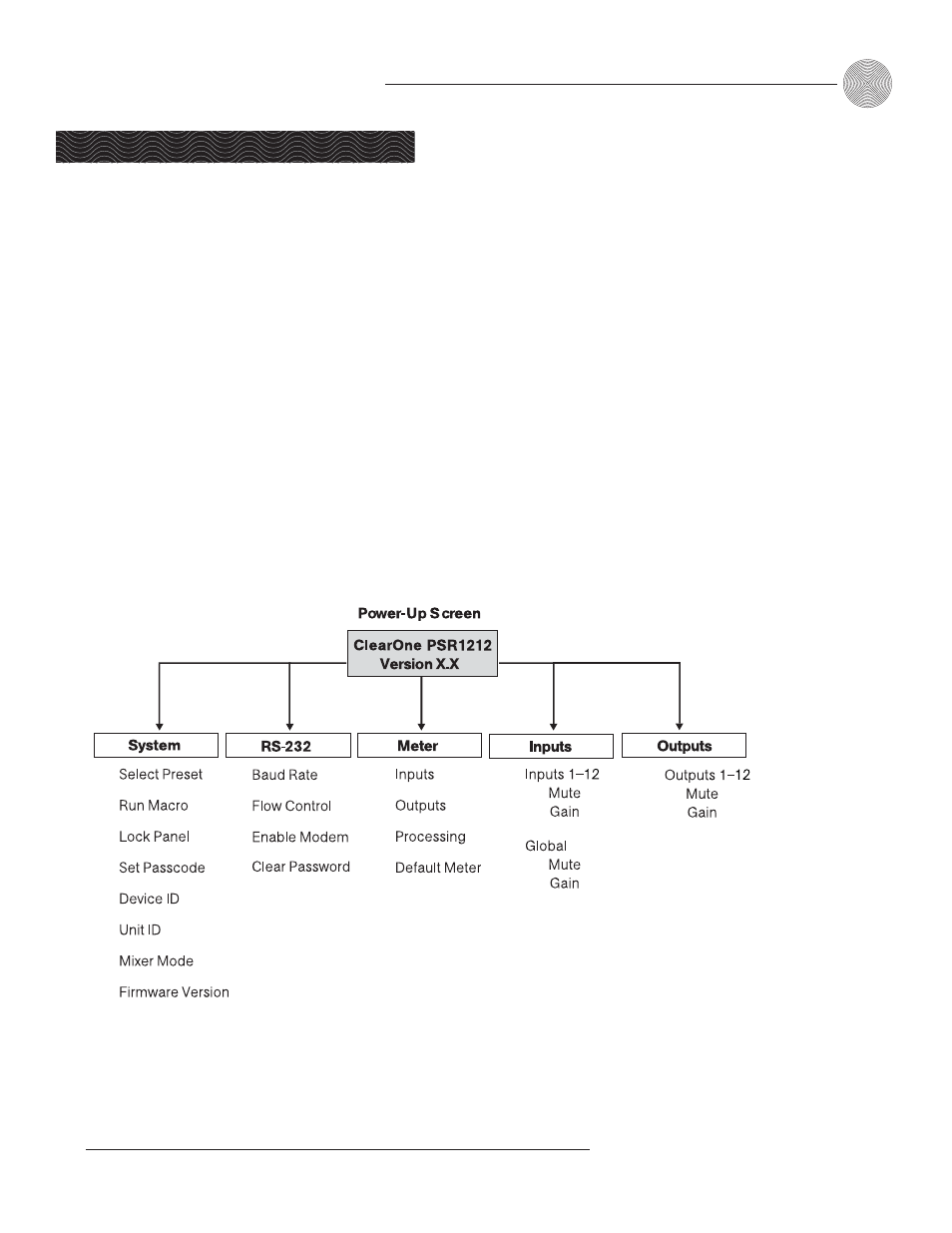

Figure 2.6. LCD menu tree
