67

Operation

~ Utilities

Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760

4. Repeat steps 1–3 to select the second second unit, site, or file for

comparison.

When you click Open, G-Ware automatically compares information from the

selected items and displays a table of parameters which differ (note that the

actual differences are not displayed at this point). This process can take a

minute or two.

5. To view the difference(s) between two sources on a single parameter, select

the row in the table you want to examine, then click

Preview. This opens

the Print Preview window, which shows what the differences are.

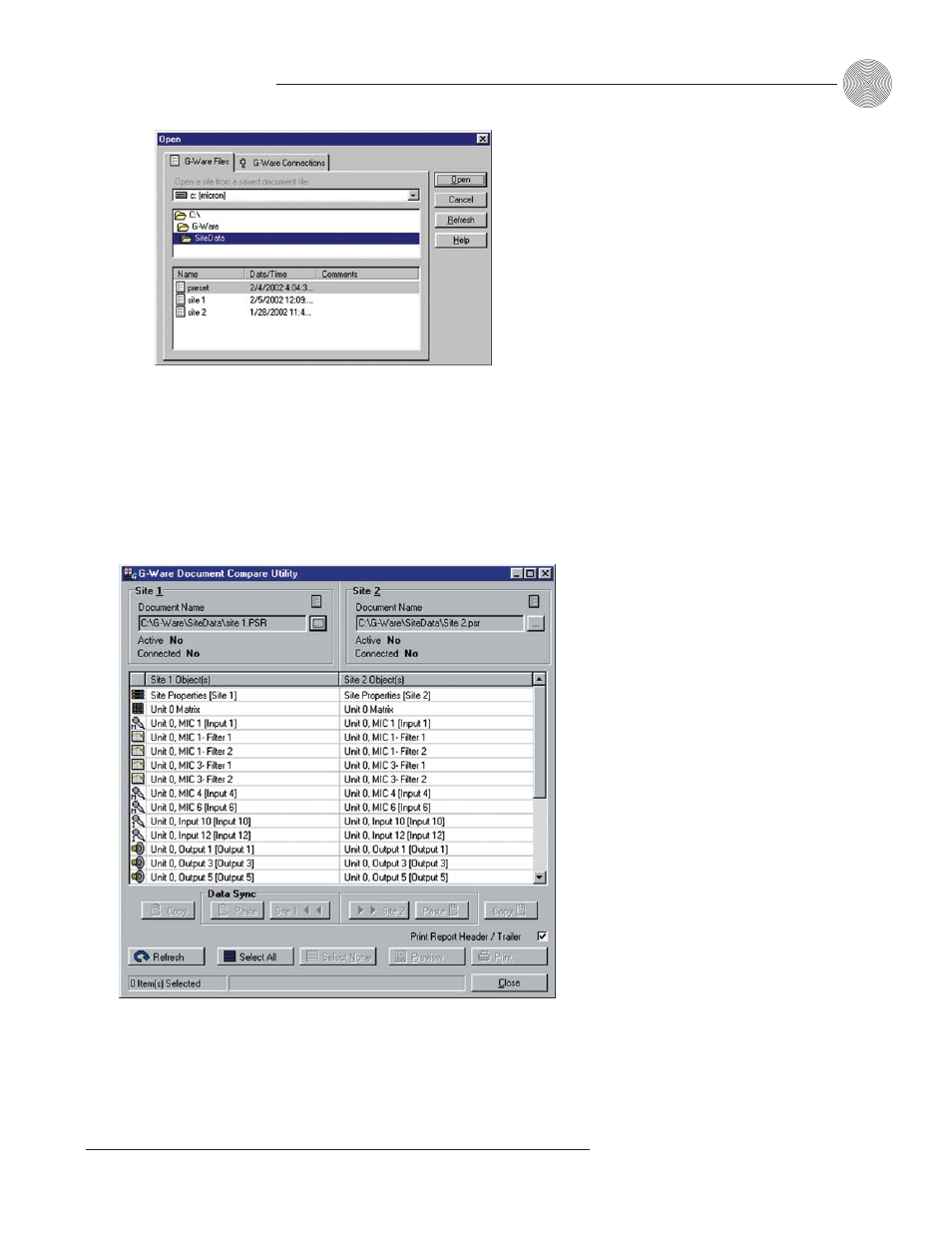

Figure 5.6. Document Compare Utility showing two PSR1212 sites. The items

listed in the Site 1 and Site 2 columns show where the differences are found.

Figure 5.5. Open window
