Ensure that the following items were received with your shipment:

Introduction

~ Unpacking

Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760

ClearOne is not

responsible for product

damage incurred during

shipment. You must make claims

directly with the carrier. Inspect

your shipment carefully for

obvious signs of damage. If the

shipment appears to be damaged,

retain the original boxes and

packing material for inspection

by the carrier. Contact your

carrier immediately.

Unpacking

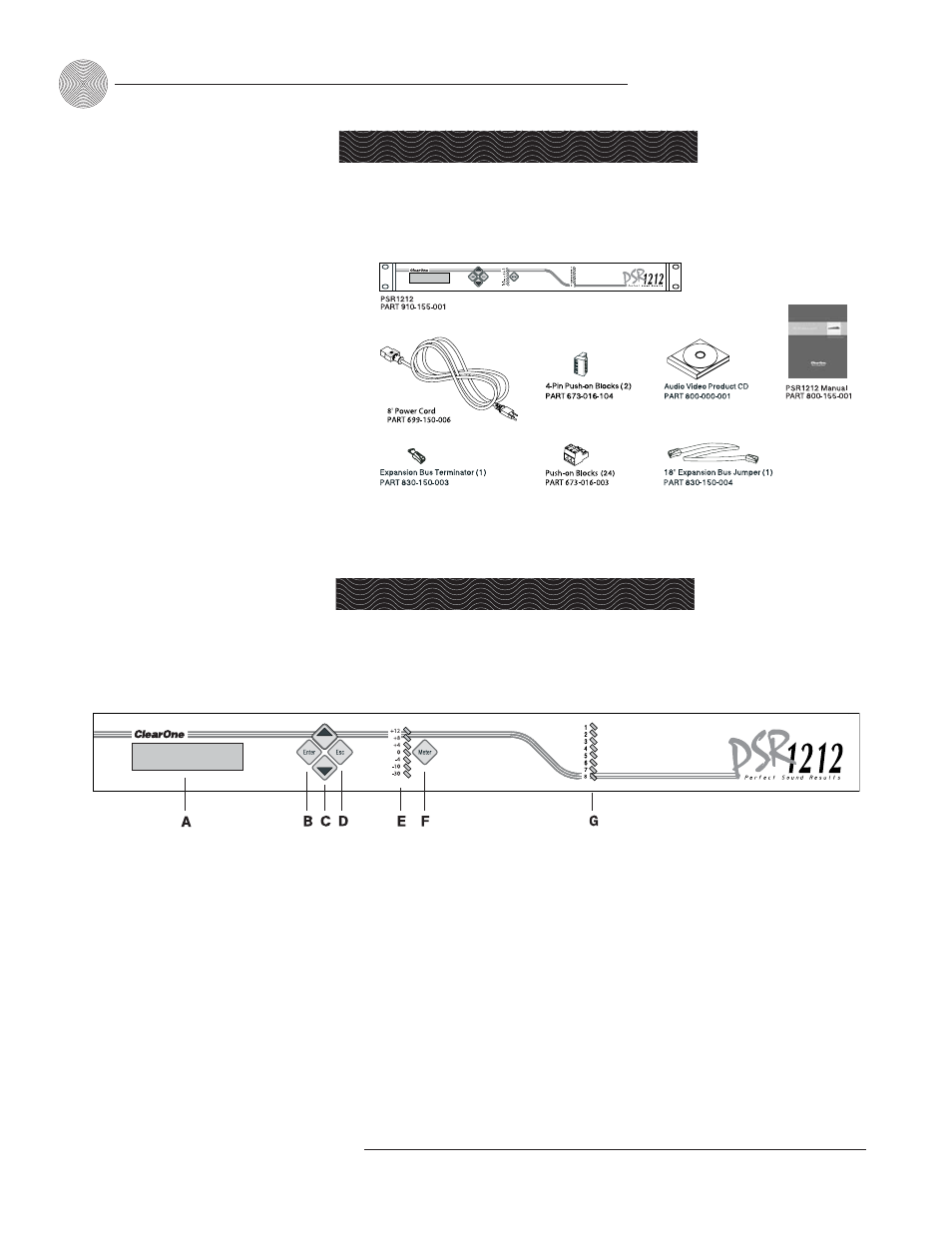

Figure 1.1. Equipment included with PSR1212 unit

Front panel

LCD. This display is for PSR1212 setup in conjunction with the four

associated front-panel buttons [B, C, and D]. Baud rate and flow control

must be configured from the front panel; see the LCD Menu Tree on page 13

for the location of these in the menu system. Other functions accessed via

the front panel include system options, RS-232 configuration,

troubleshooting, and level readings.

Enter. This button is used when programming the PSR1212 via the LCD

window. To move deeper in the menu or execute a selected parameter, press

the Enter button.

Controls and Connections

Figure 1.2. Front panel controls

Front panel buttons are

also used to enter the

front panel passcode.

See page 26 for more details.
