Compaq AA-RHGWC-TE User Manual
Page 40

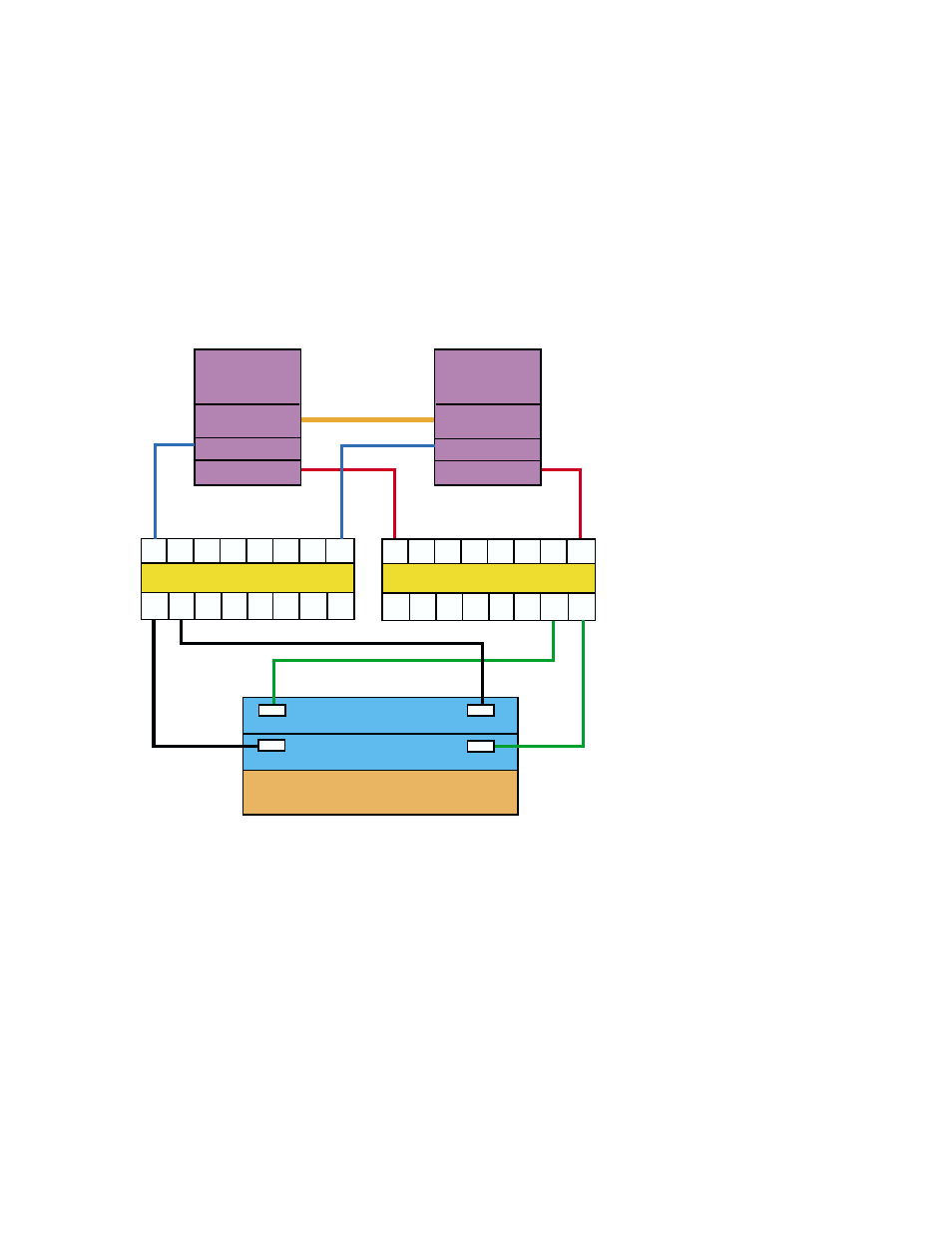

Figure 1–8: NSPOF Fibre Channel Cluster Using HSG80s in Multiple-Bus
Failover Mode
KGPSA
Member
System
2
KGPSA
KGPSA
Member
System
1
KGPSA
Memory
Channel
Memory
Channel
Memory Channel
Interface
ZK-1765U-AI
Fibre Channel Switch
Fibre Channel Switch
HSG 80
Controller A
HSG 80
Controller B
RA8000/ESA12000
Port 1
Port 2
Port 1
Port 2
1.6 Overview of Setting Up the TruCluster Server Hardware
Configuration
To set up a TruCluster Server hardware configuration, follow these steps:
1.
Plan your hardware configuration. (See Chapter 3, Chapter 4,
Chapter 6, Chapter 9, and Chapter 10.)
2.
Draw a diagram of your configuration.
3.
Compare your diagram with the examples in Chapter 3, Chapter 6,
and Chapter 9.
4.
Identify all devices, cables, SCSI adapters, and so forth. Use the
diagram you just constructed.
1–16 Introduction
