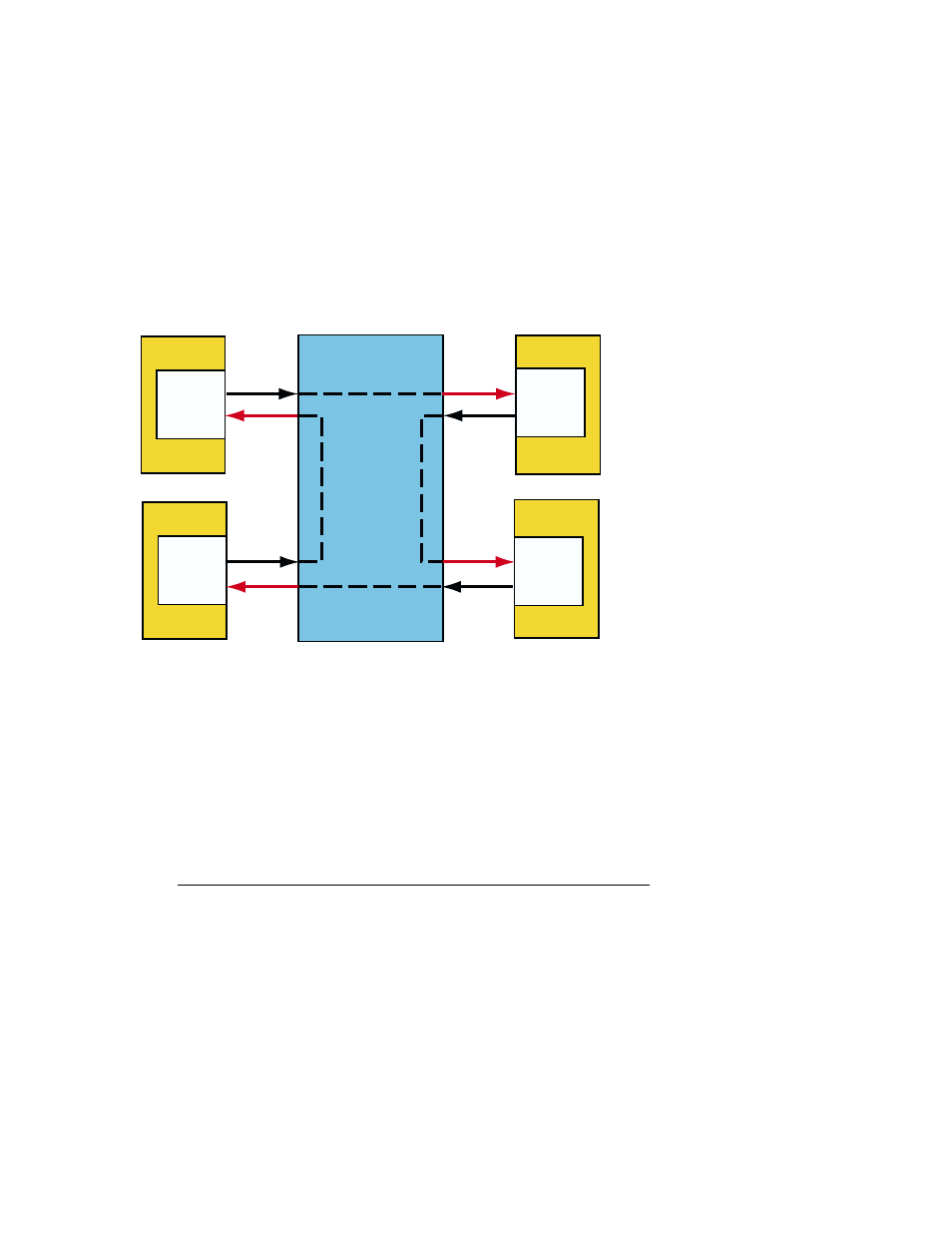

Figure 6–3: Arbitrated Loop Topology
NL_Port NL_Port
Node 1
Node 2
NL_Port NL_Port
Transmit
Receive
Transmit
Receive Transmit
Receive
Transmit
Receive
Node 3
Node 4
Hub
ZK-1535U-AI
______________________ Note _______________________
The arbitrated loop topology is not supported by the Tru64 UNIX
Version 5.1 or TruCluster Server Version 5.1 products.
When support for Fibre Channel arbitrated loop is announced in
the TruCluster Server Software Product Description (SPD), the
technical update version of this information will be modified to
include arbitrated loop. The SPD will provide a pointer to the
technical update.
6.3 Example Fibre Channel Configurations Supported by
TruCluster Server
This section provides diagrams of some of the configurations supported by
TruCluster Server Version 5.1. Diagrams are provided for both transparent
failover mode and multiple-bus failover mode.
Using Fibre Channel Storage 6–9
