______________________ Note _______________________
Ensure that there is no conflict with tape drive and host bus
adapter SCSI IDs.

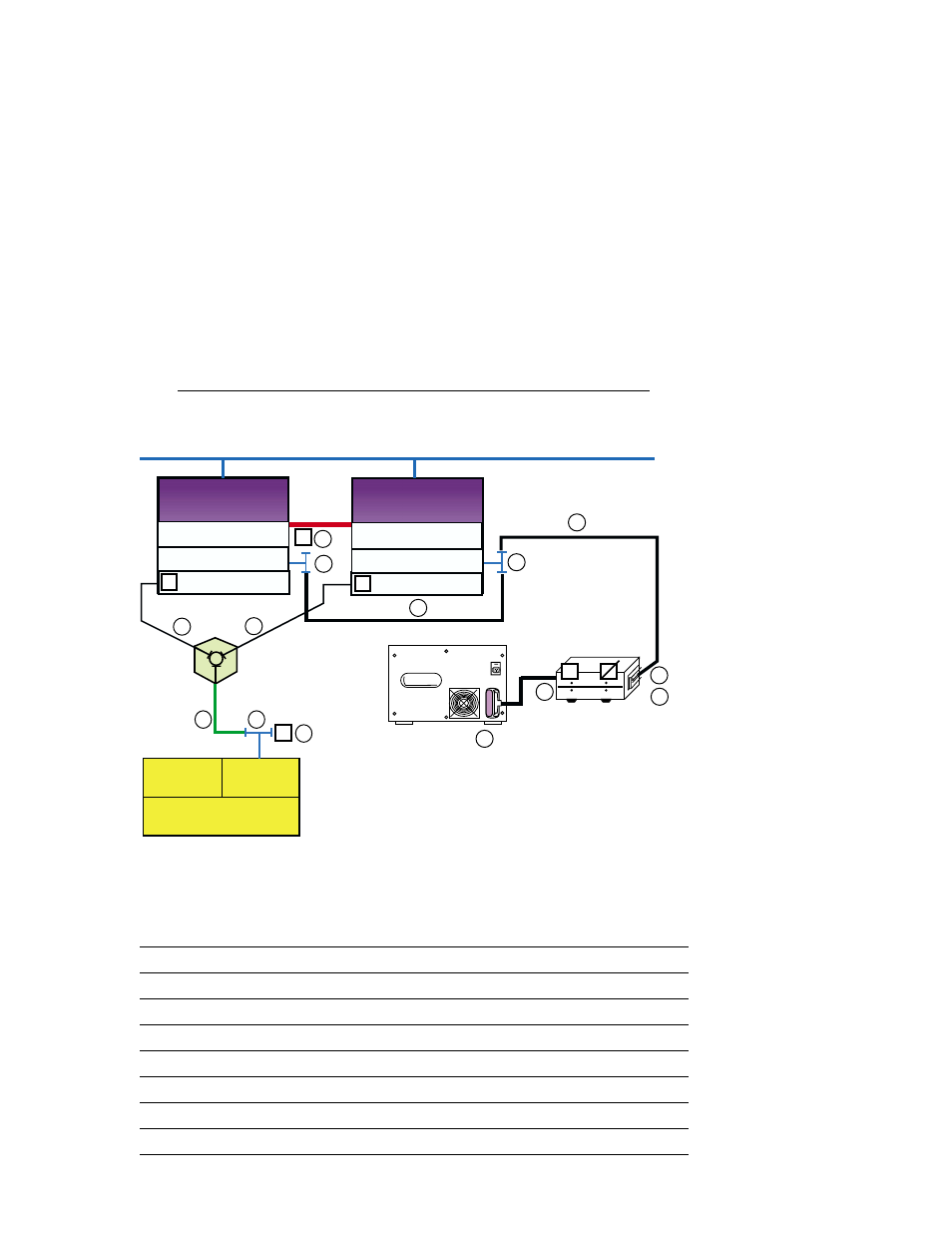

Figure 8–7: Cabling a Shared SCSI Bus with a TZ885
KZPBA-CB (ID 7)
Memory
Channel
Interface
Memory Channel
KZPBA-CB (ID 6)
Memory Channel
Member
System
2 Member
System
1
DS-DWZZH-03
T
T
T
2
1
4
1
10
3
StorageWorks
RAID Array 7000
HSZ70 HSZ70
Controller B Controller A
T
KZPBA-CB (ID 7) 5 5
6
6
7
7
8
9
KZPBA-CB (ID 6)
T T
Network
ZK-1760U-AI
DWZZB-AA
T
T T
TZ885
Table 8–6 shows the components used to create the cluster shown in
Figure 8–7.
Table 8–6: Hardware Components Used to Create the Configuration Shown
in Figure 8–6
Callout Number Description
1 BN38C or BN38D cable a
2 BN37A cable b
3 H8861-AA VHDCI trilink connector
4 H8863-AA VHDCI terminator
5 BN21W-0B Y cable
6 H879-AA terminator
7 328215-00X, BN21K, or BN21L cable c
Configuring a Shared SCSI Bus for Tape Drive Use 8–19
