Figure 9–15 shows a sample configuration that uses KZPSA-BB SCSI
adapters, a DS-DWZZH-05 UltraSCSI hub, and an HSZ50 RAID array
controller.

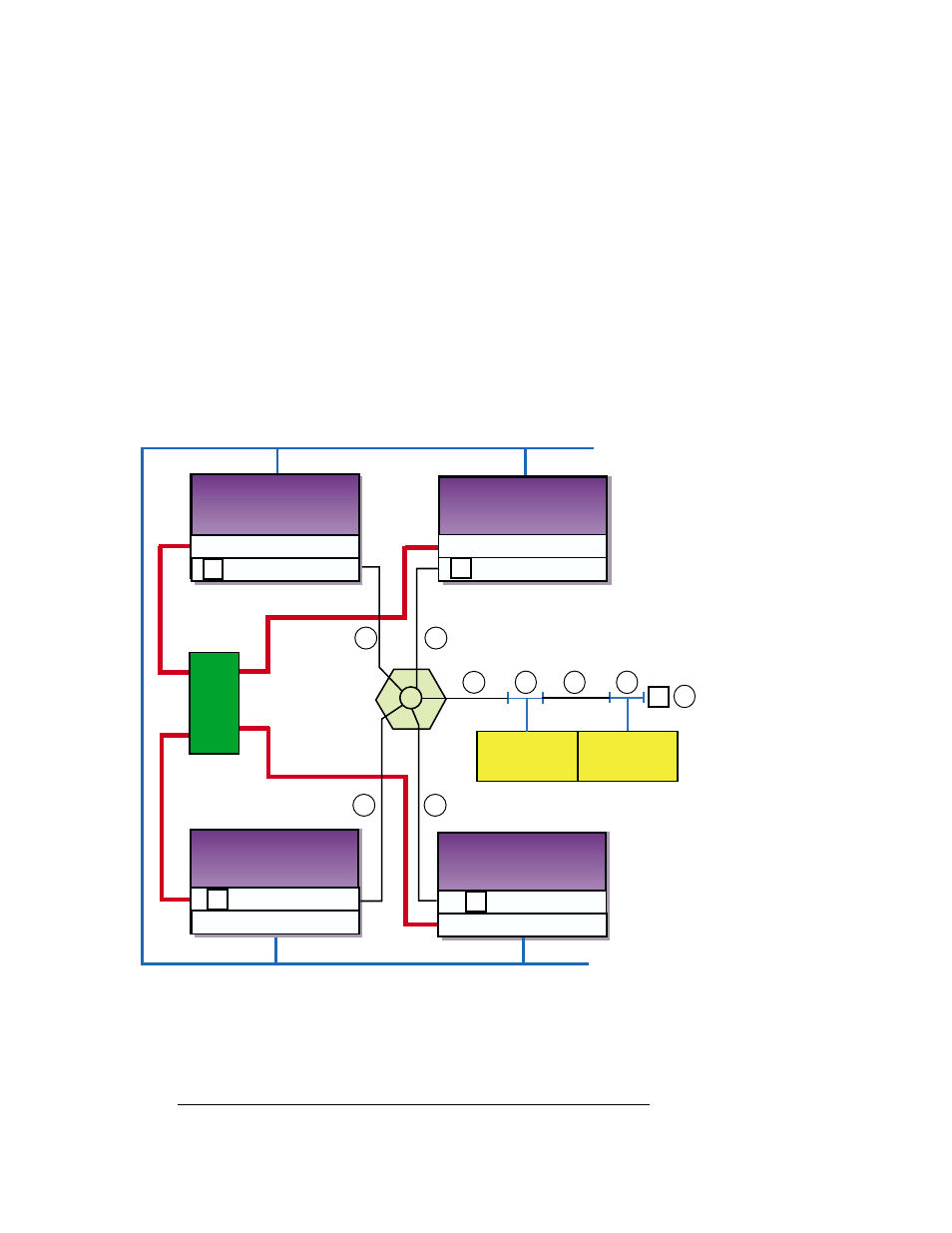

Figure 9–15: TruCluster Server Cluster Using KZPSA-BB SCSI Adapters, a
DS-DWZZH-05 UltraSCSI Hub, and an HSZ50 RAID Array Controller
KZPSA-BB (ID 5)
Network
Memory Channel
Member
System
2
2
1
1
2
T
3
4
HSZ50
Controller A Controller B
HSZ50
T
T
T
T DS-DWZZH-05
1
KZPSA-BB (ID 4)
Memory Channel
Member
System
1
T
Memory Channel
Member
System
4
KZPSA-BB (ID 7) T
Memory Channel
Member
System
3
KZPSA-BB (ID 6) T
MC
Hub
T
1
T
1
ZK-1767U-AI
______________________ Note _______________________
The systems shown in Figure 9–15 use KZPSA-BB SCSI adapters.
They could be KZPBA-CB UltraSCSI adapters without changing
any cables in the configuration.
Table 9–4 shows the components used to create the cluster shown in
Figure 9–15.
