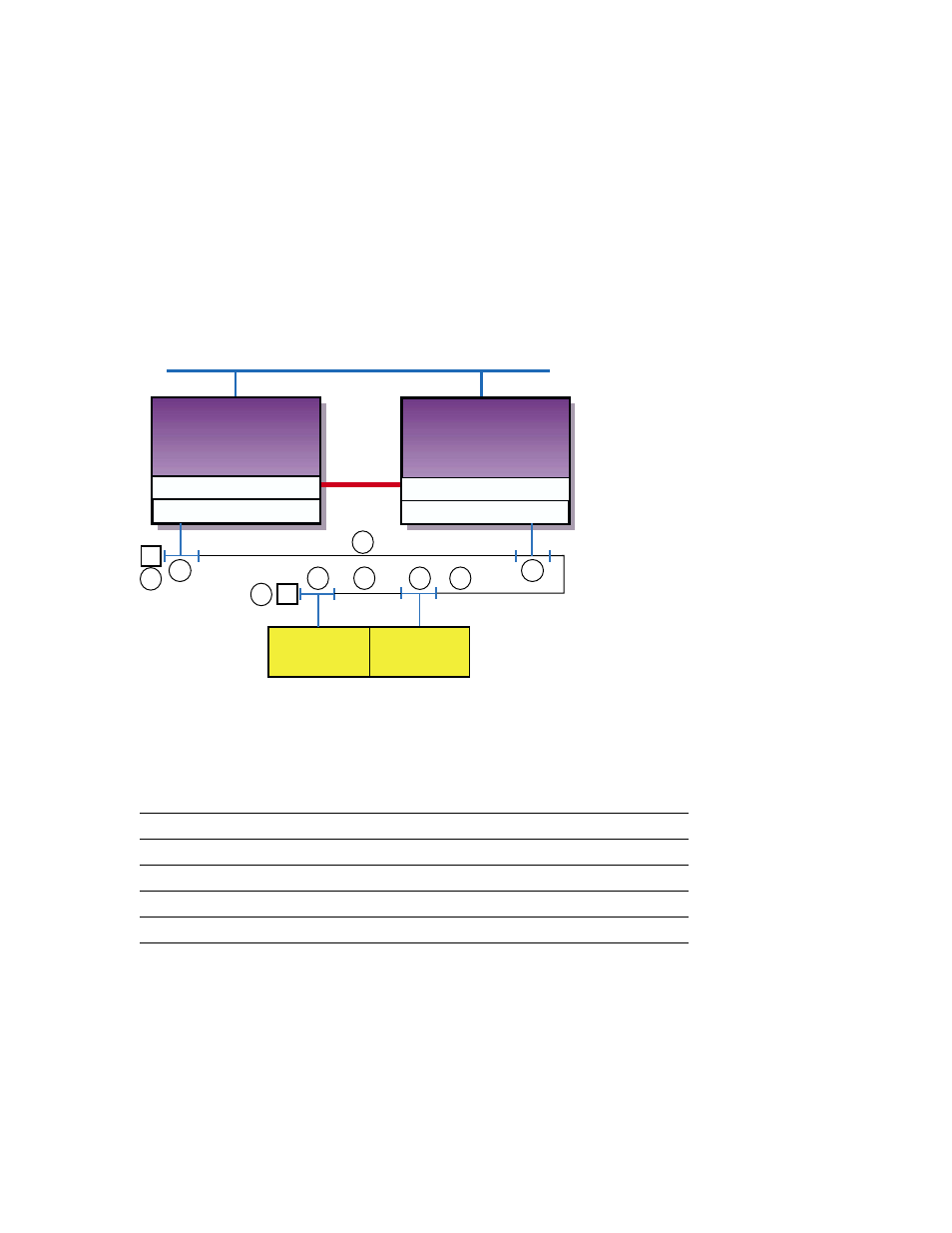

Figure 9–13: Externally Terminated Shared SCSI Bus with HSZ50 RAID
Array Controllers at Bus End
KZPSA-BB (ID 7)
Network
Memory
Channel
Interface
Memory Channel
KZPSA-BB (ID 6)
Memory Channel
Member
System
2 Member
System
1
2
1 1
2 T
T
3
4 3 3 4
HSZ50
Controller A Controller B
HSZ50
ZK-1597U-AI
Table 9–3 shows the components used to create the cluster shown in
Figure 9–12 and Figure 9–13.
Table 9–3: Hardware Components Used for Configuration Shown in Figure
8–12 and Figure 8–13
Callout Number Description
1 BN21W-0B Y cable
2 H879-AA terminator
3 BN21K (or BN21L) cable a b
4 H885-AA trilink connector
a The maximum combined length of the BN21K (or BN21L) cables must not exceed 25 meters.
b The cable between the H885-AA trilink connectors on the HSZ50s could be a BN21L-0B, a 0.15-meter cable.
