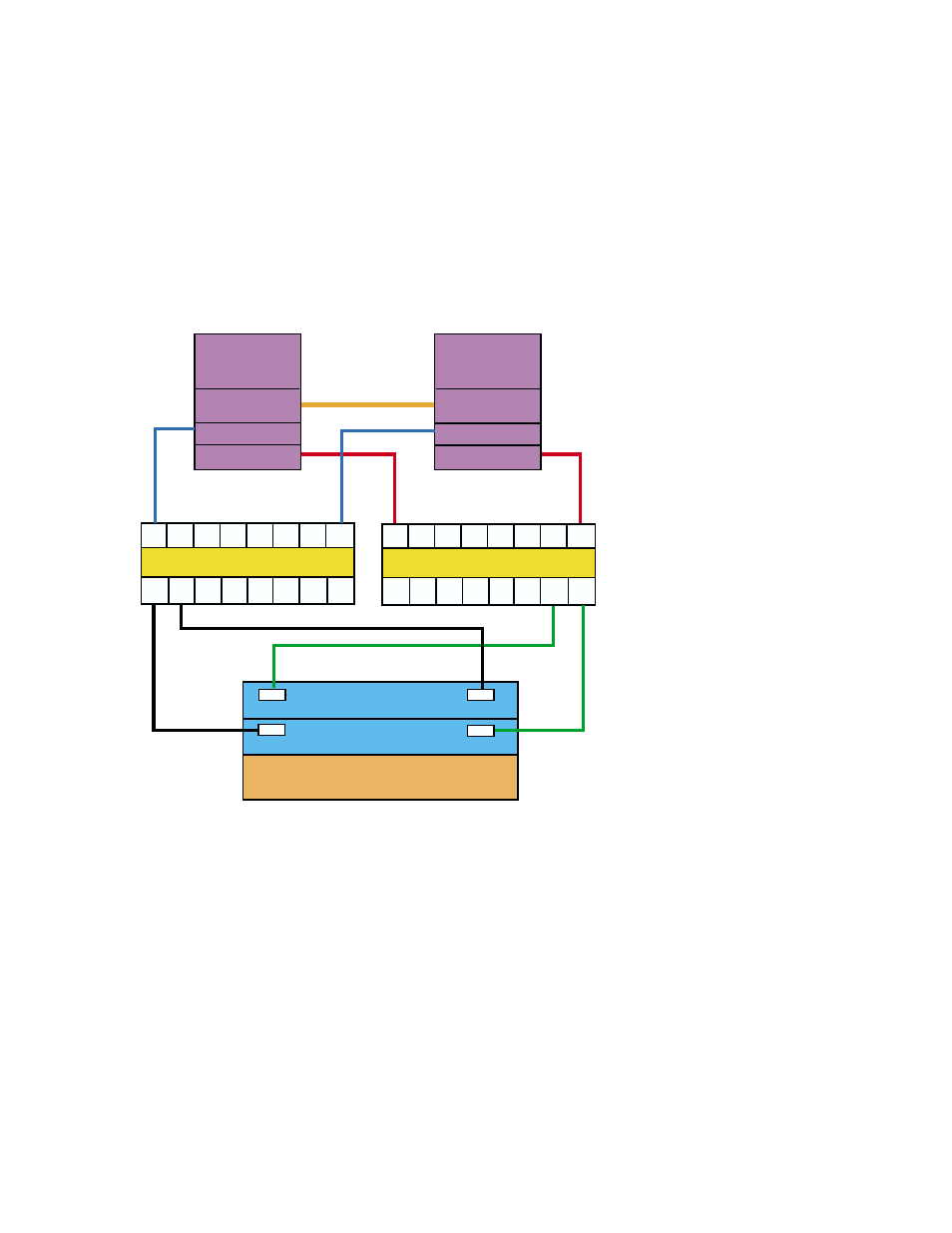

Figure 6–7: Multiple-Bus NSPOF Configuration Number 3
KGPSA
Member
System
2
KGPSA
KGPSA
Member
System
1
KGPSA
Memory
Channel
Memory
Channel
Memory Channel
Interface
ZK-1765U-AI
Fibre Channel Switch Fibre Channel Switch
HSG 80
Controller A
HSG 80
Controller B
RA8000/ESA12000
Port 1 Port 2
Port 1 Port 2
6.4 Zoning and Cascaded Switches
This section provides a brief overview of zoning and cascaded switches.
6.4.1 Zoning
A zone is a logical subset of the Fibre Channel devices connected to the
fabric. Zoning allows partitioning of resources for management and access
control. In some configurations, it may provide for more efficient use of
hardware resources by allowing one switch to serve multiple clusters or even
multiple operating systems.
Figure 6–8 provides an example configuration using zoning. This
configuration consists of two independent zones with each zone containing
an independent cluster.
6–14 Using Fibre Channel Storage
