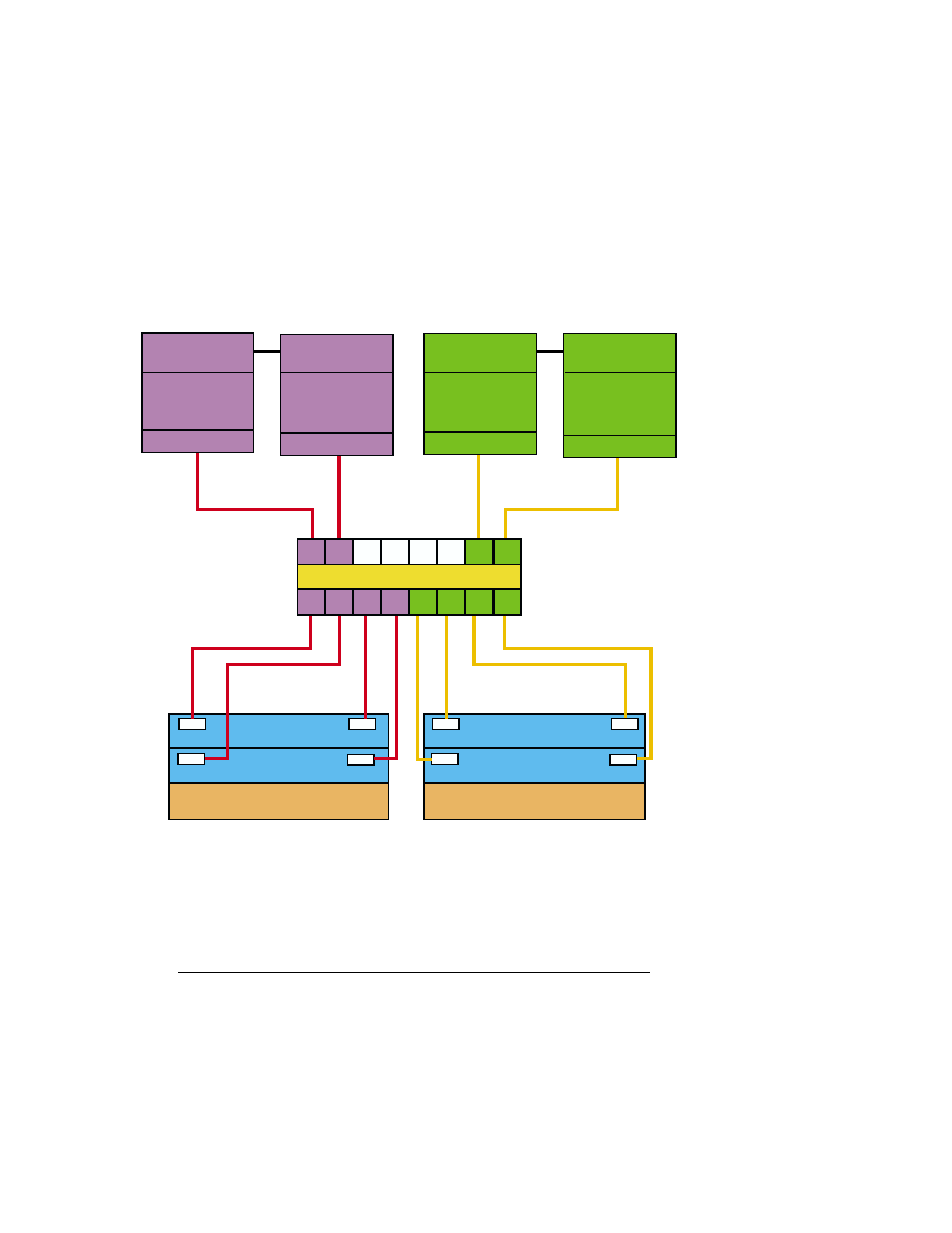

Figure 6–8: A Simple Zoned Configuration
KGPSA
Memory
Channel
KGPSA KGPSA KGPSA
Fibre Channel Switch
Cluster 1
Member
System 1 Cluster 1
Member
System 2 Cluster 2
Member
System 2 Cluster 2
Member
System 1
0 2 4 6 8 10 12 14
ZK-1709U-AI
Memory
Channel Memory
Channel Memory
Channel
HSG 80
Controller A
HSG 80
Controller B
RA8000/ESA12000
Port 1
Port 1
Port 2
Port 2
HSG 80
Controller A
HSG 80
Controller B
RA8000/ESA12000
Port 1
Port 1
Port 2
Port 2
1 3 5 7 9 11 13 15
______________________ Note _______________________
Only static zoning is supported; zones can only be changed when
all connected systems are shut down.
For information on setting up zoning, refer to the SAN Switch Zoning
documentation that is provided with the switch.
6.4.2 Cascaded Switches
Multiple switches may be connected to each other. When cascading switches,
a maximum of three switches is supported, with a maximum of two hops
between switches. The maximum hop length is 10 km longwave single-mode
or 500 meters shortwave multimode Fibre Channel cable.
Using Fibre Channel Storage 6–15
