1BChapter 2: Installation
12 TruVision DVR 11 User Manual
Table 3: UTC PTZ protocol settings
Dome: RS-422 protocol TVR 11: Interlogix RS-485
See Table 5 below for the bus addresses to consider when connecting a both
keypad and dome camera to the DVR.
Table 4: Bus addresses
DVR bus address DVR video inputs PTZ address range
1 1-32 00-31
2 1-32 32-63
3 1-32 64-95
4 1-32 96-127
5 1-32 128-159
6 1-32 160-191
7 1-32 192-223
8 1-32 224-255
Brackets
The DVR is easily rack-mountable. It has a 1.5U chassis.
See Figure 6 below.

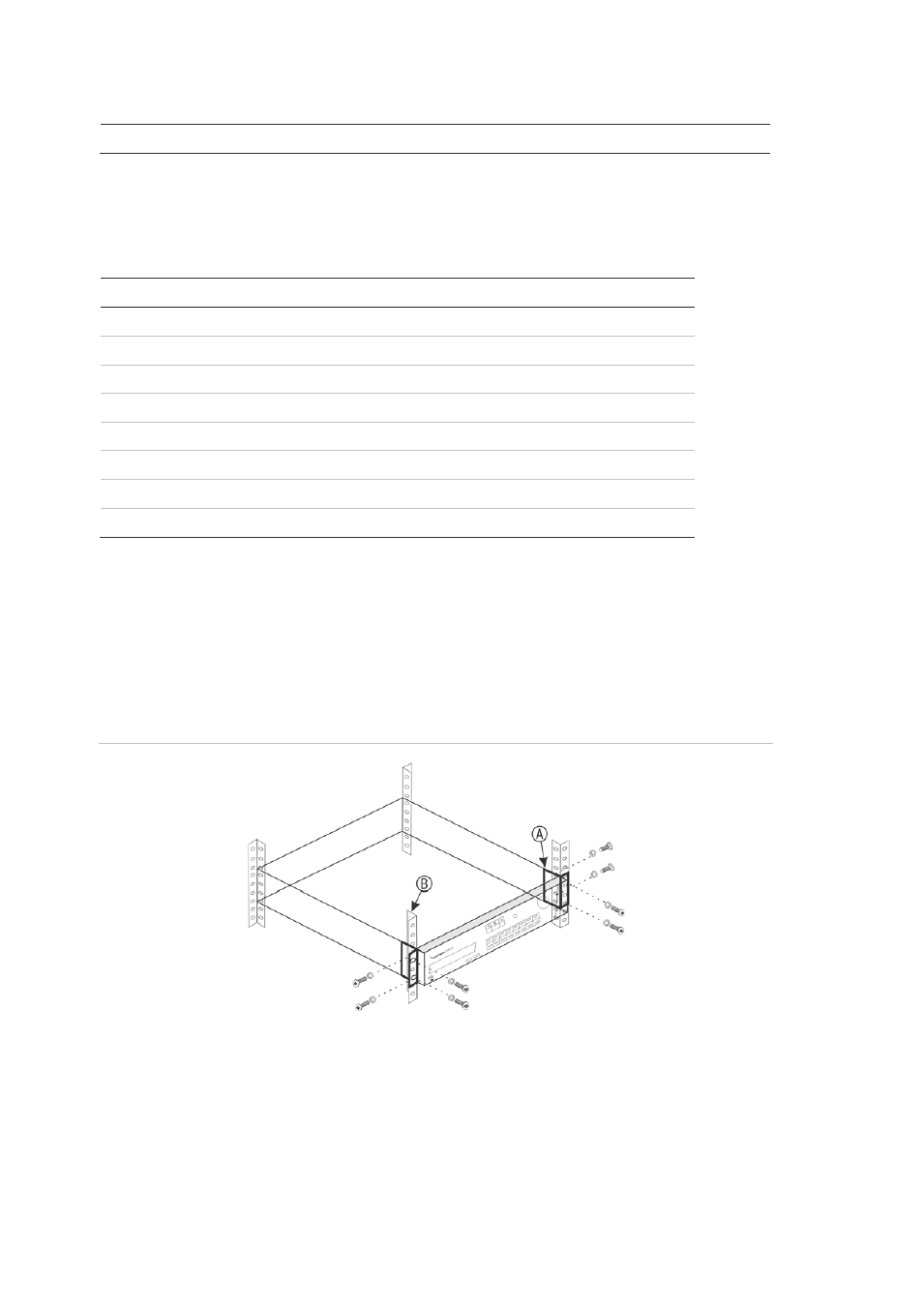

Figure 5: Rack-mount installation
To install the racks:
1. Attach the two small front-rack mount ears (A) to the DVR (supplied).
2. Attach the DVR to the front rails (B) (screws not supplied).
