Appendix C: Using the web browser
118 TruVision DVR 11 User Manual
Controlling a PTZ dome camera in the web
browser
The web browser interface lets you control the PTZ functions of a dome camera.
Click a PTZ dome camera and use the PTZ controls on the interface to control
the PTZ functions.

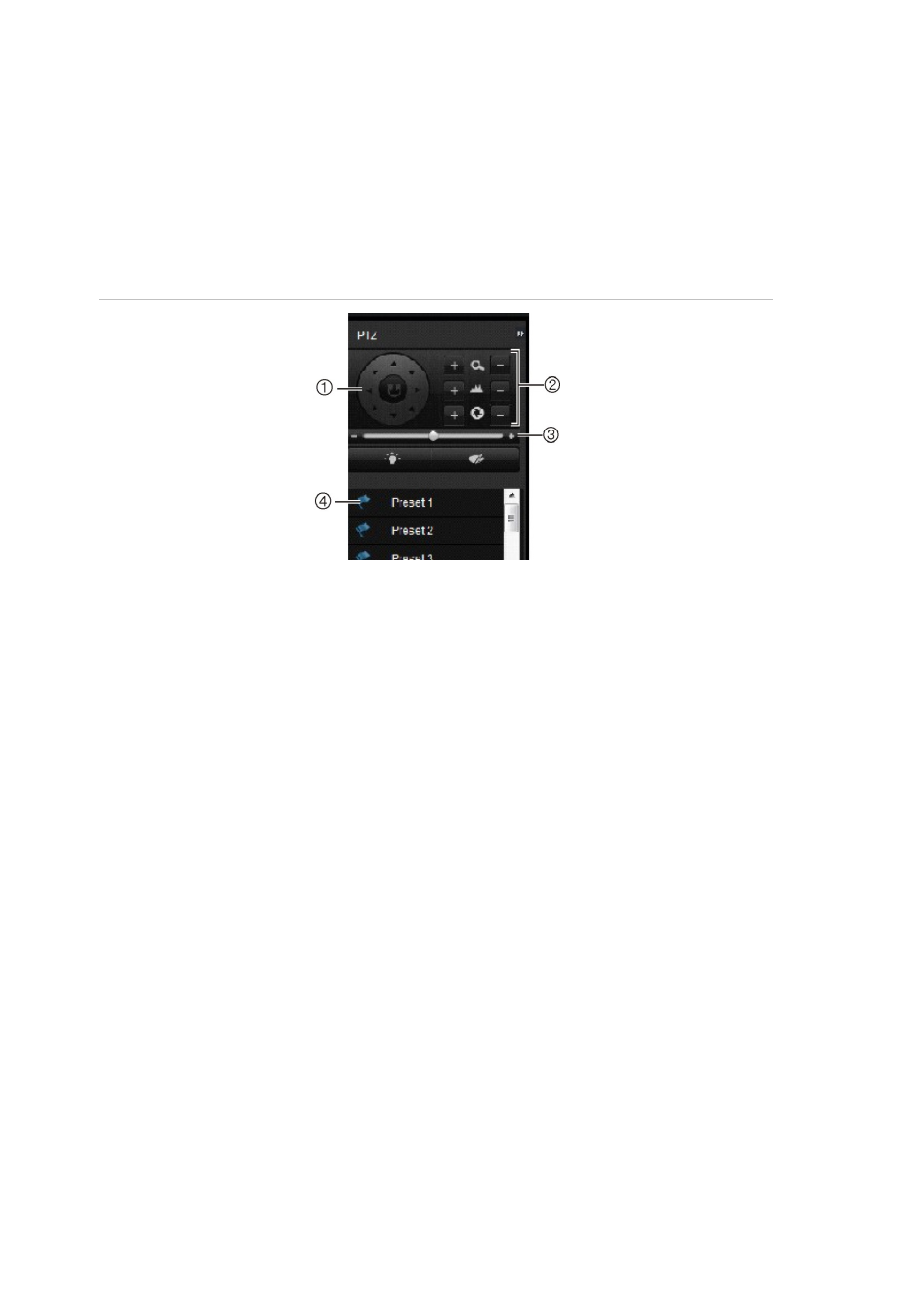

Figure 33: PTZ controls
1. Directional pad/auto-scan buttons: Controls the movement and direction of the PTZ camera.
Center button is used to start auto-pan by the PTZ dome camera.
2. Adjusts the zoom, focus, and iris functions.
3. Adjusts the speed of PTZ dome camera.
4. Starts the selected preset.
Capturing text insertions
Text insertion lets you insert or display text from a point-of-sale (POS) system on
the video display of the DVR. The text is saved and time
‐stamped together with
the video. You can then search the text for specific video clips. The text is
displayed during playback.
The DVR supports POS and ATM text insertion via the UTC ProBridge accessory
connected to the RS-232 port on the DVR. This feature is currently only available
using the browser.
Playback from the camera set up for text insertion will display the video with the
POS text overlay. However, in live mode text insertion is for reference only as not
all the inserted text may be visible on-screen.
See Figure 36 below for an example of a video image in live view with text
insertion.
