1BChapter 2: Installation

TruVision DVR 11 User Manual

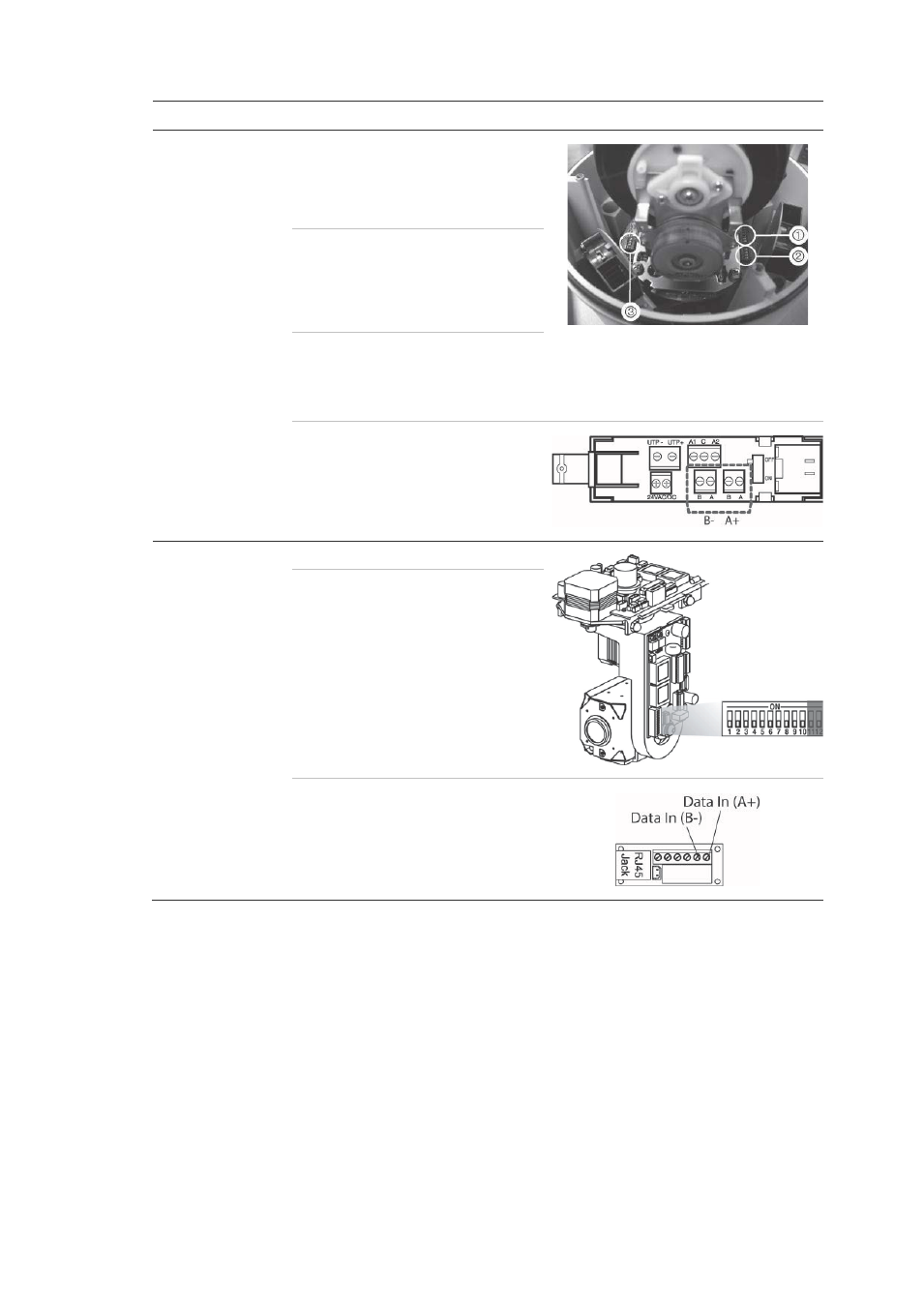

Camera

Switch setting

TruVision Dome
16X PTZ

Protocol switches:
• RS-485 (on DVR):

0111

1. Address switches; 2. Baud switches;

3. Protocol switches

• RS-422 (on I/O

box):

1111

Address switches:

Select the
camera ID
DIP switch
address as
required.

Baud rate:

0000 =
9600 bps

0011 =
4800 bps

RS-422/RS-485 data connector:

CyberDome

Protocol switches:

Address switches:

Select the
camera ID
DIP switch
address as
required.

RS-485 data connector:
