Appendix D: KTD-405 keypad
128 TruVision DVR 11 User Manual

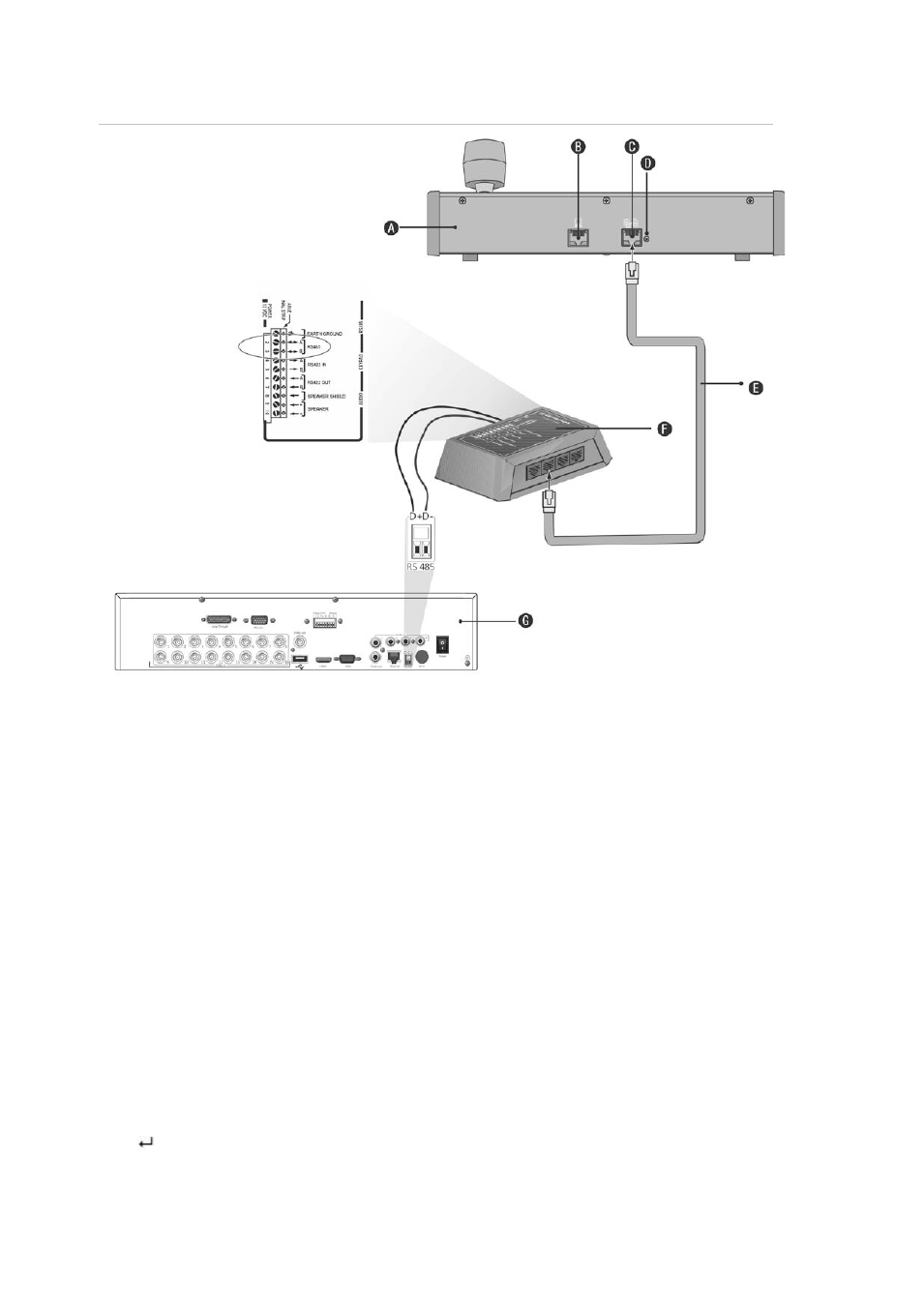

Figure 35: Keypad and DVR connections
A. KTD-405 keypad
B. RS-232 programming port
C. RS-485 and RS-422 in/out
D. RS-485 termination switch
E. RJ45 cable control (use the cable provided
with the equipment)
F. I/O box
G. DVR back panel
See “Connecting a KTD-405 keypad and dome camera to the ”on page 11 for
information on how to connect both a keypad and dome camera to the DVR.
Setting the keypad to work with the DVR
The keypad must be in zone mode to connect correctly with the DVR.
Further information on connecting and programming the KTD-405 keypad can be
found in the user manual.
To set the keypad in zone mode:
1. Log into the keypad using the Admin password. Hold down the Enter button
( ) until a beep sounds and then enter the following code: 1 4 7 6. Push
the seq button to confirm.
