1BChapter 2: Installation
8 TruVision DVR 11 User Manual

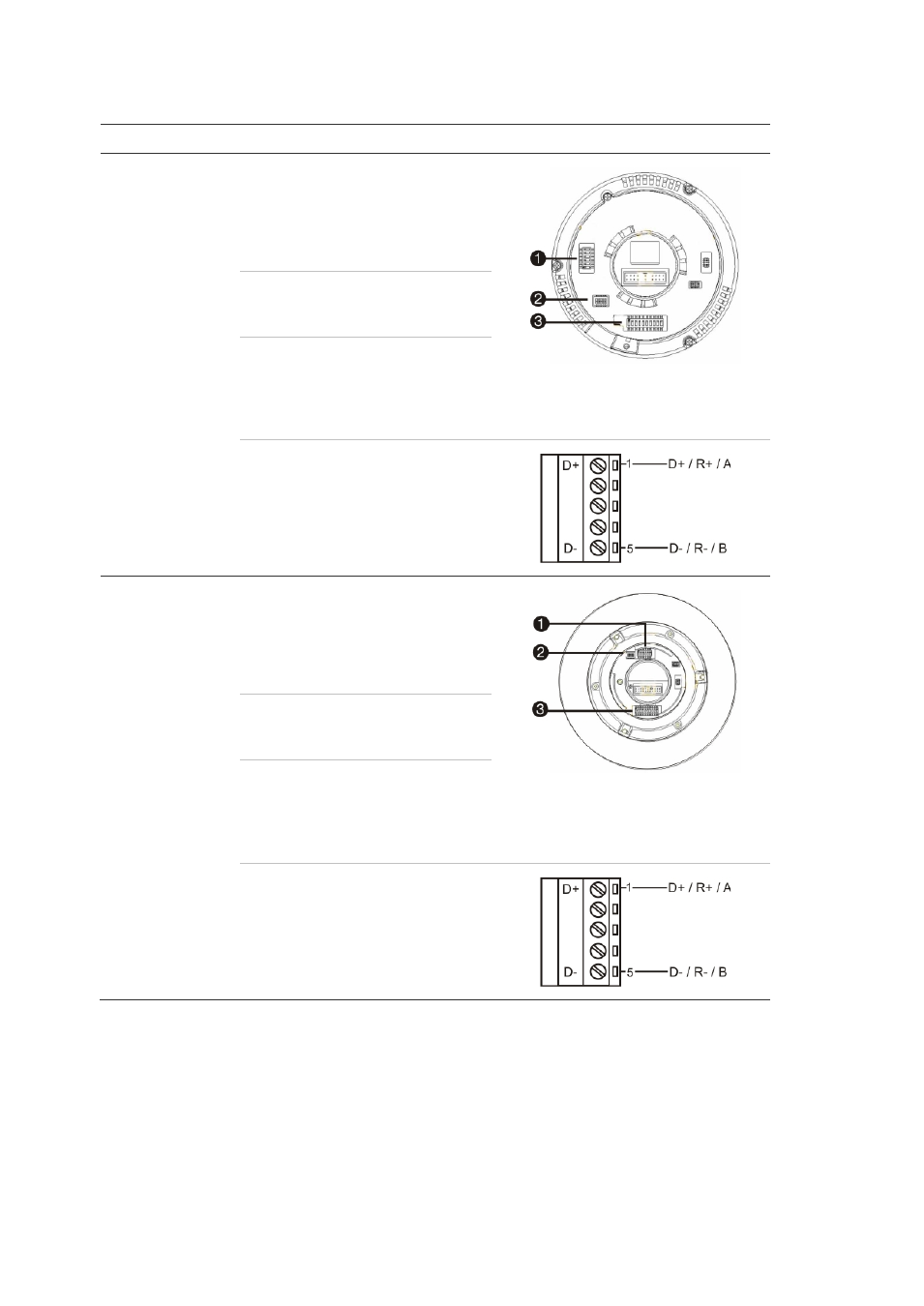

Table 2: PTZ protocols for Interlogix cameras
Camera Switch setting
TruVision Mini PTZ
12X: Indoor Dome Protocol DIP
switches:
• RS-485 (on DVR): 000000
1. Protocol DIP switches
2. RS-485 communication DIP switches
3. Camera ID DIP switches
• RS-422 (on I/O
box):
100000
RS-485
communication DIP
switches: 110000
Camera ID DIP
switches: Select the
camera ID
DIP switch
address as
required
RS-422/RS-485 data connector:
TruVision Mini PTZ
12X: Outdoor
Dome Protocol DIP
switches:
• RS-485 (on DVR): 000000
1. Protocol DIP switches
2. RS-485 communication DIP switches
3. Camera ID DIP switches
• RS-422 (on I/O
box):
100000
RS-485
communication DIP
switches: 110000
Camera ID DIP
switches: Select the
camera ID
DIP switch
address as
required.
RS-422/RS-485 data connector:
