26
English
9 Measure
9.2 Organizer
An organizer file defines a test
sequence for user guidance, e. g. for
measuring a car body with several
checkzones. These files can be
generated with the auto-chart
software.
If no Organizer is loaded in the device,
one must be transferred from a PC.

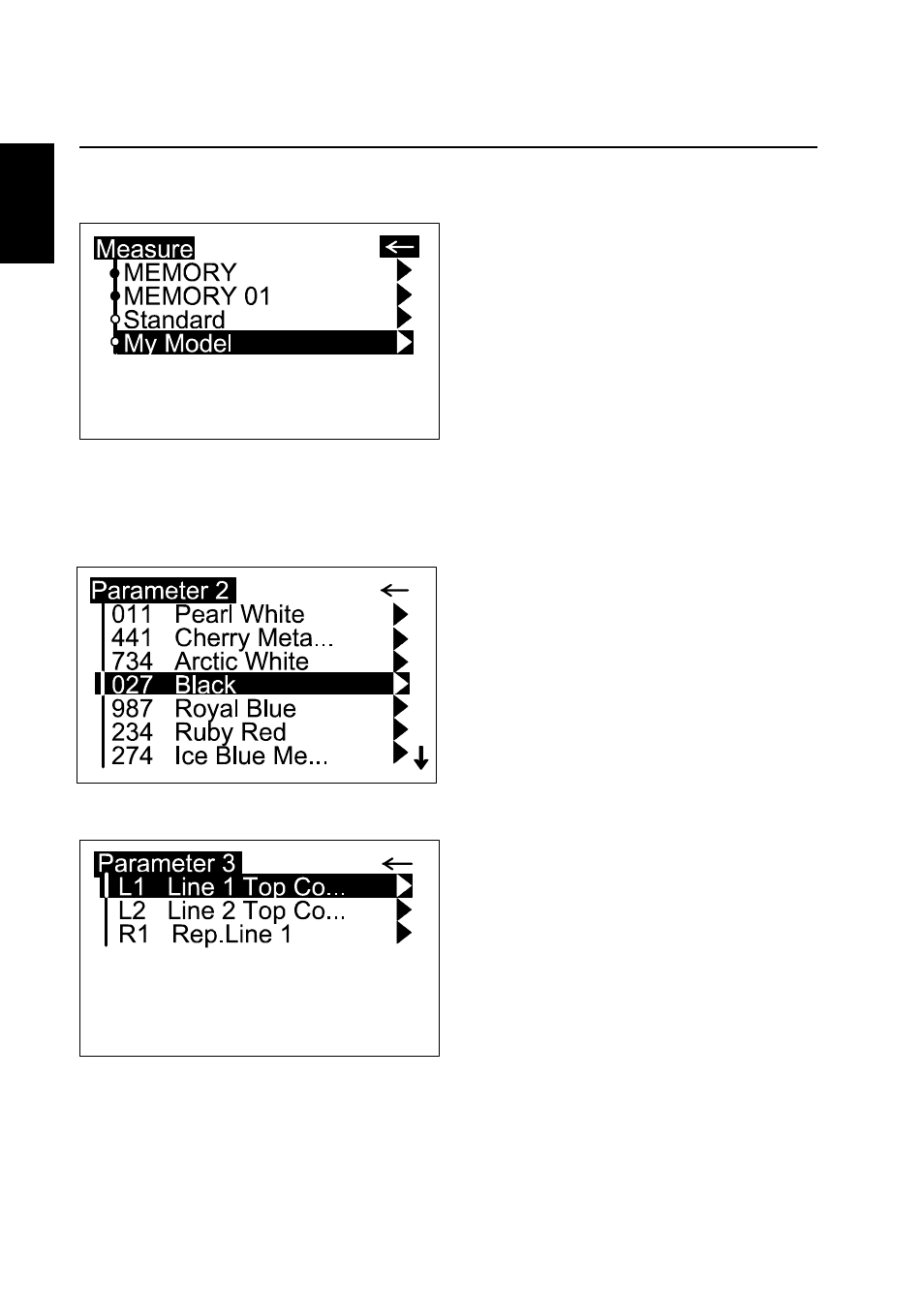

Once an Organizer is selected, a menu
appears for Parameter 2 of the
Organizer. Colors are listed as an
example of this in the menu to the
side. After you have selected the
appropriate color, a selection menu
appears for Parameter 3.
The illustrated example features
automotive paint lines.
If “Input Comment” is activated in the
Organizer, you are prompted to enter
additional information.
If “Input ID” is activated in the
Organizer, you are prompted to enter
a code, e.g. the vehicle ID.
Upon definition of all parameters, the
following measurement series is
identified and the instrument goes into
measurement mode.
